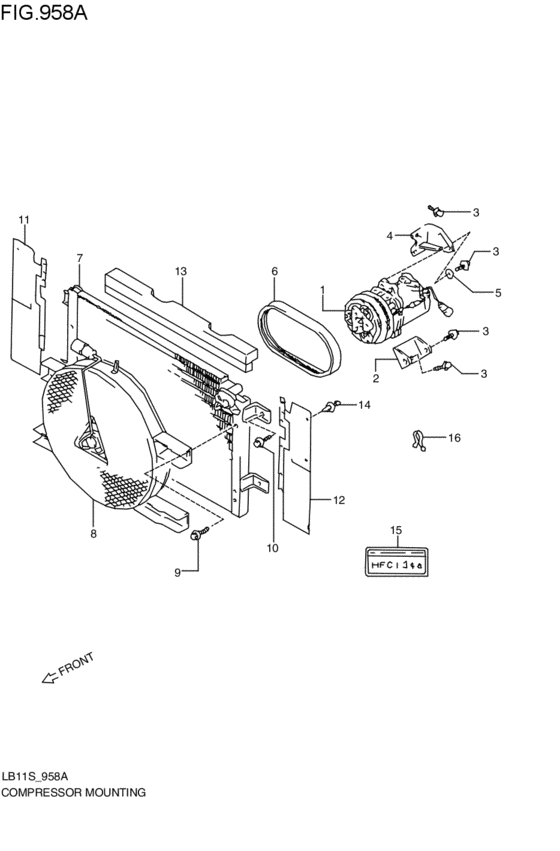

コンプレッサマウンチング (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95200-70CB1-000
コンプレッサアッシ
1995-10-01~ |
95200-70CB1-000 |
— | ||
| replacements | |||||
|
1
|
1
95200-70CG1-000 COMPRESSOR ASSY1995-10-01~ |
95200-70CG1-000 |
US $1,248 |
||
|
1
|
1
95533-70C00-000 HARNESS,COMPRESSOR JOINT1995-10-01~ |
95533-70C00-000 |
US $15.20 |
||
|
2
|
2
95130-57B10-000
BRACKET,CPRSR POWER STRG
1995-10-01~ |
95130-57B10-000 |
— | ||
|
3
|
3
01550-08203-000
Bolt
1995-10-01~ |
01550-08203-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0820B-000 Bolt1995-10-01~ |
01550-0820B-000 |
from US $0.91 |
||
|
3
|
3
01550-0820A-000 BOLTBolt, funnel bracket 1995-10-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
4
|
4
95120-57B00-000 STAY,COMPRESSOR1995-10-01~ |
95120-57B00-000 |
US $48.21 |
||
|
5
|
5
09160-08501-000 WASHER(8.5X24X2.3)Washer 1995-10-01~ |
09160-08501-000 |
from US $1.60 |
||
|
6
|
6
17521-52E00-000 V-BELT, 4PK9501995-10-01~ |
17521-52E00-000 |
US $44.84 |
||
|
7
|
7
95310-79E50-000
C0ndenser assy
DENSO; 1995-10-01~ |
95310-79E50-000 |
— | ||
|
8
|
8
95560-79E50-000
FAN ASSY
DENSO; 1995-10-01~ |
95560-79E50-000 |
— | ||
|
9
|
9
01570-06123-000
Bolt
1995-10-01~ |
01570-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
01570-0612B-000 BOLTBolt, upper 1995-10-01~ |
01570-0612B-000 |
US $0.80 |
||
|
9
|
9
01570-0612A-000 BOLTBolt 1995-10-01~ |
01570-0612A-000 |
from US $0.80 |
||
|
10
|
10
01550-06123-000
Bolt
1995-10-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BOLTBolt, clamp 1995-10-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 BOLT1995-10-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
95821-79E00-000
インシュレータ,ライト
DENSO; 1995-10-01~ |
95821-79E00-000 |
— | ||
|
12
|
12
95822-79E00-000
インシュレータ,レフト
DENSO; 1995-10-01~ |
95822-79E00-000 |
— | ||
|
13
|
13
95364-60A02-000
INSULATOR,RADIATOR UPR
DENSO; 1995-10-01~ |
95364-60A02-000 |
— | ||
|
14
|
14
09409-07022-000 CLIP1995-10-01~ |
09409-07022-000 |
US $1.60 |
||
|
15
|
15
95955-72B00-000 LABEL,REFRIGERANT1995-10-01~ |
95955-72B00-000 |
US $1.60 |
||
|
16
|
16
09408-00020-000 CLIPClamp, lead wire 1995-10-01~ |
09408-00020-000 |
US $9.90 |
||
