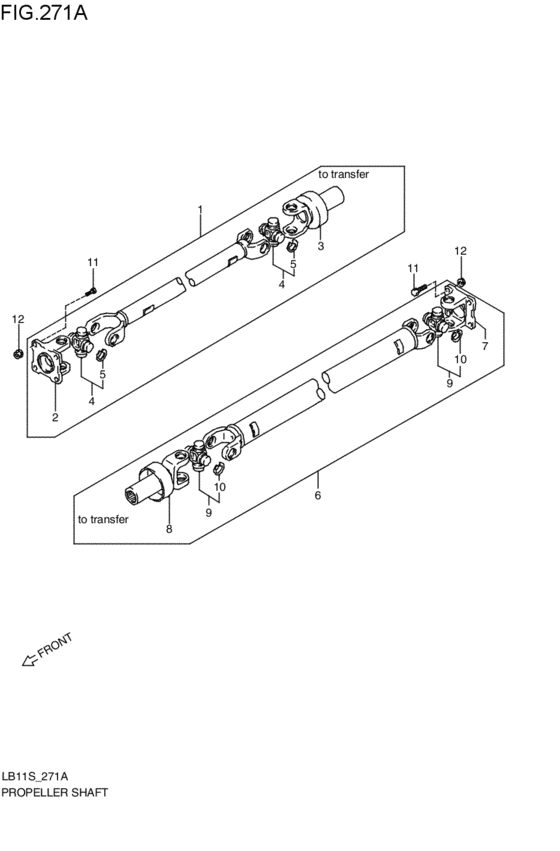

propeller shaft (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-57B01-000 SHAFT ASSY,PROPELLER FRONT4AT; 1995-10-01~ |
27101-57B01-000 |
US $418.88 |
||
|
2
|
2
27131-56B00-000 YOKE,CROSS JOINT FLANGE1995-10-01~ |
27131-56B00-000 |
US $55.94 |
||
|
3
|
3
27140-60A00-000 YOKE,SLIDING1995-10-01~ |
27140-60A00-000 |
US $174.80 |
||
|
4
|
4
27200-83812-000
JOINT SET,UNIVERSAL
1995-10-01~ |
27200-83812-000 |
— | ||
| replacement | |||||
|
4
|
4
27200-83813-000 Joint Set,universal1995-10-01~ |
27200-83813-000 |
US $57.60 |
||
|
5
|
5
51118-36213-000 RING,SNAP1995-10-01~ |
51118-36213-000 |
from US $2.24 |
||
|
6
|
6
27102-57B30-000
SHAFT ASSY,PROPELLER REAR
4AT; 1995-10-01~ |
27102-57B30-000 |
— | ||
|
7
|
7
27131-56B00-000 YOKE,CROSS JOINT FLANGE1995-10-01~ |
27131-56B00-000 |
US $55.94 |
||
|
8
|
8
27140-60A00-000 YOKE,SLIDING4AT; 1995-10-01~ |
27140-60A00-000 |
US $174.80 |
||
|
9
|
9
27200-83812-000
JOINT SET,UNIVERSAL
1995-10-01~ |
27200-83812-000 |
— | ||
| replacement | |||||
|
9
|
9
27200-83813-000 Joint Set,universal1995-10-01~ |
27200-83813-000 |
US $57.60 |
||
|
10
|
10
51118-36213-000 RING,SNAP1995-10-01~ |
51118-36213-000 |
from US $2.24 |
||
|
11
|
11
01500-10303-000
Bolt
1995-10-01~ |
01500-10303-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-1030A-000 BOLT1995-10-01~ |
01500-1030A-000 |
from US $0.96 |
||
|
12
|
12
09159-10091-000 NUT1995-10-01~ |
09159-10091-000 |
US $2.88 |
||
