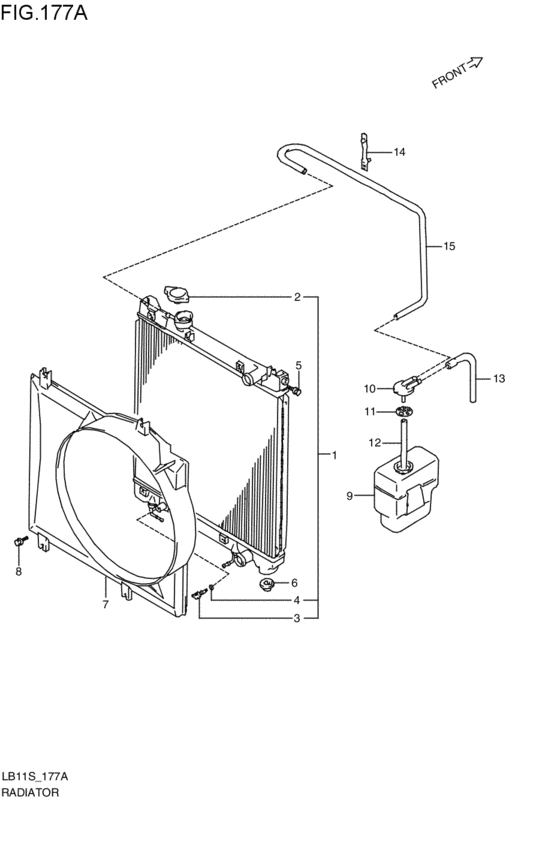

radiator (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-60A12-000 RADIATOR ASSY1995-10-01~ |
17700-60A12-000 |
US $774.40 |
||
|
2
|
2
17920-66F01-000 CAP,RADIATOR 1.11995-10-01~ |
17920-66F01-000 |
from US $22.55 |
||
|
3
|
3
17751-61A00-000 PLUG,DRAIN1995-10-01~ |
17751-61A00-000 |
US $4.32 |
||
|
4
|
4
17759-72010-000 O-RING1995-10-01~ |
17759-72010-000 |
US $1.52 |
||
|
5
|
5
02162-06253-000
Bolt
1995-10-01~ |
02162-06253-000 |
— | ||
| replacement | |||||
|
5
|
5
02162-0625A-000 SCREW1995-10-01~ |
02162-0625A-000 |
from US $0.76 |
||
|
6
|
6
17812-82000-000 BUSHING,RADIATOR SUPPORT1995-10-01~ |
17812-82000-000 |
from US $1.80 |
||
|
7
|
7
17761-60A01-000
SHROUD,FAN
1995-10-01~ |
17761-60A01-000 |
— | ||
|
8
|
8
02162-06123-000
Bolt (6x12)
1995-10-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt 1995-10-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket 1995-10-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
17931-58B00-000 TANK,WATER RESERVE1995-10-01~ |
17931-58B00-000 |
US $60.80 |
||
|
10
|
10
17932-60G00-000
キャップ,ウォータリザーブタンク
1995-10-01~ |
17932-60G00-000 |
— | ||
| replacement | |||||
|
10
|
10
17932-60G10-000 CAP,WATER RESERVE TANK1995-10-01~ |
17932-60G10-000 |
US $6.08 |
||
|
11
|
11
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap 1995-10-01~ |
17933-60B00-000 |
from US $1.85 |
||
|
12
|
12
09352-70111-600 HOSE(7X11X600)L:600>150; 1995-10-01~ |
09352-70111-600 |
from US $6.84 |
||
|
13
|
13
17938-58B00-000
ホース,リザーブタンクベントパイプ
1995-10-01~ |
17938-58B00-000 |
— | ||
| replacement | |||||
|
13
|
13
17938-58B20-000 HOSE,RESERVE TANK VENT PIPE1995-10-01~ |
17938-58B20-000 |
US $11.92 |
||
|
14
|
14
09407-05406-000 CLAMP(L:118)1995-10-01~ |
09407-05406-000 |
from US $1.06 |
||
|
15
|
15
17939-58B00-000 HOSE,RDTR TO RSV TANK1995-10-01~ |
17939-58B00-000 |
US $56 |
||
