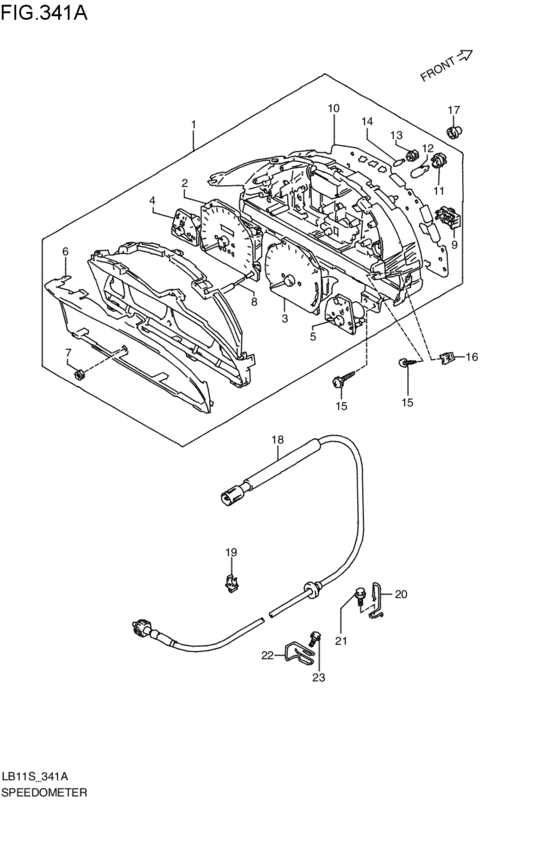

speed meter (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34101-78ED0-000
スピードメータアッシ,コンビネーション
1995-10-01~ |
34101-78ED0-000 |
— | ||
|
2
|
2
34120-79E00-000
ボディアッシ,スピードメータ
1995-10-01~ |
34120-79E00-000 |
— | ||
|
3
|
3
34220-79E00-000
BODY ASSY,TACHOMETER
1995-10-01~ |
34220-79E00-000 |
— | ||
|
4
|
4
34320-77E70-000 BODY ASSY,FUEL METER1995-10-01~ |
34320-77E70-000 |
US $83.54 |
||
|
5
|
5
34420-67E20-000 BODY ASSY,TEMP METER1995-10-01~ |
34420-67E20-000 |
US $83.54 |
||
|
6
|
6
34112-67E20-000 GLASS,METER WINDOW1995-10-01~ |
34112-67E20-000 |
US $33.44 |
||
|
7
|
7
34145-60B00-000 GROMMET1995-10-01~ |
34145-60B00-000 |
US $2.13 |
||
|
8
|
8
34141-60E10-000 KNOB,TRIP METER1995-10-01~ |
34141-60E10-000 |
US $6.59 |
||
|
9
|
9
34155-50E10-000 CIRCUIT,ABS WARNING1995-10-01~ |
34155-50E10-000 |
US $40.48 |
||
|
10
|
10
34152-77E00-000
プレート,プリンテッド
1995-10-01~ |
34152-77E00-000 |
— | ||
|
11
|
11
34172-50E10-000 SOCKET1995-10-01~ |
34172-50E10-000 |
US $1.60 |
||
|
12
|
12
09471-12131-000 BULB(12V3.4W G20)1995-10-01~ |
09471-12131-000 |
US $40.50 |
||
|
13
|
13
34175-78900-000 SOCKET1995-10-01~ |
34175-78900-000 |
US $1.52 |
||
|
14
|
14
09471-12055-000 BULB(14V1.4W,T5)1995-10-01~ |
09471-12055-000 |
from US $2.40 |
||
|
15
|
15
03541-05203-000
Screw
1995-10-01~ |
03541-05203-000 |
— | ||
| replacement | |||||
|
15
|
15
03541-0520A-000 SCREW1995-10-01~ |
03541-0520A-000 |
from US $0.76 |
||
|
16
|
16
09148-05038-000 NUTNut, inner 1995-10-01~ |
09148-05038-000 |
from US $0.91 |
||
|
17
|
17
34955-60E00-000 BUSH1995-10-01~ |
34955-60E00-000 |
US $2.40 |
||
|
18
|
18
34910-61A30-000 CABLE ASSY,SPEEDOMETER4AT; 1995-10-01~ |
34910-61A30-000 |
US $105.62 |
||
|
19
|
19
09403-07306-000 CLAMPClamp 1995-10-01~ |
09403-07306-000 |
from US $2.56 |
||
|
22
|
22
34926-57B20-000
CLAMP,SPDOM CABLE
4AT; 1995-10-01~ |
34926-57B20-000 |
— | ||
|
23
|
23
02162-06103-000
Bolt
4AT; 1995-10-01~ |
02162-06103-000 |
— | ||
| replacement | |||||
|
23
|
23
02162-0610A-000 SCREW4AT; 1995-10-01~ |
02162-0610A-000 |
from US $0.64 |
||
