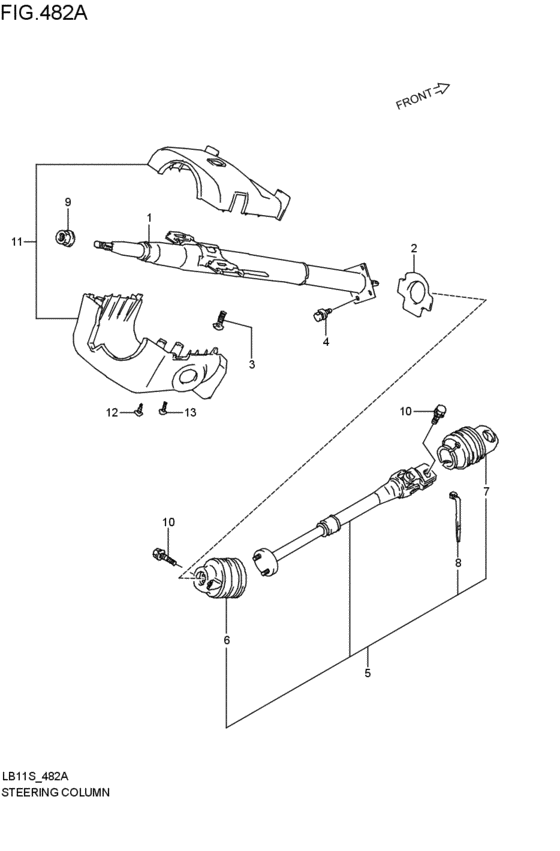

steering column (1995-10-01~) Diagram Suzuki X90
- Year
- 1995 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- 4AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-79E00-000
コラムアッシ,ステアリング
1995-10-01~ |
48200-79E00-000 |
— | ||
|
2
|
2
48491-77E00-000 SEAL,STRG COLUMN LOWER1995-10-01~ |
48491-77E00-000 |
US $7.76 |
||
|
3
|
3
09139-08015-000 SCREW(8X30)1995-10-01~ |
09139-08015-000 |
US $1.92 |
||
|
4
|
4
01570-08203-000
Bolt
1995-10-01~ |
01570-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01570-0820B-000 Bolt1995-10-01~ |
01570-0820B-000 |
US $17.30 |
||
|
4
|
4
01570-0820A-000 BOLT1995-10-01~ |
01570-0820A-000 |
from US $0.96 |
||
|
5
|
5
48220-77E10-000 SHAFT ASSY,STEERING LOWER1995-10-01~ |
48220-77E10-000 |
US $482.24 |
||
|
6
|
6
48225-56B50-000 BOOT SET,JOINT UPPER1995-10-01~ |
48225-56B50-000 |
US $32 |
||
|
7
|
7
48228-60A00-000 BOOT,JOINT LOWER1995-10-01~ |
48228-60A00-000 |
US $19.20 |
||
|
8
|
8
48229-60A00-000 STRAP,BOOT1995-10-01~ |
48229-60A00-000 |
US $2.40 |
||
|
9
|
9
09159-12025-000 NUT1995-10-01~ |
09159-12025-000 |
US $1.82 |
||
|
10
|
10
09117-08068-000 BOLT(8X30)1995-10-01~ |
09117-08068-000 |
US $17.30 |
||
|
11
|
11
48400-77E00-5ES
カバーセット,ステアリングコラム(ブラック)
ブラック; 1995-10-01~ |
48400-77E00-5ES |
— | ||
| replacement | |||||
|
11
|
11
48400-77E10-5ES
COVER ASSY,STRG COLUMN
ブラック; 1995-10-01~ |
48400-77E10-5ES |
— | ||
|
12
|
12
03211-05123-000
Screw
1995-10-01~ |
03211-05123-000 |
— | ||
| replacement | |||||
|
12
|
12
03211-0512A-000 SCREW1995-10-01~ |
03211-0512A-000 |
US $0.80 |
||
|
13
|
13
09136-05030-000 SCREW(5X12)1995-10-01~ |
09136-05030-000 |
US $0.96 |
||
