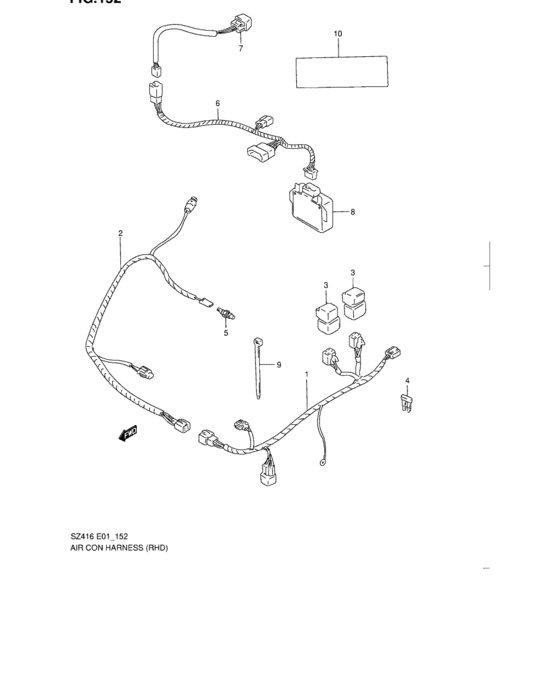

Air con harness (RHD) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95531-59B00-000 HARNESS,ENG ROOM NO.1 |
95531-59B00-000 |
US $82.43 |
||
|
2
|
2
95533-59B00-000 HARNESS,ENG ROOM NO.2 |
95533-59B00-000 |
US $65.14 |
||
|
3
|
3
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
US $45.60 |
||
|
3
|
3
95576-73A00-000 RELAY ASSY,CLG FANTYPE 1:Australia |
95576-73A00-000 |
US $29.62 |
||
|
4
|
4
09481-25103-000 FUSE(25A) |
09481-25103-000 |
from US $2.15 |
||
|
5
|
5
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature |
34850-50A00-000 |
from US $40.80 |
||
|
5
|
5
95573-60A50-000
SWITCH,WATER TEMP
TYPE 1:Australia |
95573-60A50-000 |
— | ||
|
6
|
6
95581-60A13-000
Harness,inner
|
95581-60A13-000 |
— | ||
|
6
|
6
95581-57B20-000
Harness, inner
TYPE 1:Australia |
95581-57B20-000 |
— | ||
|
7
|
7
95571-86400-000 SWITCH,AIR CON |
95571-86400-000 |
US $50.42 |
||
|
7
|
7
95571-60A50-000
SWITCH,A/C
TYPE 1:Australia |
95571-60A50-000 |
— | ||
|
8
|
8
95575-60A11-000
CONTROLLER,A/C
TYPE 1 |
95575-60A11-000 |
— | ||
|
8
|
8
95510-78E40-000
CONTROLLER,A/C
TYPE 1:Australia |
95510-78E40-000 |
— | ||
|
8
|
8
95510-78E00-000
CONTROLLER,A/C
TYPE 2 |
95510-78E00-000 |
— | ||
|
9
|
9
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
10
|
10
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
