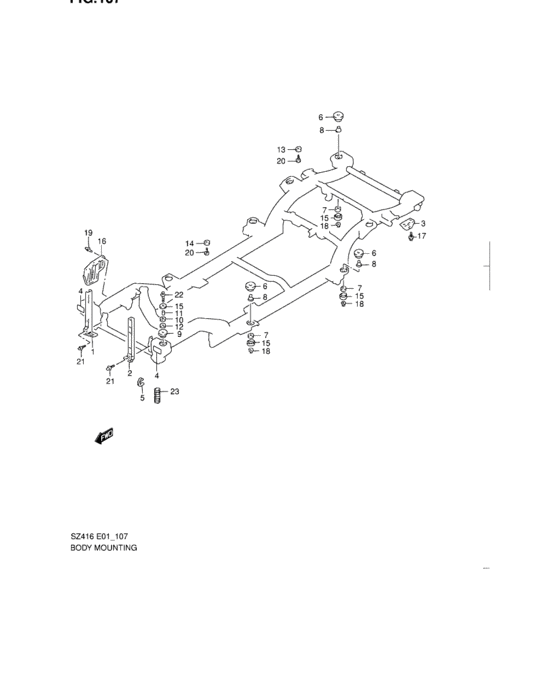

Body mounting (BODY MOUNTING) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71410-60A01-000 STAY,RADIATOR,R |
71410-60A01-000 |
US $45.26 |
||
|
2
|
2
71420-60A11-000 STAY,RADIATOR,L |
71420-60A11-000 |
US $55.20 |
||
|
3
|
3
71451-60A00-000 HOOK,SHIPPING RR |
71451-60A00-000 |
US $10.27 |
||
|
4
|
4
71481-56B00-000 PROTECTOR,FRONT BUMPER MEMBER |
71481-56B00-000 |
US $3.02 |
||
|
5
|
5
71491-79E00-000
Protector,front towing hook
TYPE 1 |
71491-79E00-000 |
— | ||
| replacement | |||||
|
5
|
5
71481-82CA0-000 PROTECTOR,REAR HOOKTYPE 1 |
71481-82CA0-000 |
US $3.02 |
||
|
6
|
6
71511-60A00-000 CUSHION,BODY MTG NO.1 |
71511-60A00-000 |
from US $17.42 |
||
|
7
|
7
71512-60A10-000 CUSHION,BODY MTG NO.2 |
71512-60A10-000 |
US $13.60 |
||
|
8
|
8
71513-60A00-000 COLLAR,BODY MOUNTING |
71513-60A00-000 |
US $2.08 |
||
|
9
|
9
71514-60A00-000 CUSHION,BODY FR MTG NO.1 |
71514-60A00-000 |
US $16.67 |
||
|
10
|
10
71515-60A00-000 CUSHION,BODY FR MTG NO.2 |
71515-60A00-000 |
US $8.83 |
||
|
11
|
11
71516-56B00-000
カラー,ボディフロントマウンチング
|
71516-56B00-000 |
— | ||
| replacement | |||||
|
11
|
11
71516-56B01-000 COLLAR,BODY FR MOUNTING |
71516-56B01-000 |
US $14.08 |
||
|
12
|
12
71517-56B02-000 SPACER,BODY FRONT MTG |
71517-56B02-000 |
US $2.29 |
||
|
13
|
13
71521-56B00-000 PAD,BODY MOUNTING |
71521-56B00-000 |
US $11.52 |
||
|
14
|
14
71521-77E00-000 PAD,BODY MOUNTING |
71521-77E00-000 |
US $7.18 |
||
|
15
|
15
71632-83010-000
ボトム,ボディマウンチング
|
71632-83010-000 |
— | ||
| replacement | |||||
|
15
|
15
71632-83011-000 BOTTOM,BODY MOUNTING |
71632-83011-000 |
US $2.24 |
||
|
16
|
16
72211-56B01-000 FLAP,FR FRAME SIDE,R |
72211-56B01-000 |
US $18 |
||
|
17
|
17
09103-12043-000 BOLT(12X20) |
09103-12043-000 |
US $1.92 |
||
|
18
|
18
09159-10060-000 NUT |
09159-10060-000 |
from US $1.28 |
||
|
19
|
19
09409-06318-000 CLIP |
09409-06318-000 |
US $12.90 |
||
|
20
|
20
09409-10302-5PK CLIP(BLACK) |
09409-10302-5PK |
US $1.28 |
||
|
21
|
21
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
21
|
21
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
21
|
21
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
22
|
22
01570-10903-000
Bolt
|
01570-10903-000 |
— | ||
| replacement | |||||
|
22
|
22
01570-1090A-000 Bolt |
01570-1090A-000 |
from US $1.94 |
||
|
23
|
23
71481-82CA0-000 PROTECTOR,REAR HOOKTYPE 2 |
71481-82CA0-000 |
US $3.02 |
||
