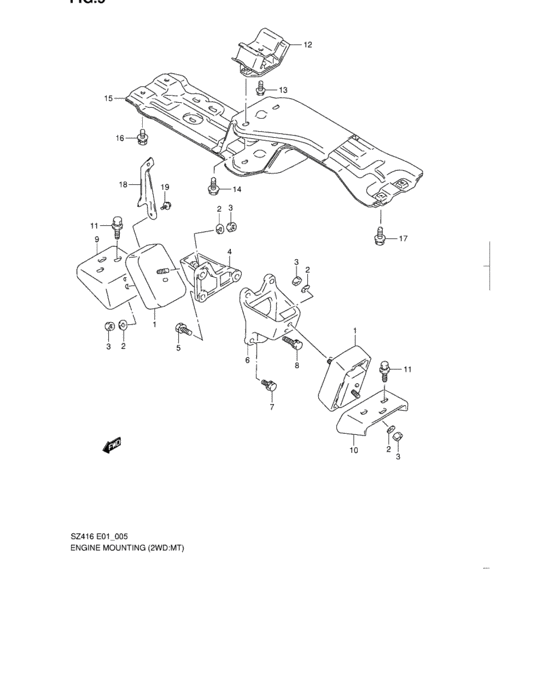

Engine mounting (2WD:MT) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-58B10-000 MOUNTING,ENG FR |
11610-58B10-000 |
US $179.20 |
||
|
2
|
2
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
2
|
2
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
2
|
2
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
3
|
3
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
3
|
3
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
3
|
3
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
4
|
4
11641-56B02-000 BRACKET,ENG FR MTG,R |
11641-56B02-000 |
US $70.29 |
||
|
5
|
5
01570-10303-000
Bolt
|
01570-10303-000 |
— | ||
| replacement | |||||
|
5
|
5
01570-1030A-000 Bolt |
01570-1030A-000 |
from US $1.12 |
||
|
6
|
6
11651-57B00-000 BRACKET,ENG FR MTG,L |
11651-57B00-000 |
US $74.34 |
||
|
7
|
7
01570-10303-000
Bolt
|
01570-10303-000 |
— | ||
| replacement | |||||
|
7
|
7
01570-1030A-000 Bolt |
01570-1030A-000 |
from US $1.12 |
||
|
8
|
8
01570-10403-000
Bolt, upper
|
01570-10403-000 |
— | ||
| replacement | |||||
|
8
|
8
01570-1040A-000 Bolt |
01570-1040A-000 |
US $1.06 |
||
|
9
|
9
11661-56B00-000 BRACKET,ENG FR MTG FRAME SIDE |
11661-56B00-000 |
US $17.22 |
||
|
10
|
10
11661-57B00-000 BRACKET,ENG FR MTG FRAME SIDE |
11661-57B00-000 |
US $18.77 |
||
|
11
|
11
09118-10070-000
Bolt,10x30
|
09118-10070-000 |
— | ||
| replacement | |||||
|
11
|
11
09118-10070-XC0 BOLT(10X30) |
09118-10070-XC0 |
US $23.60 |
||
|
12
|
12
11710-60A01-000 MOUNTING,ENG RR |
11710-60A01-000 |
US $217.60 |
||
|
13
|
13
01560-10203-000
Bolt
TYPE 1 |
01560-10203-000 |
— | ||
| replacement | |||||
|
13
|
13
01560-1020A-000 BoltTYPE 1 |
01560-1020A-000 |
US $17.30 |
||
|
13
|
13
01560-10253-000
ボルト
TYPE 2 |
01560-10253-000 |
— | ||
| replacement | |||||
|
13
|
13
01560-1025A-000 BoltTYPE 2 |
01560-1025A-000 |
US $1.07 |
||
|
14
|
14
01560-10163-000
ボルト
|
01560-10163-000 |
— | ||
| replacement | |||||
|
14
|
14
01560-1016A-000 Bolt |
01560-1016A-000 |
US $0.96 |
||
|
15
|
15
11730-58B31-000
Member, rear mounting
TYPE 1 |
11730-58B31-000 |
— | ||
| replacement | |||||
|
15
|
15
11730-58B32-000
Member,eng rear mtg
TYPE 1 |
11730-58B32-000 |
— | ||
|
15
|
15
11730-58B32-000
Member,eng rear mtg
TYPE 2 |
11730-58B32-000 |
— | ||
|
16
|
16
01580-10253-000
ボルト
|
01580-10253-000 |
— | ||
| replacement | |||||
|
16
|
16
01580-1025A-000 Bolt |
01580-1025A-000 |
US $19.50 |
||
|
17
|
17
01580-10253-000
ボルト
|
01580-10253-000 |
— | ||
| replacement | |||||
|
17
|
17
01580-1025A-000 Bolt |
01580-1025A-000 |
US $19.50 |
||
|
18
|
18
18568-56B01-000 BRACKET,CANISTER HOSE CLAMP |
18568-56B01-000 |
US $4.60 |
||
|
19
|
19
02162-06123-000
Bolt (6x12)
TYPE 1 |
02162-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
02162-0612B-000 SCREWBolt TYPE 1 |
02162-0612B-000 |
from US $0.80 |
||
|
19
|
19
02162-0612A-000 SCREWBolt, bracket TYPE 1 |
02162-0612A-000 |
from US $0.80 |
||
|
19
|
19
02162-06103-000
Bolt
TYPE 2 |
02162-06103-000 |
— | ||
| replacement | |||||
|
19
|
19
02162-0610A-000 SCREWTYPE 2 |
02162-0610A-000 |
from US $0.64 |
||
