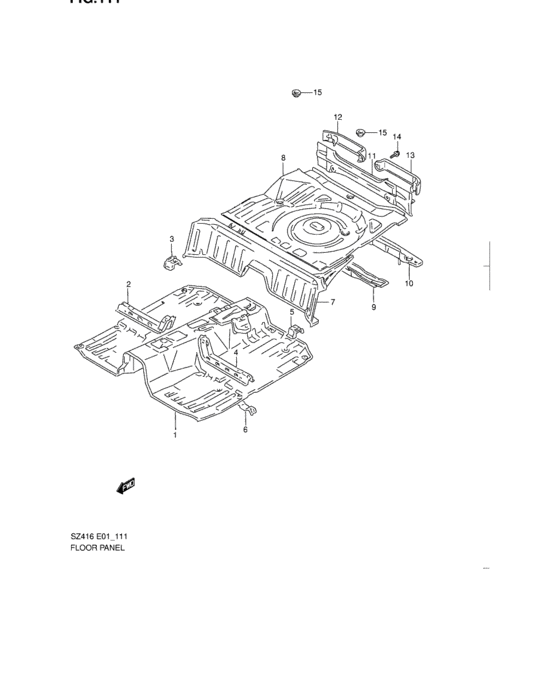

Floor panel (FLOOR PANEL) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61400-79E01-000
パネルアッシ,フロントフロア
MT |
61400-79E01-000 |
— | ||
| replacement | |||||
|
1
|
1
61411-63A20-000
PAN,MAIN FLOOR
MT |
61411-63A20-000 |
— | ||
|
2
|
2
61450-60A10-000 MEMBER,FR SEAT,R |
61450-60A10-000 |
US $58.14 |
||
|
3
|
3
61461-60A00-000 BRACKET,SEAT RR OUTER,R |
61461-60A00-000 |
US $10.52 |
||
|
4
|
4
61550-60A10-000 MEMBER,FR SEAT,L |
61550-60A10-000 |
US $102.40 |
||
|
5
|
5
61561-60A00-000 BRACKET,SEAT RR OUTER,L |
61561-60A00-000 |
US $15.36 |
||
|
6
|
6
61641-60A10-000
REINFORCEMENT,SEAT BELT,CTR
|
61641-60A10-000 |
— | ||
|
7
|
7
61700-79E01-000
パネルアッシ,センタフロア
|
61700-79E01-000 |
— | ||
|
8
|
8
62111-79E00-000
パネル,リヤフロア
|
62111-79E00-000 |
— | ||
|
9
|
9
62120-79E00-000
メンバ,リヤフロア
|
62120-79E00-000 |
— | ||
|
10
|
10
62510-79E00-000
メンバ,リヤフロアテール
|
62510-79E00-000 |
— | ||
|
11
|
11
65610-79E01-000
パネル,バック
|
65610-79E01-000 |
— | ||
|
12
|
12
65960-79E00-000
EXTENSION,BACK PNL SIDE,R
|
65960-79E00-000 |
— | ||
|
13
|
13
65970-79E00-000
EXTENSION,BACK PNL SIDE,L
|
65970-79E00-000 |
— | ||
|
14
|
14
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
15
|
15
65971-77E00-000
Cap, rear floor drain
|
65971-77E00-000 |
— | ||
| replacement | |||||
|
15
|
15
65971-77E10-000 CAP,OD:30 |
65971-77E10-000 |
US $2.24 |
||
