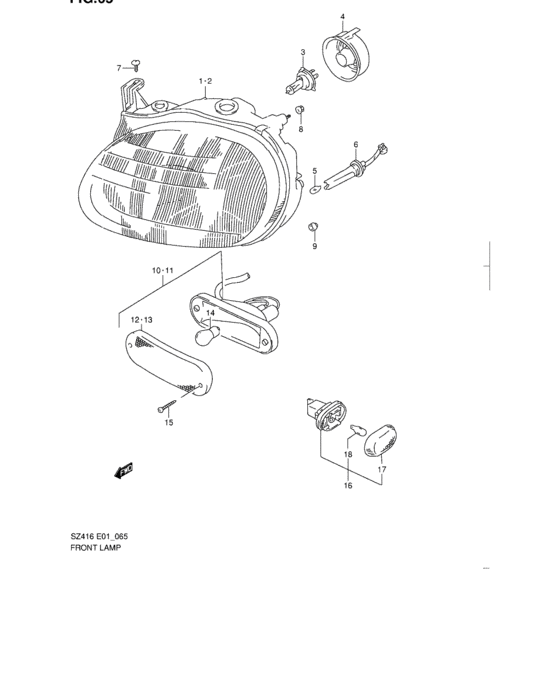

Front lamp (FRONT LAMP) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35120-79E10-000
Unit,headlamp,rh
|
35120-79E10-000 |
— | ||
|
1
|
1
35120-79E50-000
UNIT,HEADLAMP,R
|
35120-79E50-000 |
— | ||
|
1
|
1
35120-79E40-000
UNIT,HEADLAMP,R
Germany |
35120-79E40-000 |
— | ||
|
1
|
1
35120-79E30-000
Unit,headlamp,rh
Australia |
35120-79E30-000 |
— | ||
|
1
|
1
35120-79E20-000
Unit,headlamp,rh
Saudi Arabia |
35120-79E20-000 |
— | ||
|
2
|
2
35320-79E10-000
Unit,headlamp,lh
|
35320-79E10-000 |
— | ||
|
2
|
2
35320-79E50-000
Unit,headlamp,lh
|
35320-79E50-000 |
— | ||
|
2
|
2
35320-79E40-000
UNIT,HEADLAMP,L
Germany |
35320-79E40-000 |
— | ||
|
2
|
2
35320-79E30-000
Unit,headlamp,lh
Australia |
35320-79E30-000 |
— | ||
|
2
|
2
35320-79E20-000
Unit,headlamp,lh
Saudi Arabia |
35320-79E20-000 |
— | ||
|
3
|
3
09471-12182-000 BULB(12V60/55W,H4) |
09471-12182-000 |
from US $26.98 |
||
|
4
|
4
35125-74F00-000 COVER,SOCKET |
35125-74F00-000 |
from US $10.78 |
||
|
5
|
5
09471-12081-000
Bulb (12v,5w)
|
09471-12081-000 |
— | ||
| replacement | |||||
|
5
|
5
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
|
6
|
6
36118-79E00-000
CORD,POSITION LAMP
|
36118-79E00-000 |
— | ||
|
7
|
7
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
8
|
8
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
9
|
9
35153-60B00-000 GROMMET,HEADLAMP |
35153-60B00-000 |
US $4.45 |
||
|
10
|
10
35601-79E00-000 LAMP ASSY,FR TURN SIG,R |
35601-79E00-000 |
US $34.04 |
||
|
11
|
11
35602-79E00-000 LAMP ASSY,FR TURN SIG,L |
35602-79E00-000 |
US $34.04 |
||
|
12
|
12
35612-60B10-000 LENS,FR TURN SIG LAMP,R |
35612-60B10-000 |
US $5.93 |
||
|
13
|
13
35632-60B10-000 LENS,FR TURN SIG LAMP,L |
35632-60B10-000 |
US $9.73 |
||
|
14
|
14
09471-12045-000 BULB(12V21W) |
09471-12045-000 |
from US $2.54 |
||
|
15
|
15
09125-04018-000
Screw 4x35 (sus
|
09125-04018-000 |
— | ||
| replacement | |||||
|
15
|
15
09125-04018-XC0 SCREW(4X35) |
09125-04018-XC0 |
from US $1.12 |
||
|
16
|
16
36410-60B11-000 LAMP ASSY,SIDE TURN SIG |
36410-60B11-000 |
US $41.60 |
||
|
17
|
17
36412-60B00-000 LENS,SIDE TURN SIG LAMP(AMBER) |
36412-60B00-000 |
US $9.60 |
||
|
18
|
18
09471-12081-000
Bulb (12v,5w)
|
09471-12081-000 |
— | ||
| replacement | |||||
|
18
|
18
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $2.84 |
||
