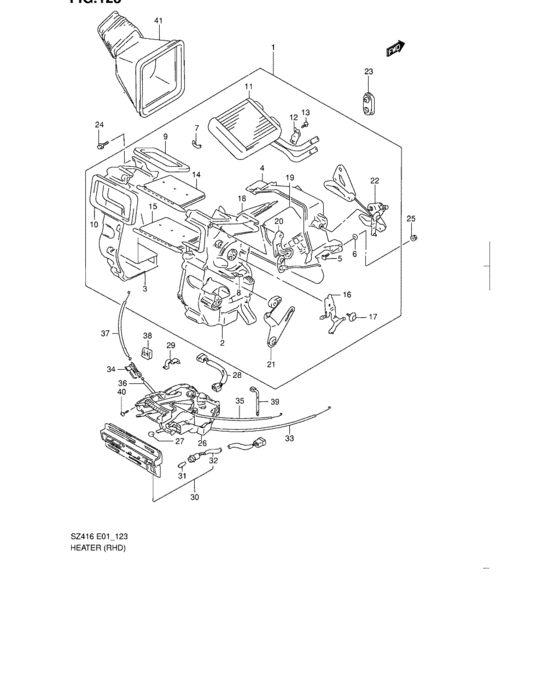

Heater (RHD) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-64A21-000 HEATER ASSY |
74100-64A21-000 |
US $531.52 |
||
|
1
|
1
74100-65A20-000
Heater assy
JSAELA11S00100202~,JSAELB11S00104489~ |
74100-65A20-000 |
— | ||
|
2
|
2
74111-64A21-000
CASE,HEATER,R
|
74111-64A21-000 |
— | ||
|
2
|
2
74111-65A20-000
Case, heater
JSAELA11S00100202~,JSAELB11S00104489~ |
74111-65A20-000 |
— | ||
|
3
|
3
74112-64A20-000
CASE,HEATER
|
74112-64A20-000 |
— | ||
|
4
|
4
74113-60A00-000
CASE,HEATER
|
74113-60A00-000 |
— | ||
|
5
|
5
74115-64A00-000 Bolt |
74115-64A00-000 |
US $2.72 |
||
|
6
|
6
74116-60A00-000 PACKIN |
74116-60A00-000 |
US $1.44 |
||
|
7
|
7
74133-82000-000 CLAMP,CASE |
74133-82000-000 |
US $2.91 |
||
|
8
|
8
74151-70D01-000 CLAMP,CONTROL WIRE |
74151-70D01-000 |
US $4.12 |
||
|
9
|
9
74262-60A00-000
パッキン
|
74262-60A00-000 |
— | ||
| replacement | |||||
|
9
|
9
74163-84101-000 PACKING |
74163-84101-000 |
from US $7.90 |
||
|
10
|
10
74262-60A00-000
パッキン
|
74262-60A00-000 |
— | ||
| replacement | |||||
|
10
|
10
74163-84101-000 PACKING |
74163-84101-000 |
from US $7.90 |
||
|
11
|
11
74120-64A00-000
CORE,HTR
|
74120-64A00-000 |
— | ||
|
12
|
12
74199-60A00-000
CLAMP
|
74199-60A00-000 |
— | ||
|
13
|
13
03111-05123-000
Screw
|
03111-05123-000 |
— | ||
| replacement | |||||
|
13
|
13
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
14
|
14
74171-60A00-000
DAMPER
|
74171-60A00-000 |
— | ||
|
15
|
15
74172-64A00-000
DAMPER
|
74172-64A00-000 |
— | ||
|
16
|
16
74176-64A01-000
LINK,CONTROL
|
74176-64A01-000 |
— | ||
|
17
|
17
74183-82005-000 SCREW,LINK |
74183-82005-000 |
US $1.73 |
||
|
18
|
18
74173-60A10-000
DAMPER
|
74173-60A10-000 |
— | ||
|
19
|
19
74174-60A00-000
DAMPER
|
74174-60A00-000 |
— | ||
|
20
|
20
74170-64A00-000
LEVER ASSY,VENT
|
74170-64A00-000 |
— | ||
|
21
|
21
74180-64A00-000
LEVER ASSY,HEAT
|
74180-64A00-000 |
— | ||
|
22
|
22
74190-64A00-000
Lever assy,temp
|
74190-64A00-000 |
— | ||
|
23
|
23
74812-82030-000 GROMMET,HTR |
74812-82030-000 |
US $13.60 |
||
|
24
|
24
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
24
|
24
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
25
|
25
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
26
|
26
74400-64A12-000 LEVER ASSY,HTR CONT |
74400-64A12-000 |
US $552.64 |
||
|
27
|
27
74431-64A10-5PK KNOB,CONTROL LEVER |
74431-64A10-5PK |
US $4.48 |
||
|
28
|
28
74436-77E00-000 HARNESS,FAN SW |
74436-77E00-000 |
US $19.87 |
||
|
29
|
29
74441-70B00-000 HOLDER,HEATER CABLE |
74441-70B00-000 |
US $2.80 |
||
|
30
|
30
74450-64A00-5PK PANEL,HEATER CONTROL |
74450-64A00-5PK |
US $110.21 |
||
|
31
|
31
73856-82000-000 BULB,HEATER CONTROL |
73856-82000-000 |
US $10.24 |
||
|
32
|
32
74456-64A00-000 HARNESS,HTR CONTROL |
74456-64A00-000 |
US $18.24 |
||
|
33
|
33
74453-60D00-000 CABLE,TEMP CONTROL L:470BLUE |
74453-60D00-000 |
US $37.90 |
||
|
34
|
34
74470-77E00-000
JOINT,CABLE
|
74470-77E00-000 |
— | ||
|
35
|
35
74511-79E00-000
CABLE,MODE CONTROL L:320
NATURAL |
74511-79E00-000 |
— | ||
|
36
|
36
74513-77E20-000
CABLE,FRESH AIR CONTROL L:725
BLACK |
74513-77E20-000 |
— | ||
|
37
|
37
74514-79E00-000
CABLE,JOINT L:275
BLUE |
74514-79E00-000 |
— | ||
|
38
|
38
74541-60E00-000
CLIP,CONTROL CABLE
|
74541-60E00-000 |
— | ||
|
39
|
39
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
40
|
40
03511-05163-000
Screw
|
03511-05163-000 |
— | ||
| replacement | |||||
|
40
|
40
03511-0516A-000 SCREW |
03511-0516A-000 |
from US $0.76 |
||
|
41
|
41
74620-60A00-000
DUCT,HEATER
|
74620-60A00-000 |
— | ||
