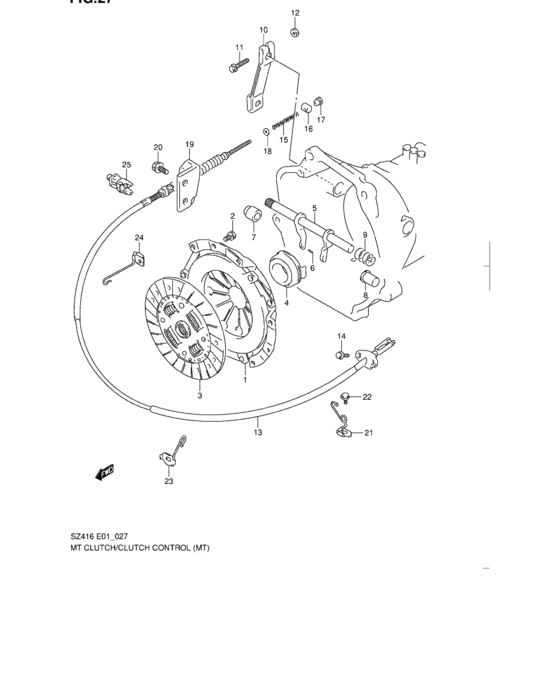

Mt clutch and clutch control (MT) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-57B10-000
Clutch cover assy
|
22100-57B10-000 |
— | ||
|
2
|
2
09117-08096-000 BOLT(8X16) |
09117-08096-000 |
from US $1.44 |
||
|
3
|
3
22400-57B10-000
DISC CLUTCH
|
22400-57B10-000 |
— | ||
| replacement | |||||
|
3
|
3
22400-57810-000 CLUTCH DISC and COVER SET |
22400-57810-000 |
from US $219.13 |
||
|
4
|
4
23265-70C00-000 BEARING,CLUTCH RELEASE |
23265-70C00-000 |
from US $45.95 |
||
|
5
|
5
23260-60A00-000 SHAFT,CLUTCH RELEASE |
23260-60A00-000 |
from US $24.77 |
||
|
6
|
6
09205-03019-000 PIN,SPRING(3X10)Pin, tilt lock |
09205-03019-000 |
from US $0.81 |
||
|
7
|
7
23264-60A00-000 BUSH,CLUTCH RLSE SHAFT NO.1 |
23264-60A00-000 |
from US $5.47 |
||
|
8
|
8
23264-60A20-000 BUSH,CLUTCH RLSE SHAFT NO.2 |
23264-60A20-000 |
from US $2.95 |
||
|
9
|
9
23269-60A00-000 SPRING,CLUTCH RELEASE RETURN |
23269-60A00-000 |
from US $2.72 |
||
|
10
|
10
23266-60A00-000 ARM,CLUTCH RELEASE |
23266-60A00-000 |
from US $20.59 |
||
|
11
|
11
01550-08403-000
Bolt
|
01550-08403-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
11
|
11
01550-0840A-000 Bolt |
01550-0840A-000 |
from US $1.12 |
||
|
12
|
12
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
13
|
13
23710-57B12-000 CABLE ASSY,CLUTCHLHD |
23710-57B12-000 |
US $78.14 |
||
|
13
|
13
23710-57B20-000 CABLE ASSY,CLUTCHRHD |
23710-57B20-000 |
US $69.18 |
||
|
14
|
14
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
14
|
14
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
15
|
15
09440-08026-000 SPRING |
09440-08026-000 |
from US $0.41 |
||
|
16
|
16
09209-13018-000 PIN(13X18) |
09209-13018-000 |
from US $1.26 |
||
|
17
|
17
09150-06014-000
Nut
|
09150-06014-000 |
— | ||
| replacement | |||||
|
17
|
17
09150-06010-000 NUT |
09150-06010-000 |
from US $1.82 |
||
|
18
|
18
08322-01063-000
Washer
|
08322-01063-000 |
— | ||
| replacement | |||||
|
18
|
18
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
19
|
19
23910-56B10-000 BRACKET,CLUTCH CABLE |
23910-56B10-000 |
from US $9.45 |
||
|
20
|
20
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-1020A-000 BoltBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
21
|
21
23915-60A20-000 CLAMP,CLUTCH CABLE LEFT NO.1LHD |
23915-60A20-000 |
US $3.60 |
||
|
22
|
22
23915-57B01-000
クランプ,クラッチケーブル
RHD:TYPE 1 |
23915-57B01-000 |
— | ||
|
23
|
23
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
23
|
23
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
23
|
23
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
24
|
24
23916-60A00-000 CLAMP,CLUTCH CABLE LEFT,NO.2LHD |
23916-60A00-000 |
US $5.27 |
||
|
25
|
25
23918-60A00-000 CLAMP,CLUTCH CABLE NO.3LHD |
23918-60A00-000 |
US $20.80 |
||
|
26
|
26
23915-77D00-000 CLAMPRHD |
23915-77D00-000 |
US $2.83 |
||
