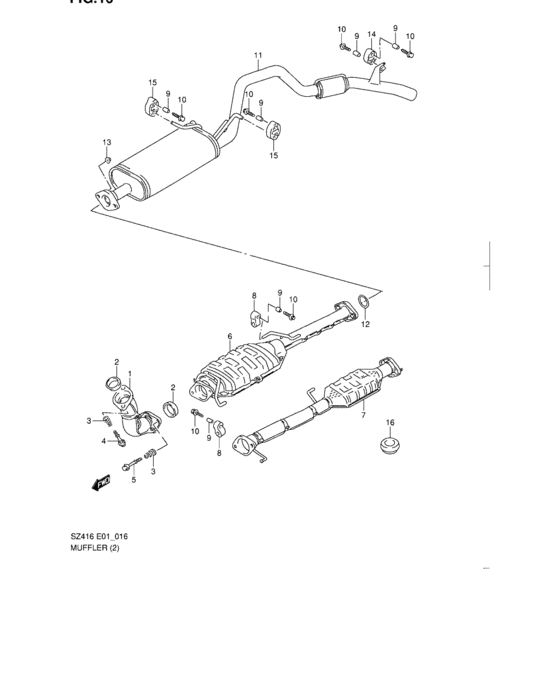

Muffler (2,4) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-58B02-000 PIPE,EXH NO.1 |
14190-58B02-000 |
US $358.80 |
||
|
2
|
2
14183-58B02-000
Ring,seal exh pipe
|
14183-58B02-000 |
— | ||
| replacements | |||||
|
2
|
2
14183-65D00-000 RING,SEAL EXH PIPE |
14183-65D00-000 |
US $20.80 |
||
|
2
|
2
14183-58B10-000 RING,SEAL EXH PIPE |
14183-58B10-000 |
from US $18.27 |
||
|
3
|
3
14492-82600-000
Spring
|
14492-82600-000 |
— | ||
| replacement | |||||
|
3
|
3
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $5.69 |
||
|
4
|
4
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.92 |
||
|
5
|
5
09119-10042-000
ボルト,10X65
|
09119-10042-000 |
— | ||
| replacement | |||||
|
5
|
5
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.92 |
||
|
6
|
6
14250-58B01-000
Pipe, exhaust no. 2
,2 |
14250-58B01-000 |
— | ||
| replacement | |||||
|
6
|
6
14250-58BVV-000 PIPE,EXH NO.2,2 |
14250-58BVV-000 |
US $1,720 |
||
|
7
|
7
14250-58B20-000 PIPE,EXH NO.2Australia |
14250-58B20-000 |
US $1,444.80 |
||
|
8
|
8
14281-71C00-000
マウンチング,マフラ
|
14281-71C00-000 |
— | ||
| replacement | |||||
|
8
|
8
14281-71C01-000 MOUNTING,MUF |
14281-71C01-000 |
from US $7.49 |
||
|
9
|
9
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
9
|
9
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
|
10
|
10
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
10
|
10
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
11
|
11
14300-58B11-000 MUFFLER,EXH |
14300-58B11-000 |
US $556.16 |
||
|
12
|
12
14182-58B10-000 GASKET,MUFFLER |
14182-58B10-000 |
from US $4.79 |
||
|
13
|
13
09159-10049-000
Nut
|
09159-10049-000 |
— | ||
| replacement | |||||
|
13
|
13
09159-10102-000 NUT |
09159-10102-000 |
from US $0.97 |
||
|
14
|
14
14281-78010-000
Mounting, muffler
|
14281-78010-000 |
— | ||
| replacement | |||||
|
14
|
14
14281-60G01-000 MOUNTING,MUF |
14281-60G01-000 |
US $9.28 |
||
|
15
|
15
14281-58B00-000
マウンチング,マフラ
|
14281-58B00-000 |
— | ||
| replacement | |||||
|
15
|
15
14281-58B01-000 MOUNTING,MUF |
14281-58B01-000 |
US $22.40 |
||
|
16
|
16
09250-25007-000 CAP(OD:25.0) |
09250-25007-000 |
from US $0.97 |
||
