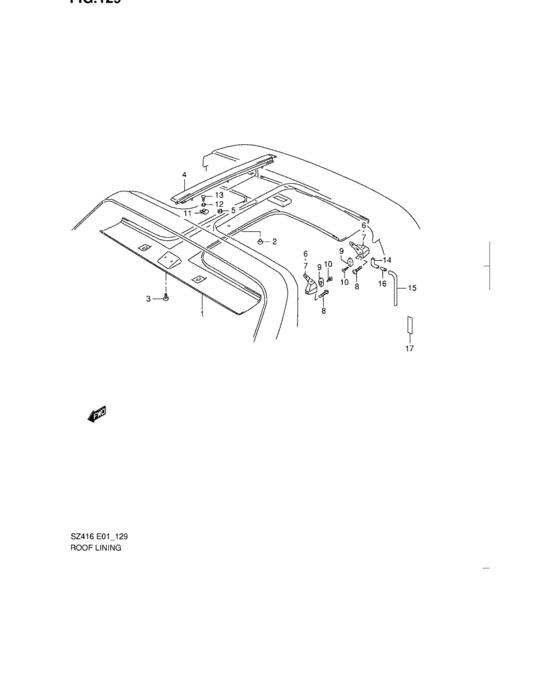

Roof lining (ROOF LINING) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78110-79E20-6NW
Headlining assy, roof
|
78110-79E20-6NW |
— | ||
|
2
|
2
09409-06310-6GS CLIP(GRAY) |
09409-06310-6GS |
from US $1.37 |
||
|
3
|
3
09409-05309-5ES CLIP(BLACK) |
09409-05309-5ES |
from US $1.04 |
||
|
4
|
4
78120-79E00-6GS
HOOK ASSY,HATCH ROOF CTR
|
78120-79E00-6GS |
— | ||
|
5
|
5
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
78131-79E00-000
Bracket,hatch roof female,no.1
FR RH,RR LH |
78131-79E00-000 |
— | ||
|
7
|
7
78132-79E00-000
BRACKET,HATCH ROOF FEMALE,NO.2
FR LH,RR RH |
78132-79E00-000 |
— | ||
|
8
|
8
02112-06123-000
Screw, breather cover
|
02112-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
8
|
8
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
9
|
9
78141-79E00-000
Female,hatch roof
|
78141-79E00-000 |
— | ||
|
10
|
10
03211-05123-000
Screw
|
03211-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03211-0512A-000 SCREW |
03211-0512A-000 |
US $0.80 |
||
|
11
|
11
78160-79E00-000
フック,ハッチルーフロア
|
78160-79E00-000 |
— | ||
|
12
|
12
93916-64A00-000
ワッシャ,テールゲートフィラ
|
93916-64A00-000 |
— | ||
|
13
|
13
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
13
|
13
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
14
|
14
78151-79E00-000
JOINT,ROOF DRAIN HOSE
|
78151-79E00-000 |
— | ||
|
15
|
15
09351-10137-00B
HOSE(10X13X2000)
L:2000->1250 |
09351-10137-00B |
— | ||
|
16
|
16
09364-10003-000
UNION
|
09364-10003-000 |
— | ||
|
17
|
17
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
