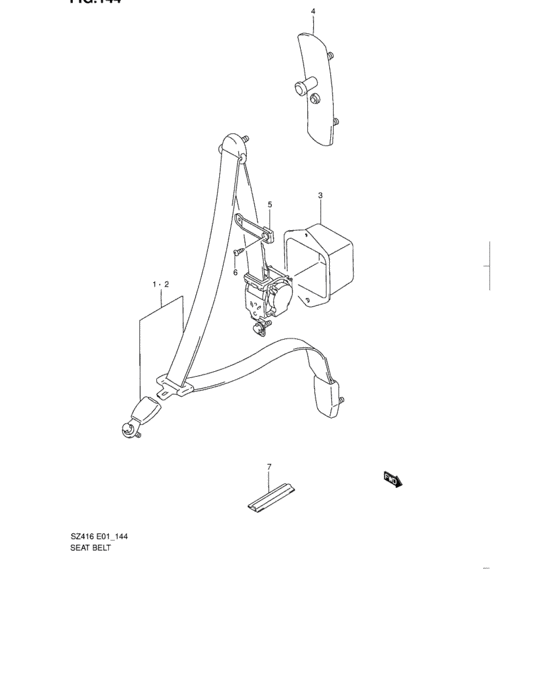

Seat belt (SEAT BELT) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-79E30-5FJ
BELT ASSY,FR,R
LHD |
84901-79E30-5FJ |
— | ||
|
1
|
1
84901-79E50-5FJ
Belt assy, front rh
RHD,W/AIR BAG |
84901-79E50-5FJ |
— | ||
|
2
|
2
84902-79E50-5FJ
Belt assy,fr,l
LHD |
84902-79E50-5FJ |
— | ||
|
2
|
2
84902-79E30-5FJ
Belt assy, front lh
RHD |
84902-79E30-5FJ |
— | ||
|
3
|
3
84924-63A10-000
COVER,SEAT BELT ELR DUST
|
84924-63A10-000 |
— | ||
|
4
|
4
84990-56B00-5ES
アジャスタ,フロントベルトショルダ(ブラック)
TYPE 1 |
84990-56B00-5ES |
— | ||
|
4
|
4
84990-56B00-6GS
ADJUSTER ASSY,FR SHLDR
TYPE 2 |
84990-56B00-6GS |
— | ||
|
5
|
5
84963-79E00-000
ガイド,シートベルト
|
84963-79E00-000 |
— | ||
|
6
|
6
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
6
|
6
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
7
|
7
85198-70E00-000 TIE |
85198-70E00-000 |
US $3.02 |
||
