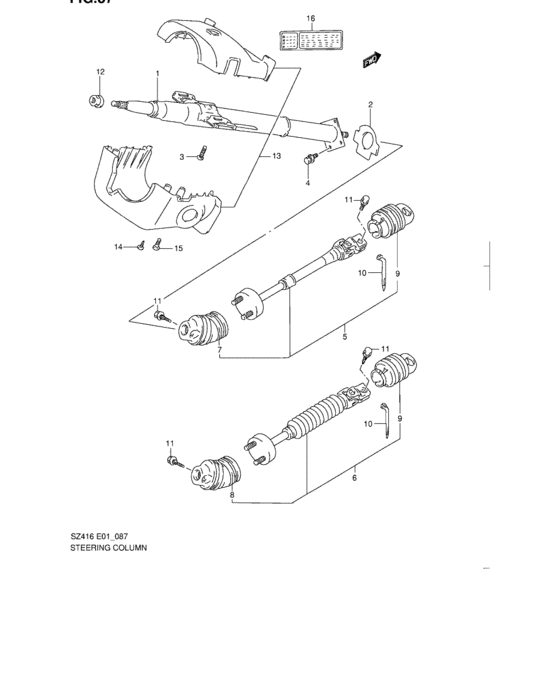

Steering column (STEERING COLUMN) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-79E00-000
コラムアッシ,ステアリング
N/AIR BAG |
48200-79E00-000 |
— | ||
|
1
|
1
48200-79E10-000
COLUMN ASSY,STRG
W/AIR BAG |
48200-79E10-000 |
— | ||
|
2
|
2
48491-77E00-000 SEAL,STRG COLUMN LOWER |
48491-77E00-000 |
US $7.76 |
||
|
3
|
3
09139-08015-000 SCREW(8X30) |
09139-08015-000 |
US $1.92 |
||
|
4
|
4
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
4
|
4
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
5
|
5
48220-77E10-000 SHAFT ASSY,STEERING LOWERN/AIR BAG |
48220-77E10-000 |
US $482.24 |
||
|
6
|
6
48220-62A11-000 SHAFT,COLPS STRG LOWERW/AIR BAG |
48220-62A11-000 |
US $626.56 |
||
|
7
|
7
48225-56B50-000 BOOT SET,JOINT UPPERN/AIR BAG |
48225-56B50-000 |
US $32 |
||
|
8
|
8
48225-57B50-000
BOOT SET,JOINT UPPER
W/AIR BAG |
48225-57B50-000 |
— | ||
|
9
|
9
48228-60A00-000 BOOT,JOINT LOWER |
48228-60A00-000 |
from US $15.21 |
||
|
10
|
10
48229-60A00-000 STRAP,BOOT |
48229-60A00-000 |
US $2.40 |
||
|
11
|
11
09117-08068-000 BOLT(8X30) |
09117-08068-000 |
US $17.30 |
||
|
12
|
12
09159-12025-000 NUT |
09159-12025-000 |
US $1.82 |
||
|
13
|
13
48400-77E60-5ES
COVER ASSY,STRG COLUMN (BLACK)
TYPE 1:LHD |
48400-77E60-5ES |
— | ||
|
13
|
13
48400-77E00-5ES
カバーセット,ステアリングコラム(ブラック)
TYPE 1:RHD |
48400-77E00-5ES |
— | ||
| replacement | |||||
|
13
|
13
48400-77E10-5ES
COVER ASSY,STRG COLUMN
TYPE 1:RHD |
48400-77E10-5ES |
— | ||
|
13
|
13
48400-77E60-T01
COVER ASSY,STEERING COLUMN(GRAY)
TYPE 2:LHD |
48400-77E60-T01 |
— | ||
|
13
|
13
48400-77E10-T01
COVER ASSY,STRG COLUMN
TYPE 2:RHD |
48400-77E10-T01 |
— | ||
|
14
|
14
03211-05123-000
Screw
|
03211-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
03211-0512A-000 SCREW |
03211-0512A-000 |
US $0.80 |
||
|
15
|
15
09136-05030-000 SCREW(5X12) |
09136-05030-000 |
US $0.96 |
||
|
16
|
16
79172-50G71-000
ラベル,ステアリングコラム,エアバッグ
|
79172-50G71-000 |
— | ||
| replacement | |||||
|
16
|
16
79172-80G02-000 LABEL,STRG JOINT |
79172-80G02-000 |
US $4.48 |
||
