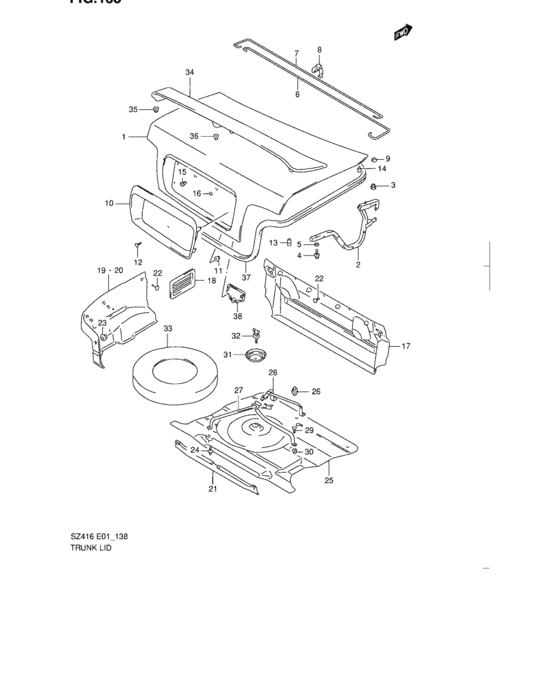

Trunk lid (TRUNK LID) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67600-79810-000
パネルアッシ,トランクリッド
|
67600-79810-000 |
— | ||
| replacement | |||||
|
1
|
1
67600-79811-000
PANEL ASSY,TRUNK LID
|
67600-79811-000 |
— | ||
|
2
|
2
67630-79E01-000 HINGE,TRUNK LID |
67630-79E01-000 |
US $58.14 |
||
|
3
|
3
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
|
4
|
4
01550-06353-000
Bolt
|
01550-06353-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
4
|
4
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
5
|
5
09160-06121-000 WASHER(6.5X18X2) |
09160-06121-000 |
from US $5.10 |
||
|
6
|
6
67651-79E02-000
BAR,TRUNK LID TORSION,R
|
67651-79E02-000 |
— | ||
|
7
|
7
67652-79E02-000 BAR,TRUNK LID TORSION,L |
67652-79E02-000 |
US $46 |
||
|
8
|
8
76691-79E00-000 HOLDER,TRUNK OPENER SPR |
76691-79E00-000 |
US $1.60 |
||
|
9
|
9
09321-05021-000 CUSHION |
09321-05021-000 |
US $1.60 |
||
|
10
|
10
77140-79E00-5PK
GARNISH,RR LIC PLATE
|
77140-79E00-5PK |
— | ||
|
11
|
11
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
12
|
12
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
13
|
13
76683-70C00-000 CUSHION,TRUNK LID/BACK DR |
76683-70C00-000 |
US $1.92 |
||
|
14
|
14
77192-50E00-000 CUSHION |
77192-50E00-000 |
US $2.56 |
||
|
15
|
15
09148-05035-000 NUTSaudi Arabia |
09148-05035-000 |
US $12.90 |
||
|
16
|
16
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole CUT AS REQUIRED |
84761-50X50-000 |
US $6.72 |
||
|
17
|
17
76611-79E00-5ZJ
TRIM,TRUNK ROOM FRONT
|
76611-79E00-5ZJ |
— | ||
|
18
|
18
76621-79E00-5PK
PLATE,TRUNK ROOM SIDE
~LB11S-100038,~JSAELB11S00102404 |
76621-79E00-5PK |
— | ||
|
19
|
19
76625-79E00-5ZJ
Trim, trunk room side rh
LB11S-100039~,JSAELA11S00100001~,JSAELB11S00102405~ |
76625-79E00-5ZJ |
— | ||
|
20
|
20
76626-79E00-5ZJ
Trim, trunk room side lh
LB11S-100039~,JSAELA11S00100001~,JSAELB11S00102405~ |
76626-79E00-5ZJ |
— | ||
|
21
|
21
76635-79E00-5ES
Trim, trunk room rr
LB11S-100039~,JSAELA11S00100001~,JSAELB11S00102405~ |
76635-79E00-5ES |
— | ||
|
22
|
22
76283-60A30-5ES
CLIP,CTR PILLAR JOINT
|
76283-60A30-5ES |
— | ||
|
23
|
23
36990-60B60-5PK NUT,TRNK ROOM SIDE TRIMLB11S-100039~,JSAELA11S00100001~,JSAELB11S00102404~ |
36990-60B60-5PK |
US $1.60 |
||
|
24
|
24
09409-07318-5ES CLIP(BLACK)LB11S-100039~,JSAELA11S00100001~,JSAELB11S00102404~ |
09409-07318-5ES |
US $23.60 |
||
|
25
|
25
76630-79E00-5ZJ
カーペット,トランクルーム(ブラック)
|
76630-79E00-5ZJ |
— | ||
|
26
|
26
09410-00067-000 MALE |
09410-00067-000 |
US $2.88 |
||
|
27
|
27
76660-79E10-000
Strap,hatch roof,n0.1
|
76660-79E10-000 |
— | ||
|
28
|
28
76670-79E10-000
Strap,hatch roof,n0.2
|
76670-79E10-000 |
— | ||
|
29
|
29
03141-06163-000
Screw 6x16
|
03141-06163-000 |
— | ||
| replacement | |||||
|
29
|
29
03141-0616A-000 SCREW |
03141-0616A-000 |
from US $0.76 |
||
|
30
|
30
09148-05035-000 NUT |
09148-05035-000 |
US $12.90 |
||
|
31
|
31
76651-79E01-000
HOLDER,SPARE TIRE
|
76651-79E01-000 |
— | ||
|
32
|
32
75463-70B00-000
SCREW,SPARE TIRE
|
75463-70B00-000 |
— | ||
|
33
|
33
76640-79E11-5FE
Cover, spare tire
|
76640-79E11-5FE |
— | ||
|
34
|
34
83980-79E00-799
スポイラ,リヤ(プライマリー)
PAINT TO MATCH |
83980-79E00-799 |
— | ||
| replacement | |||||
|
34
|
34
83980-79E00-000
Spoiler,rear
PAINT TO MATCH |
83980-79E00-000 |
— | ||
|
35
|
35
09159-06025-000
Nut
|
09159-06025-000 |
— | ||
| replacement | |||||
|
35
|
35
09159-06100-000 NUT |
09159-06100-000 |
from US $4.28 |
||
|
36
|
36
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
36
|
36
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
37
|
37
84681-79E00-000
Weatherstrip,trunk lid opng
|
84681-79E00-000 |
— | ||
|
38
|
38
76623-79E00-000
カバー,トランクリッドキーシリンダ
LB11S-100149~,JSAELA11S00100845~,JSAELB11S00105073~ |
76623-79E00-000 |
— | ||
