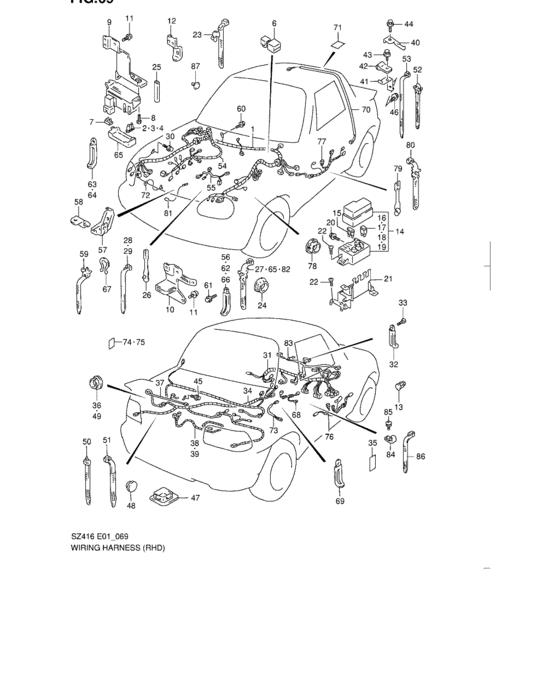

Wiring harness (RHD) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36601-79E40-000
Harness assy, wiring main
:MT |
36601-79E40-000 |
— | ||
|
1
|
1
36610-79EF0-000
Harness assy, wiring main
:MT,N/ABS |
36610-79EF0-000 |
— | ||
|
1
|
1
36610-79EH0-000
Harness assy, wiring main
:MT,W/ABS |
36610-79EH0-000 |
— | ||
|
1
|
1
36601-79E00-000
ハーネスアッシ,ワイヤリング,メイン
Australia:MT,N/ABS |
36601-79E00-000 |
— | ||
|
1
|
1
36601-79E20-000
Harness assy, wiring main
Australia:MT,W/ABS |
36601-79E20-000 |
— | ||
|
2
|
2
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
3
|
3
09481-20101-000 FUSE(20A) |
09481-20101-000 |
from US $3.35 |
||
|
4
|
4
09481-25103-000 FUSE(25A) |
09481-25103-000 |
from US $2.15 |
||
|
5
|
5
36717-77E01-000 COVER,FUSE BOX |
36717-77E01-000 |
US $8.68 |
||
|
6
|
6
33553-52E00-000 FILTER,NOISE SUPPR |
33553-52E00-000 |
US $57.76 |
||
|
7
|
7
36795-82000-000 BREAKER,POWER WINDOW |
36795-82000-000 |
US $24.84 |
||
|
8
|
8
02162-05123-000
Screw
|
02162-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0512A-000 SCREW |
02162-0512A-000 |
from US $0.80 |
||
|
9
|
9
36735-77E13-000
Bracket,fuse box
|
36735-77E13-000 |
— | ||
|
10
|
10
36614-70E10-000
BRACKET,MAIN HARN
|
36614-70E10-000 |
— | ||
|
11
|
11
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
11
|
11
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
12
|
12
36996-70E00-000 PROTECTOR,MAIN HARNESS |
36996-70E00-000 |
US $2.72 |
||
|
13
|
13
09409-07320-000 CAP |
09409-07320-000 |
US $1.28 |
||
|
14
|
14
36740-77E00-000 BOX ASSY,MAIN FUSE |
36740-77E00-000 |
US $93.84 |
||
|
15
|
15
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
16
|
16
09481-30203-000 FUSE(30A) |
09481-30203-000 |
US $13.92 |
||
|
17
|
17
09481-50203-000 FUSE(50A)W/ABS |
09481-50203-000 |
US $15.36 |
||
|
18
|
18
09481-60202-000 FUSE(60A) |
09481-60202-000 |
from US $5.47 |
||
|
19
|
19
09481-80301-000 FUSE(80A) |
09481-80301-000 |
from US $5.74 |
||
|
20
|
20
09138-06040-000 BOLT(6X10) |
09138-06040-000 |
US $1.52 |
||
|
21
|
21
36737-70E10-000
BRACKET,MAIN FUSE
|
36737-70E10-000 |
— | ||
|
22
|
22
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
22
|
22
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
23
|
23
36990-56B00-000 CLAMP,HARN DASH PANEL |
36990-56B00-000 |
US $1.60 |
||
|
24
|
24
09308-25002-000 GROMMET |
09308-25002-000 |
US $11.80 |
||
|
25
|
25
75958-77E00-000 PROTECTOR,NO.4 |
75958-77E00-000 |
US $5.96 |
||
|
26
|
26
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
27
|
27
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
28
|
28
09407-17401-000
Clamp (l:150)
|
09407-17401-000 |
— | ||
| replacement | |||||
|
28
|
28
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
29
|
29
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
30
|
30
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
30
|
30
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
31
|
31
36620-79E50-000
Harness assy, instrument panel
|
36620-79E50-000 |
— | ||
|
31
|
31
36620-79ER0-000
Harness assy, instrument panel
|
36620-79ER0-000 |
— | ||
|
32
|
32
09404-06427-000
クランプ,L:80
|
09404-06427-000 |
— | ||
| replacements | |||||
|
32
|
32
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
32
|
32
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
32
|
32
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
32
|
32
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
32
|
32
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
32
|
32
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
33
|
33
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
33
|
33
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
34
|
34
36630-79E60-000
ハーネスアッシ,ワイヤリング,フロア
|
36630-79E60-000 |
— | ||
|
34
|
34
36630-79E80-000
Harness assy, wiring floor
:N/ABS |
36630-79E80-000 |
— | ||
|
35
|
35
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
36
|
36
09308-42001-000
GROMMET
|
09308-42001-000 |
— | ||
|
37
|
37
36845-79E00-000
ワイヤ,ライセンスランプ
|
36845-79E00-000 |
— | ||
|
38
|
38
36875-79E20-000
ワイヤ,フューエル
|
36875-79E20-000 |
— | ||
|
39
|
39
36875-79E10-000
Wire, fuel
W/ABS |
36875-79E10-000 |
— | ||
|
40
|
40
36996-56B00-000
ブラケット,アンチロックワイヤクランプ
|
36996-56B00-000 |
— | ||
|
41
|
41
36997-60A10-000
CLAMP,RWAL WIRE
|
36997-60A10-000 |
— | ||
|
42
|
42
36997-60A00-000
クランプ,アンチロックワイヤ
|
36997-60A00-000 |
— | ||
|
43
|
43
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
43
|
43
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
43
|
43
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
44
|
44
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
44
|
44
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
44
|
44
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
45
|
45
09129-06002-000 SCREW(6X12) |
09129-06002-000 |
US $0.96 |
||
|
46
|
46
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
||
|
47
|
47
75411-60A00-000 CAP,TAIL MEMBER LOWER |
75411-60A00-000 |
US $2.56 |
||
|
48
|
48
36995-60A10-000 GROMMET,SIDE SIL |
36995-60A10-000 |
US $1.91 |
||
|
49
|
49
09308-42001-000
GROMMET
|
09308-42001-000 |
— | ||
|
50
|
50
09407-11402-000 CLAMP(L:90) |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
50
|
50
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
51
|
51
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
52
|
52
09407-17401-000
Clamp (l:150)
|
09407-17401-000 |
— | ||
| replacement | |||||
|
52
|
52
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
53
|
53
09407-18403-000
Clamp, switch wire
|
09407-18403-000 |
— | ||
| replacement | |||||
|
53
|
53
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
54
|
54
36650-70E80-000
ハーネスアッシ,ワイヤリング,エンジン
MT |
36650-70E80-000 |
— | ||
|
54
|
54
36650-79E30-000
Harness assy, wiring engine
MT: |
36650-79E30-000 |
— | ||
|
55
|
55
36670-70E20-000 HARNESS ASSY,WRG INJ |
36670-70E20-000 |
US $105.25 |
||
|
56
|
56
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
56
|
56
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
57
|
57
36995-70E20-000 BRACKET,ENG HARN |
36995-70E20-000 |
US $6.07 |
||
|
58
|
58
36995-57B30-000 BRACKET,HARN |
36995-57B30-000 |
US $3.02 |
||
|
59
|
59
09407-12405-000
CLAMP
|
09407-12405-000 |
— | ||
|
60
|
60
01580-06123-000
Bolt
|
01580-06123-000 |
— | ||
| replacements | |||||
|
60
|
60
01580-0612B-000 Bolt |
01580-0612B-000 |
US $0.96 |
||
|
60
|
60
01580-0612A-000 Bolt |
01580-0612A-000 |
from US $0.91 |
||
|
61
|
61
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
61
|
61
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
62
|
62
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
63
|
63
09404-08419-000 CLAMP(L:80) |
09404-08419-000 |
US $12.50 |
||
| replacement | |||||
|
63
|
63
09404-08422-000 Clamp,wiring Harness |
09404-08422-000 |
from US $3.62 |
||
|
64
|
64
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
65
|
65
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
66
|
66
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
67
|
67
09408-00024-000 CLIP(ID:23)Clip, ptt sw terminal |
09408-00024-000 |
from US $2.40 |
||
|
68
|
68
36660-61A20-000
Harness assy, wiring mission
MT:2WD |
36660-61A20-000 |
— | ||
|
69
|
69
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
70
|
70
36820-60A30-000
WIRE,ROOM LAMP
|
36820-60A30-000 |
— | ||
|
71
|
71
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
72
|
72
36821-63A00-000
Wire, bonding
TYPE 1:2WD,TYPE 2:2WD:MT |
36821-63A00-000 |
— | ||
|
75
|
75
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
76
|
76
36756-79E00-000
WIRE,DR DRVR
|
36756-79E00-000 |
— | ||
|
77
|
77
36756-79E10-000
ワイヤ,ドア,アシスタント
|
36756-79E10-000 |
— | ||
|
78
|
78
09308-40001-000 GROMMET |
09308-40001-000 |
US $21.70 |
||
|
79
|
79
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
80
|
80
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
|
81
|
81
36955-60A00-000
ワイヤ,パワーステアリング
TYPE 1 |
36955-60A00-000 |
— | ||
| replacement | |||||
|
81
|
81
36955-70E00-000 WIRE,POWER STEERINGTYPE 1 |
36955-70E00-000 |
US $5.70 |
||
|
81
|
81
36955-70E00-000 WIRE,POWER STEERINGTYPE 1:JSAELB11S00105087~,TYPE 2 |
36955-70E00-000 |
US $5.70 |
||
|
82
|
82
09407-11401-000 CLAMP(L:95)Clamp, stator lead |
09407-11401-000 |
from US $1.76 |
||
|
83
|
83
36690-77E30-000
Harness assy, wiring air bag
W/AIR BAG |
36690-77E30-000 |
— | ||
|
84
|
84
09403-14204-000
CLAMP
W/AIR BAG |
09403-14204-000 |
— | ||
| replacement | |||||
|
84
|
84
09403-14415-000 ClampW/AIR BAG |
09403-14415-000 |
US $17.30 |
||
|
85
|
85
09137-06020-000 SCREW(6X14)W/AIR BAG |
09137-06020-000 |
US $17.70 |
||
|
86
|
86
09407-12404-000 CLAMP(L:140)W/AIR BAG |
09407-12404-000 |
US $2.08 |
||
|
87
|
87
09148-05042-000 CLIP |
09148-05042-000 |
US $1.12 |
||
