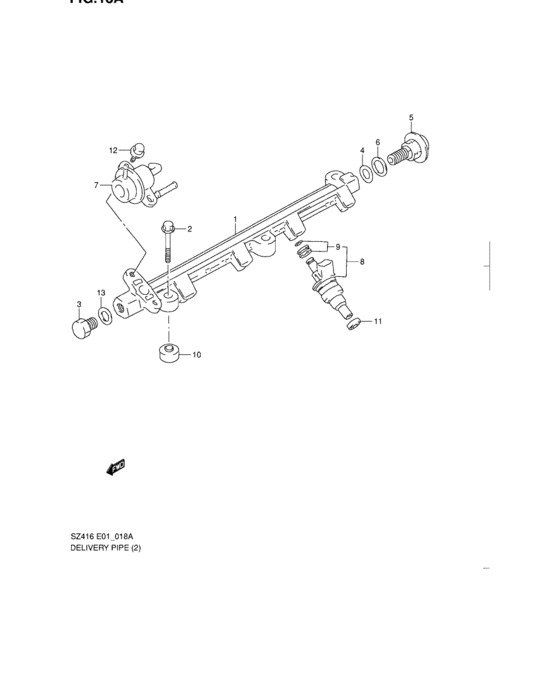

Delivery pipe (TYPE 2) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15731-57B11-000
パイプ,デリバリ
|
15731-57B11-000 |
— | ||
| replacements | |||||
|
1
|
1
09247-14029-000 PLUG |
09247-14029-000 |
from US $1.26 |
||
|
1
|
1
15731-57B12-000 PIPE,DELIVERY |
15731-57B12-000 |
US $111.50 |
||
|
1
|
1
15762-61B01-000 GASKET,UNION(14X19X0.84) |
15762-61B01-000 |
US $1.52 |
||
|
2
|
2
01550-08503-000
Bolt
|
01550-08503-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-0850B-000 Bolt |
01550-0850B-000 |
from US $1.22 |
||
|
3
|
3
09247-14029-000 PLUG |
09247-14029-000 |
from US $1.26 |
||
|
4
|
4
15762-61B00-000
Gasket,union(14x19x0.84)
|
15762-61B00-000 |
— | ||
| replacement | |||||
|
4
|
4
15762-61B01-000 GASKET,UNION(14X19X0.84) |
15762-61B01-000 |
US $1.52 |
||
|
5
|
5
15750-82400-000 DUMPER ASSY,PULSATION |
15750-82400-000 |
US $98.80 |
||
|
6
|
6
15763-61B00-000 GASKET,UNION(17X22X0.84) |
15763-61B00-000 |
US $1.52 |
||
|
7
|
7
15160-58B00-000 REGULATOR,PRESSURE |
15160-58B00-000 |
US $187.20 |
||
|
8
|
8
15710-58B00-000 INJECTOR ASSY,FUEL |
15710-58B00-000 |
from US $279.45 |
||
|
9
|
9
15716-58BT0-000 GROMMET SET,FUEL INJECTOR |
15716-58BT0-000 |
from US $14.58 |
||
|
10
|
10
15735-58B00-000 INSULATOR,DELIVERY PIPEInsulator, delivery pipe |
15735-58B00-000 |
US $2.72 |
||
|
11
|
11
09320-08062-000 CUSHION |
09320-08062-000 |
from US $4.32 |
||
|
12
|
12
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $1.01 |
||
|
13
|
13
15762-61B00-000
Gasket,union(14x19x0.84)
|
15762-61B00-000 |
— | ||
| replacement | |||||
|
13
|
13
15762-61B01-000 GASKET,UNION(14X19X0.84) |
15762-61B01-000 |
US $1.52 |
||
