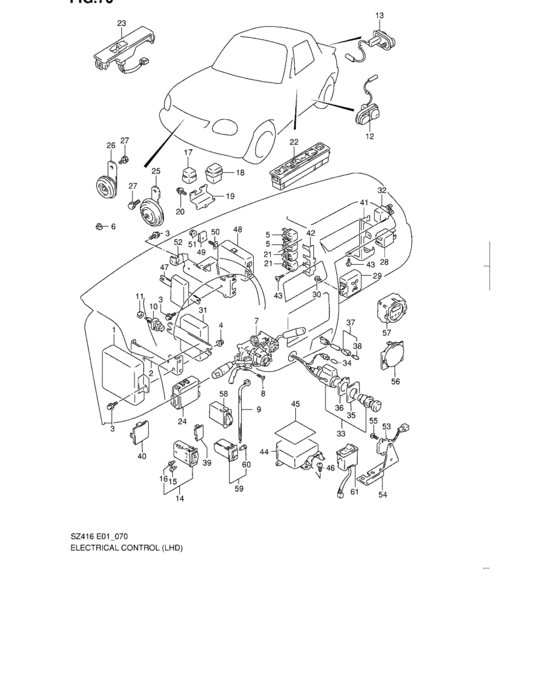

Electrical control (LHD) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33920-79E50-000
CONTROLLER,FUEL INJECTION
Germany |
33920-79E50-000 |
— | ||
|
1
|
1
33920-79E90-000
Controller, fuel injection
Saudi Arabia |
33920-79E90-000 |
— | ||
|
2
|
2
33924-77E10-000 BRACKET,EPI CONT |
33924-77E10-000 |
US $16.67 |
||
|
3
|
3
02162-06103-000
Bolt
Germany |
02162-06103-000 |
— | ||
| replacement | |||||
|
3
|
3
02162-0610A-000 SCREWGermany |
02162-0610A-000 |
from US $0.64 |
||
|
4
|
4
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
38850-50F50-000 RELAY ASSY,MAIN/FUEL PUMP |
38850-50F50-000 |
from US $34 |
||
|
6
|
6
33926-80710-000 RESISTOR,CO ADJUSTSaudi Arabia |
33926-80710-000 |
US $8.10 |
||
|
6
|
6
33927-80710-000 RESISTOR,CO ADJUSTSaudi Arabia |
33927-80710-000 |
US $8.10 |
||
|
6
|
6
33928-80710-000 RESISTOR,CO ADJUSTSaudi Arabia |
33928-80710-000 |
US $8.10 |
||
|
6
|
6
33929-80710-000
RESISTOR,CO ADJUST
Saudi Arabia |
33929-80710-000 |
— | ||
|
6
|
6
33930-80710-000 RESISTOR,CO ADJUSTSaudi Arabia |
33930-80710-000 |
US $8.10 |
||
|
6
|
6
33931-80710-000 RESISTOR,CO ADJUSTSaudi Arabia |
33931-80710-000 |
US $8.10 |
||
|
7
|
7
37400-77E50-000 SWITCH ASSY,COMBGermany |
37400-77E50-000 |
US $489.28 |
||
|
7
|
7
37400-77E40-000
SWITCH ASSY,COMB
Saudi Arabia |
37400-77E40-000 |
— | ||
|
8
|
8
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
9
|
9
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
10
|
10
37740-60D01-000 SWITCH ASSY,STOP LAMP |
37740-60D01-000 |
US $42.40 |
||
|
10
|
10
37740-61B10-000
Switch, stop lamp & lock up
Saudi Arabia:AT |
37740-61B10-000 |
— | ||
| replacement | |||||
|
10
|
10
37740-60G00-000 SWITCH ASSY,STOP LAMPSaudi Arabia:AT |
37740-60G00-000 |
US $23.92 |
||
|
11
|
11
09140-10043-000 NUTNut, tie rod rh thread |
09140-10043-000 |
from US $0.91 |
||
|
12
|
12
37670-60G00-000
Switch assy,door
|
37670-60G00-000 |
— | ||
| replacements | |||||
|
12
|
12
37670-60G01-000 SWITCH ASSY,DOOR |
37670-60G01-000 |
US $22.40 |
||
|
12
|
12
37670-79E01-000 SWITCH ASSY,TRUNK |
37670-79E01-000 |
US $17.19 |
||
|
13
|
13
37670-79E00-000
Switch assy,trunk
|
37670-79E00-000 |
— | ||
| replacement | |||||
|
13
|
13
37670-79E01-000 SWITCH ASSY,TRUNK |
37670-79E01-000 |
US $17.19 |
||
|
14
|
14
37860-70F00-000 SWITCH ASSY,RR DEFOGGER |
37860-70F00-000 |
US $139.20 |
||
|
15
|
15
09471-12135-000 BULB(CLEAR) |
09471-12135-000 |
US $57 |
||
|
16
|
16
37399-60E10-000 BULB,SWITCH(GREEN) |
37399-60E10-000 |
US $10.34 |
||
|
17
|
17
38860-50G20-000 RELAY ASSY,ABS MOTORW/ABS |
38860-50G20-000 |
US $161.60 |
||
|
18
|
18
38863-70G00-000 COVER,ABS RELAYW/ABS |
38863-70G00-000 |
US $6.07 |
||
|
19
|
19
33946-70E30-000
Bracket, abs relay
W/ABS |
33946-70E30-000 |
— | ||
|
20
|
20
02162-06103-000
Bolt
W/ABS |
02162-06103-000 |
— | ||
| replacement | |||||
|
20
|
20
02162-0610A-000 SCREWW/ABS |
02162-0610A-000 |
from US $0.64 |
||
|
21
|
21
38850-50F50-000 RELAY ASSY,MAIN/FUEL PUMP |
38850-50F50-000 |
from US $34 |
||
|
22
|
22
37990-56B61-H2H
Switch, power window master
TYPE 1 |
37990-56B61-H2H |
— | ||
| replacement | |||||
|
22
|
22
37990-56B62-H2H
SWITCH ASSY,P/W MASTER
TYPE 1 |
37990-56B62-H2H |
— | ||
|
22
|
22
37990-56B61-H2J
Switch, power win. master
TYPE 2 |
37990-56B61-H2J |
— | ||
| replacement | |||||
|
22
|
22
37990-56B62-H2J SWITCH ASSY,P/W MASTERTYPE 2 |
37990-56B62-H2J |
US $338.56 |
||
|
23
|
23
37995-56B60-H2H
SWITCH ASSY,P/W SUB
TYPE 1 |
37995-56B60-H2H |
— | ||
|
23
|
23
37995-56B60-H2J SWITCH ASSY,P/W SUBTYPE 2 |
37995-56B60-H2J |
US $81.33 |
||
|
24
|
24
38700-77E10-000 CONTROLLER ASSY,PWR DR LOCK |
38700-77E10-000 |
US $198.72 |
||
|
25
|
25
38500-60A10-000
Horn assy, high pitched
TYPE 1 |
38500-60A10-000 |
— | ||
| replacement | |||||
|
25
|
25
38500-70E10-000 HORN ASSY,HIGH PITCHEDTYPE 1 |
38500-70E10-000 |
US $71.39 |
||
|
25
|
25
38500-60A00-000
ホーンアッシ
TYPE 2 |
38500-60A00-000 |
— | ||
| replacement | |||||
|
25
|
25
38500-60A01-000 HORN ASSYTYPE 2 |
38500-60A01-000 |
US $100 |
||
|
26
|
26
38500-86100-000
ホーンアッシ
|
38500-86100-000 |
— | ||
| replacement | |||||
|
26
|
26
38500-70E00-000 HORN ASSY,LOW PITCHED |
38500-70E00-000 |
US $74.40 |
||
|
27
|
27
01570-08123-000
Bolt
|
01570-08123-000 |
— | ||
| replacement | |||||
|
27
|
27
01570-0812A-000 Bolt |
01570-0812A-000 |
US $14.40 |
||
|
28
|
28
38610-84001-000
リレー,ターンシグナル/4ウェイ
<-38610-50A01 |
38610-84001-000 |
— | ||
| replacement | |||||
|
28
|
28
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way <-38610-50A01 |
38610-76G00-000 |
US $56.80 |
||
|
29
|
29
38590-77E10-000 CONTROLLER,WARNING BUZZER |
38590-77E10-000 |
US $138 |
||
|
29
|
29
38590-60B00-000
Buzzer assy,warning
Saudi Arabia |
38590-60B00-000 |
— | ||
|
30
|
30
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
30
|
30
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
31
|
31
38880-79E20-000
Controller assy, at
AT |
38880-79E20-000 |
— | ||
|
32
|
32
38850-50F50-000 RELAY ASSY,MAIN/FUEL PUMP |
38850-50F50-000 |
from US $34 |
||
|
33
|
33
39400-86821-000 LIGHTER ASSY,CIGARETTE |
39400-86821-000 |
US $27.20 |
||
|
34
|
34
09471-12055-000 BULB(14V1.4W,T5) |
09471-12055-000 |
from US $2.40 |
||
|
35
|
35
39471-60A00-000 RIM,CIGARETTE |
39471-60A00-000 |
US $4.23 |
||
|
36
|
36
39472-82000-000 WASHER,CIGARETTE LIGHTER |
39472-82000-000 |
US $1.25 |
||
|
37
|
37
36550-60E00-000 LAMP ASSY,ASHTRAY ILLUM |
36550-60E00-000 |
US $21.90 |
||
|
38
|
38
09471-12091-000 BULB(12V1.4W G30) |
09471-12091-000 |
US $28 |
||
|
39
|
39
37285-60E00-000 CAP,OPTION SW HOLE |
37285-60E00-000 |
US $2.24 |
||
|
40
|
40
37955-60E00-000 CAP,MIRROR SW HOLE |
37955-60E00-000 |
US $4.31 |
||
|
41
|
41
38851-77E00-000
BRACKET,RELAY
|
38851-77E00-000 |
— | ||
|
42
|
42
38851-77E10-000
BRACKET,RELAY
|
38851-77E10-000 |
— | ||
|
43
|
43
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
43
|
43
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
44
|
44
38910-70E40-000 CONTROLLER ASSY,AIR BAGW/AIR BAG |
38910-70E40-000 |
US $1,048.96 |
||
|
45
|
45
38912-77E00-000
COVER,CONTROLLER
W/AIR BAG |
38912-77E00-000 |
— | ||
|
46
|
46
09129-06006-000 SCREW(6X18)W/AIR BAG |
09129-06006-000 |
US $14 |
||
|
47
|
47
33970-70E02-000
Controller, immobilizer
Germany |
33970-70E02-000 |
— | ||
| replacement | |||||
|
47
|
47
33970-70E03-000 CONTROLLER ASSY,IMMOBILIZERGermany |
33970-70E03-000 |
US $478.72 |
||
|
48
|
48
33940-70E10-000
コントローラアッシ,ABS
W/ABS |
33940-70E10-000 |
— | ||
| replacement | |||||
|
48
|
48
33940-70E11-000
CONTROLLER ASSY,ABS
W/ABS |
33940-70E11-000 |
— | ||
|
49
|
49
38913-50D00-000
SPACER,MODULE
W/ABS |
38913-50D00-000 |
— | ||
|
50
|
50
36886-50D00-000
BOLT,MODULE
W/ABS |
36886-50D00-000 |
— | ||
|
51
|
51
08316-10053-000
Nut
W/ABS |
08316-10053-000 |
— | ||
| replacement | |||||
|
51
|
51
08316-1005A-000 NUTW/ABS |
08316-1005A-000 |
from US $0.77 |
||
|
52
|
52
33946-70E11-000
BRACKET,ABS CONT
W/ABS |
33946-70E11-000 |
— | ||
|
53
|
53
33945-70E00-000
SENSOR ASSY,G
W/ABS |
33945-70E00-000 |
— | ||
|
54
|
54
33946-70E00-000
BRACKET,G SENSOR
W/ABS |
33946-70E00-000 |
— | ||
|
55
|
55
02112-04083-000
Screw
W/ABS |
02112-04083-000 |
— | ||
| replacement | |||||
|
55
|
55
02112-0408A-000 SCREWW/ABS |
02112-0408A-000 |
from US $0.80 |
||
|
56
|
56
39161-79E00-000
COVER,CLOCK HOLE
N/CLOCK |
39161-79E00-000 |
— | ||
|
57
|
57
34600-60A00-000
CLOCK ASSY
W/CLOCK |
34600-60A00-000 |
— | ||
|
58
|
58
35180-79E00-000
Switch, headlamp leveling
Germany |
35180-79E00-000 |
— | ||
|
59
|
59
37280-60G00-000
SWITCH ASSY,RR FOG LAMP
Germany |
37280-60G00-000 |
— | ||
|
60
|
60
37399-60E10-000 BULB,SWITCH(GREEN)Germany |
37399-60E10-000 |
US $10.34 |
||
|
61
|
61
37865-56B00-000 SWITCH ASSY,PWR NORMAL CHANGEAT |
37865-56B00-000 |
US $51.15 |
||
