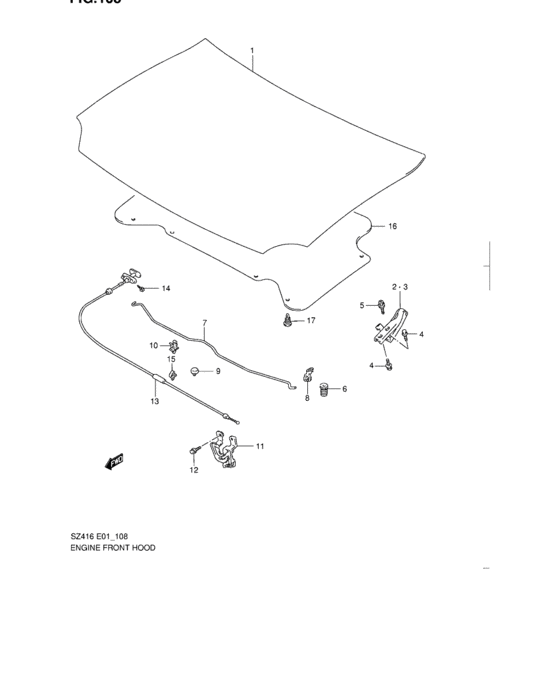

Engine front hood (ENGINE FRONT HOOD) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58300-79810-000
パネルアッシ,フロントフード
|
58300-79810-000 |
— | ||
| replacement | |||||
|
1
|
1
58300-79811-000
PANEL SET,FRONT HOOD
|
58300-79811-000 |
— | ||
|
2
|
2
58410-79E00-000
HINGE,FR HOOD,R
|
58410-79E00-000 |
— | ||
|
3
|
3
58430-79E00-000
HINGE,FR HOOD,L
|
58430-79E00-000 |
— | ||
|
4
|
4
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
4
|
4
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
5
|
5
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
5
|
5
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
6
|
6
72372-82000-000 CUSHION,BACK DR SIDECushion |
72372-82000-000 |
from US $2.12 |
||
|
7
|
7
72431-79E00-000
ステー,フロントフード
|
72431-79E00-000 |
— | ||
|
8
|
8
09209-14001-000 LINKAGE |
09209-14001-000 |
from US $1.55 |
||
|
9
|
9
09321-10023-000 CUSHION |
09321-10023-000 |
from US $1.82 |
||
|
10
|
10
09403-07307-5PK CLAMP |
09403-07307-5PK |
from US $1.62 |
||
|
11
|
11
82110-79E10-000
LATCH,HOOD
LHD |
82110-79E10-000 |
— | ||
|
11
|
11
82110-79E00-000
LATCH,HOOD
RHD |
82110-79E00-000 |
— | ||
|
12
|
12
01580-06123-000
Bolt
|
01580-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
01580-0612B-000 Bolt |
01580-0612B-000 |
US $0.96 |
||
|
12
|
12
01580-0612A-000 Bolt |
01580-0612A-000 |
from US $0.91 |
||
|
13
|
13
82160-79E00-000 CABLE,HOOD LATCH RELEASE |
82160-79E00-000 |
US $84 |
||
|
14
|
14
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
15
|
15
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
16
|
16
75270-79E00-000
SILENCER,FRONT HOOD
,2 |
75270-79E00-000 |
— | ||
|
17
|
17
09409-06309-5ES CLIP(BLACK),2 |
09409-06309-5ES |
from US $1.44 |
||
