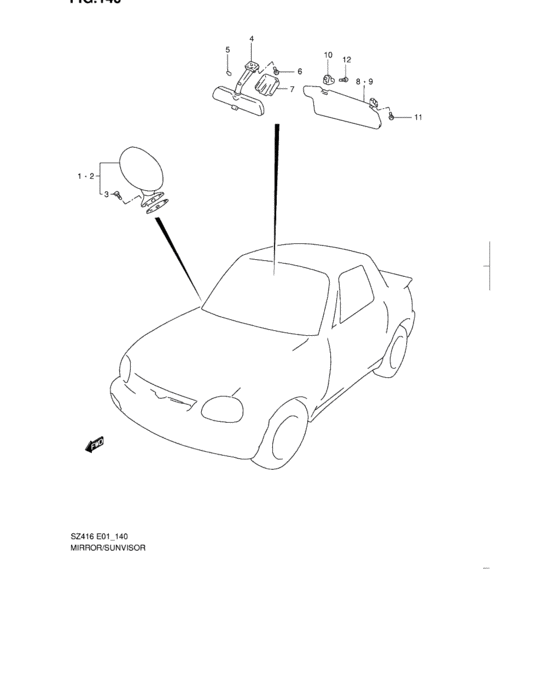

Mirror / sunvisor (MIRROR / SUNVISOR) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84701-79E00-0CE
MIRROR ASSY,RR VIEW,R
|
84701-79E00-0CE |
— | ||
|
1
|
1
84701-79E10-0CE
MIRROR ASSY,RR VIEW,R
Australia |
84701-79E10-0CE |
— | ||
|
1
|
1
84701-79E30-0CE
Mirror assy, rear view rh
Saudi Arabia |
84701-79E30-0CE |
— | ||
|
2
|
2
84702-79E00-0CE
MIRROR ASSY,RR VIEW,L
|
84702-79E00-0CE |
— | ||
|
2
|
2
84702-79E30-0CE
Mirror assy, rear view lh
Saudi Arabia |
84702-79E30-0CE |
— | ||
|
3
|
3
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
| replacements | |||||
|
3
|
3
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
3
|
3
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
4
|
4
84703-62A01-5PK
MIRROR ASSY,INS RR VIEW
TYPE 1 |
84703-62A01-5PK |
— | ||
|
4
|
4
84703-62A01-T01
MIRROR ASSY,INS RR VIEW
TYPE 2 |
84703-62A01-T01 |
— | ||
|
5
|
5
84782-60A00-000 RUBBER |
84782-60A00-000 |
US $2.24 |
||
|
6
|
6
02142-05163-000
Bolt
|
02142-05163-000 |
— | ||
| replacements | |||||
|
6
|
6
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.80 |
||
|
6
|
6
02142-0516A-000 SCREWScrew |
02142-0516A-000 |
from US $0.76 |
||
|
7
|
7
84781-60A00-5PK COVER,INSIDE MIRROR STAYTYPE 1 |
84781-60A00-5PK |
US $2.74 |
||
|
7
|
7
84781-60A00-6GS
COVER,INSIDE MIRROR STAY
TYPE 2 |
84781-60A00-6GS |
— | ||
|
8
|
8
84801-79E71-6NY
Sunvisor assy, rh
Germany |
84801-79E71-6NY |
— | ||
|
8
|
8
84801-79E40-6NY
Sunvisor assy, rh
Saudi Arabia |
84801-79E40-6NY |
— | ||
|
8
|
8
84801-79E00-6NY
Sunvisor assy, rh
RHD,N/AIR BAG |
84801-79E00-6NY |
— | ||
|
8
|
8
84801-79E30-6NY
Sunvisor assy, rh
RHD,W/AIR BAG |
84801-79E30-6NY |
— | ||
|
9
|
9
84802-79E30-6NY
Sunvisor assy, lh
Germany |
84802-79E30-6NY |
— | ||
|
9
|
9
84802-79E00-6NY
Sunvisor assy, lh
Saudi Arabia |
84802-79E00-6NY |
— | ||
|
9
|
9
84802-79E40-6NY
Sunvisor assy, lh
RHD |
84802-79E40-6NY |
— | ||
|
9
|
9
84802-79E71-6NY
Sunvisor assy, lh
RHD,W/AIR BAG PASSENGER SEAT |
84802-79E71-6NY |
— | ||
|
10
|
10
84851-50G00-6GS
HOLDER,SUN VISOR
|
84851-50G00-6GS |
— | ||
|
11
|
11
02122-05163-000
Screw, inner
|
02122-05163-000 |
— | ||
| replacement | |||||
|
11
|
11
02122-0516B-000 SCREW |
02122-0516B-000 |
from US $0.80 |
||
|
12
|
12
03211-05163-000
Screw
|
03211-05163-000 |
— | ||
| replacement | |||||
|
12
|
12
03211-0516A-000 SCREW |
03211-0516A-000 |
US $0.80 |
||
