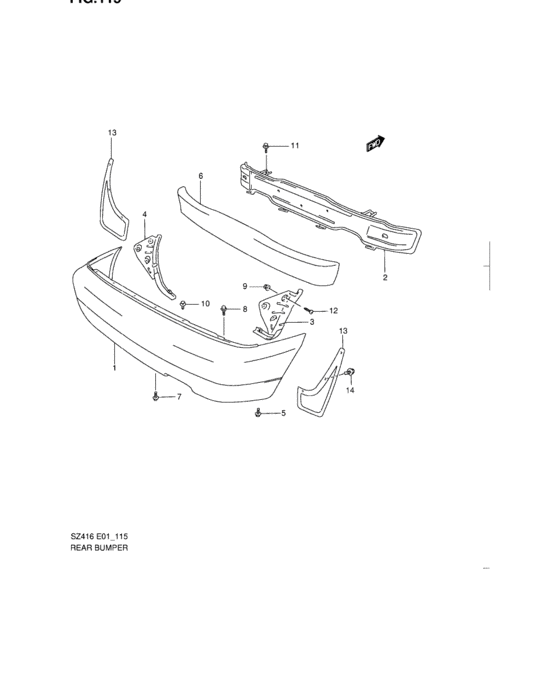

Rear bumper (REAR BUMPER) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71811-79E00-799
BUMPER,RR(PRIMARY)
PAINT TO MATCH |
71811-79E00-799 |
— | ||
|
2
|
2
71820-79E00-000
MEMBER,RR BUMPER
|
71820-79E00-000 |
— | ||
|
3
|
3
71840-79E00-000
SUPPORT,REAR BUMPER,R
|
71840-79E00-000 |
— | ||
|
4
|
4
71860-79E00-000
SUPPORT,REAR BUMPER,L
|
71860-79E00-000 |
— | ||
|
5
|
5
71869-60A00-000
ボルト,リヤバンパ
|
71869-60A00-000 |
— | ||
| replacement | |||||
|
5
|
5
71869-60A02-000 BOLT,RR BUMPER |
71869-60A02-000 |
US $1.60 |
||
|
6
|
6
71891-79E00-000
ABSORBER,RR BUMPER
|
71891-79E00-000 |
— | ||
|
7
|
7
09139-06081-000 Screw, plate (6x10) |
09139-06081-000 |
US $3.82 |
||
| replacements | |||||
|
7
|
7
09122-66007-000 SCREW(6X14) |
09122-66007-000 |
from US $0.80 |
||
|
7
|
7
09122-66004-000
Screw,6x14
|
09122-66004-000 |
— | ||
|
8
|
8
09139-06081-000 Screw, plate (6x10) |
09139-06081-000 |
US $3.82 |
||
| replacements | |||||
|
8
|
8
09122-66007-000 SCREW(6X14) |
09122-66007-000 |
from US $0.80 |
||
|
8
|
8
09122-66004-000
Screw,6x14
|
09122-66004-000 |
— | ||
|
9
|
9
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
10
|
10
09409-07325-5PK CLIP(BLACK) |
09409-07325-5PK |
from US $1.37 |
||
|
11
|
11
01580-08163-000
Bolt, bracket
|
01580-08163-000 |
— | ||
| replacement | |||||
|
11
|
11
01580-0816A-000 Bolt |
01580-0816A-000 |
from US $0.96 |
||
|
12
|
12
03241-06163-000
スクリュ
|
03241-06163-000 |
— | ||
| replacement | |||||
|
12
|
12
03241-0616C-000 SCREW |
03241-0616C-000 |
from US $0.76 |
||
|
13
|
13
72261-79E00-000
Flap,rear mud
Australia |
72261-79E00-000 |
— | ||
|
14
|
14
01550-06163-000
Bolt
Australia |
01550-06163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0616B-000 BOLTAustralia |
01550-0616B-000 |
from US $0.76 |
||
|
14
|
14
01550-0616A-000 BOLTAustralia |
01550-0616A-000 |
from US $0.76 |
||
