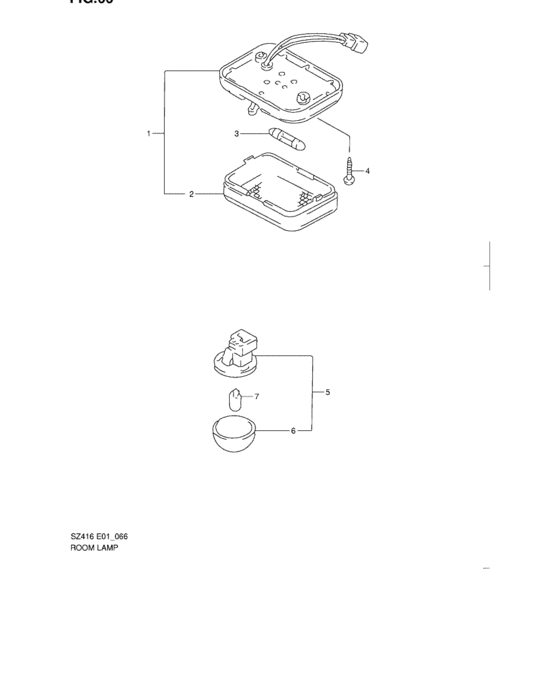

Room lamp (ROOM LAMP) Diagram Suzuki X90
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36210-60A00-5EH LAMP ASSY,ROOMTYPE 1 |
36210-60A00-5EH |
US $104 |
||
|
1
|
1
36210-60A00-6GS LAMP ASSY,ROOMTYPE 2 |
36210-60A00-6GS |
US $60.35 |
||
|
2
|
2
36212-60A00-000 LENS,ROOM LAMP |
36212-60A00-000 |
US $28 |
||
|
3
|
3
09471-12073-000 BULB(12V,5W) |
09471-12073-000 |
from US $2.40 |
||
|
4
|
4
03211-04163-000
Screw
|
03211-04163-000 |
— | ||
| replacement | |||||
|
4
|
4
03211-0416A-000 SCREW |
03211-0416A-000 |
from US $0.76 |
||
|
5
|
5
36230-70C00-000 LAMP ASSY,TRUNK ROOM |
36230-70C00-000 |
US $22.26 |
||
|
6
|
6
36232-70C00-000 LENS,TRUNK ROOM LAMP |
36232-70C00-000 |
US $4.31 |
||
|
7
|
7
09471-12094-000 BULB(12V2CP) |
09471-12094-000 |
US $28 |
||
