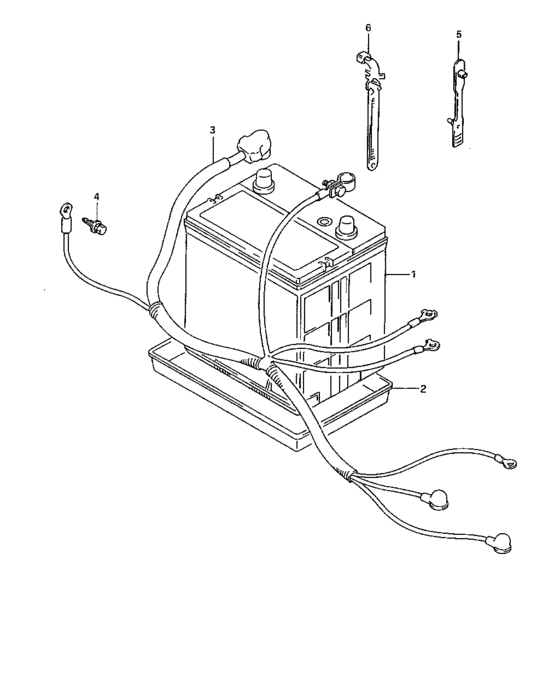

Battery (BATTERY) Diagram Suzuki X90
- Year
- -
- Sales region
- Canada
- drive
- 4WD
- transmission
- MT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-60G20-000
Battery assy
|
33610-60G20-000 |
— | ||
|
1
|
1
33610-60G30-000
Battery assy
Canada |
33610-60G30-000 |
— | ||
|
2
|
2
33660-60G00-000 TRAY,BATTERY |
33660-60G00-000 |
US $32 |
||
|
3
|
3
33800-79E00-000
Cable assy,btry
|
33800-79E00-000 |
— | ||
|
4
|
4
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
4
|
4
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
5
|
5
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
6
|
6
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
US $2.08 |
||
