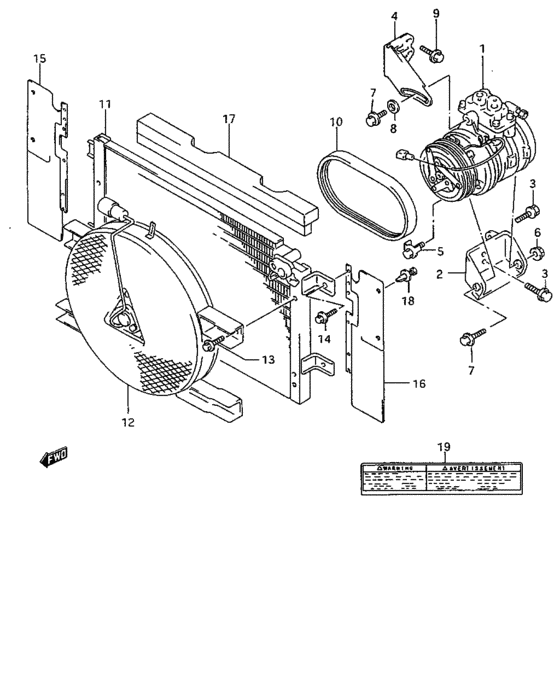

Compressor and condenser (COMPRESSOR AND CONDENSER) Diagram Suzuki X90
- Year
- -
- Sales region
- Canada
- drive
- 4WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95000-79E50-000
Air conditioner set
|
95000-79E50-000 |
— | ||
|
1
|
1
95200-67A50-000
COMPRESSOR&MAGNET CLUTCH
|
95200-67A50-000 |
— | ||
|
2
|
2
95130-57B50-000 BRACKET,CPRSR POWER STRG |
95130-57B50-000 |
US $94.21 |
||
|
3
|
3
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
3
|
3
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
4
|
4
95120-57B50-000
STAY,COMPRESSOR
|
95120-57B50-000 |
— | ||
|
5
|
5
95911-82000-000
BOLT,CPRSR HOLD
|
95911-82000-000 |
— | ||
|
6
|
6
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
7
|
7
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
8
|
8
09160-08501-000 WASHER(8.5X24X2.3)Washer |
09160-08501-000 |
from US $1.60 |
||
|
9
|
9
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
9
|
9
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
10
|
10
95141-64A60-000 V-BELT,4PK 935 |
95141-64A60-000 |
US $57.04 |
||
| replacement | |||||
|
10
|
10
95141-64A60-CDN
Belt,air cond
|
95141-64A60-CDN |
— | ||
|
11
|
11
95310-79E50-000
C0ndenser assy
|
95310-79E50-000 |
— | ||
|
12
|
12
95560-79E50-000
FAN ASSY
|
95560-79E50-000 |
— | ||
|
13
|
13
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
01570-0612B-000 BOLTBolt, upper |
01570-0612B-000 |
US $0.80 |
||
|
13
|
13
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
|
14
|
14
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
15
|
15
95821-79E00-000
インシュレータ,ライト
|
95821-79E00-000 |
— | ||
|
16
|
16
95822-79E00-000
インシュレータ,レフト
|
95822-79E00-000 |
— | ||
|
17
|
17
95364-60A02-000
INSULATOR,RADIATOR UPR
|
95364-60A02-000 |
— | ||
|
18
|
18
09409-07022-000 CLIP |
09409-07022-000 |
from US $1.40 |
||
|
19
|
19
95951-67A00-000
PLATE,WARNING A/C
|
95951-67A00-000 |
— | ||
