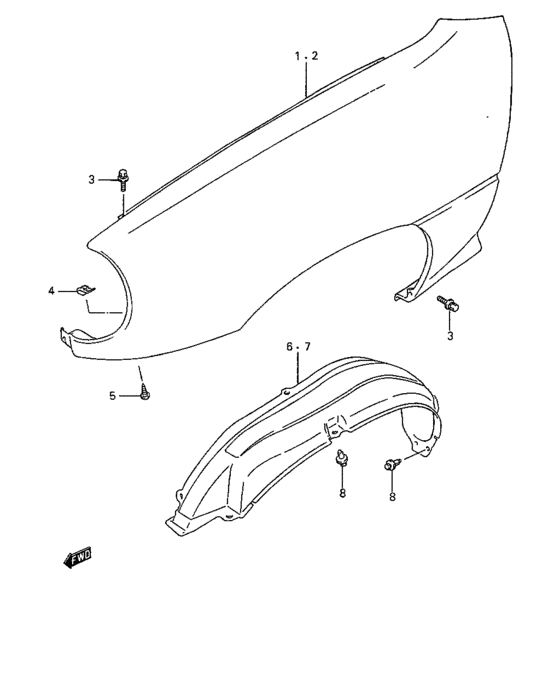

Front fender and lining (FRONT FENDER AND LINING) Diagram Suzuki X90
- Year
- -
- Sales region
- Canada
- drive
- 4WD
- transmission
- MT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58600-79810-000
Panel assy, front fender rh
|
58600-79810-000 |
— | ||
| replacement | |||||
|
1
|
1
58600-79811-000
PANEL SET,FR FENDER,R
|
58600-79811-000 |
— | ||
|
2
|
2
58800-79810-000
Panel assy, front fender lh
|
58800-79810-000 |
— | ||
| replacement | |||||
|
2
|
2
58800-79811-000
Panel set,fr fender,lh
|
58800-79811-000 |
— | ||
|
3
|
3
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
3
|
3
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
4
|
4
09148-06013-000 NUT |
09148-06013-000 |
US $1.52 |
||
|
5
|
5
03241-06103-000
New Genuine Part
|
03241-06103-000 |
— | ||
| replacement | |||||
|
5
|
5
03241-0610A-000 SCREW |
03241-0610A-000 |
US $0.76 |
||
|
6
|
6
72481-79E00-000 LINING,FR FENDER,R |
72481-79E00-000 |
US $137.60 |
||
|
6
|
6
72481-79E01-000
Lining,front fender,r
JS3LA11S T4101049~,JS3LB11S T4103664~ |
72481-79E01-000 |
— | ||
|
7
|
7
72482-79E00-000
Lining,front fender,l
|
72482-79E00-000 |
— | ||
|
7
|
7
72482-79E01-000
Lining,front fender,l
JS3LA11S T4101049~,JS3LB11S T4103664~ |
72482-79E01-000 |
— | ||
|
8
|
8
09409-07303-5ES CLIP(BLACK) |
09409-07303-5ES |
US $1.52 |
||
