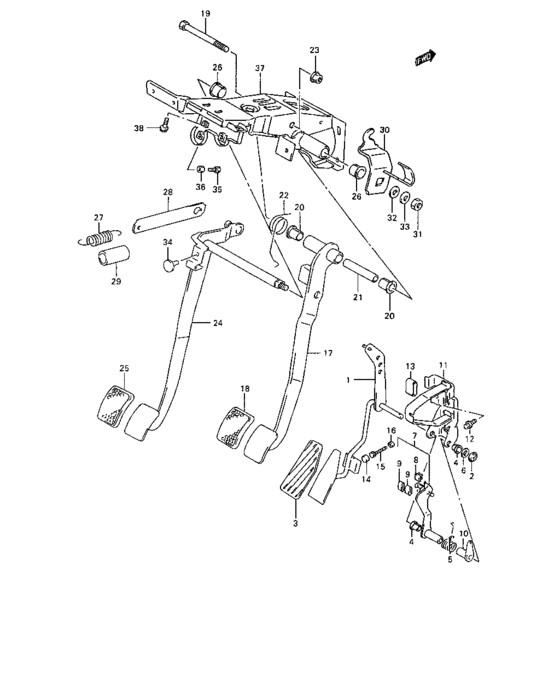

Pedal and pedal bracket (MT:W/AUTO CRUISE) Diagram Suzuki X90
- Year
- -
- Sales region
- Canada
- drive
- 4WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-62A51-000 PEDAL,ACCELERATOR |
49410-62A51-000 |
US $32.38 |
||
|
2
|
2
09148-09001-000 NUT |
09148-09001-000 |
from US $2.02 |
||
|
3
|
3
49451-60B00-000 PAD,ACCELERATOR PEDAL |
49451-60B00-000 |
US $9.44 |
||
|
4
|
4
09307-09001-000 BUSH |
09307-09001-000 |
US $39.70 |
||
|
5
|
5
49557-65D50-000
SPRING,ACCEL PEDAL RETURN
|
49557-65D50-000 |
— | ||
|
6
|
6
09160-09007-000 Washer 9.5x20x1 |
09160-09007-000 |
US $1.82 |
||
| replacement | |||||
|
6
|
6
09160-09016-000 WASHER(9.5X20X1) |
09160-09016-000 |
from US $0.91 |
||
|
7
|
7
49550-60A00-000
ARM,CRUISE CONTROL
|
49550-60A00-000 |
— | ||
|
8
|
8
49555-60A00-000
CUSHION,CRUISE CONTROL
|
49555-60A00-000 |
— | ||
|
9
|
9
09329-01007-000 CUSHION |
09329-01007-000 |
from US $3.74 |
||
|
10
|
10
49556-60A00-000
BUSH
|
49556-60A00-000 |
— | ||
|
11
|
11
49560-60A01-000
Bracket, accelerator
|
49560-60A01-000 |
— | ||
|
12
|
12
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
01570-0612B-000 BOLTBolt, upper |
01570-0612B-000 |
US $0.80 |
||
|
12
|
12
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
|
13
|
13
49416-60A00-000 CUSHION,ACCEL PEDAL RETURN |
49416-60A00-000 |
US $2.10 |
||
|
14
|
14
09251-09002-000
CAP(OD:13.6)
|
09251-09002-000 |
— | ||
| replacement | |||||
|
14
|
14
09251-09008-000 Cap(Od:13.6) |
09251-09008-000 |
from US $5.61 |
||
|
15
|
15
09100-06150-000 BOLT(6X31)Bolt, adjuster |
09100-06150-000 |
from US $3.15 |
||
|
16
|
16
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
16
|
16
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
16
|
16
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
17
|
17
49610-62A51-000
PEDAL,BRAKE
|
49610-62A51-000 |
— | ||
|
18
|
18
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
18
|
18
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.59 |
||
|
19
|
19
09100-10226-000 BOLT(10X85) |
09100-10226-000 |
US $14.40 |
||
|
20
|
20
09307-13005-000 BUSHBushing |
09307-13005-000 |
from US $2.72 |
||
|
21
|
21
09180-10121-000 SPACER(10.1X13X73.8) |
09180-10121-000 |
US $30.20 |
||
|
22
|
22
49691-62A00-000 SPRING,BRAKE PEDAL RETURN |
49691-62A00-000 |
US $7.03 |
||
|
23
|
23
08316-20103-000
Nut
|
08316-20103-000 |
— | ||
| replacement | |||||
|
23
|
23
08316-2010B-000 NUT |
08316-2010B-000 |
from US $0.76 |
||
|
24
|
24
49810-62A52-000
PEDAL,CLUTCH
|
49810-62A52-000 |
— | ||
|
25
|
25
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
25
|
25
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.59 |
||
|
26
|
26
09307-13005-000 BUSHBushing |
09307-13005-000 |
from US $2.72 |
||
|
27
|
27
49818-77500-000 SPRING,CLUTCH PEDAL |
49818-77500-000 |
US $13.76 |
||
|
28
|
28
49831-62A50-000
ARM,CL RETURN SPRING
|
49831-62A50-000 |
— | ||
|
29
|
29
49821-77500-000
TUBE,CL RETURN SPRING
|
49821-77500-000 |
— | ||
|
30
|
30
49820-62A71-000
LEVER,CLUTCH PEDAL
|
49820-62A71-000 |
— | ||
|
31
|
31
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
31
|
31
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
31
|
31
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
32
|
32
08322-01103-000
Washer
|
08322-01103-000 |
— | ||
| replacements | |||||
|
32
|
32
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
32
|
32
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
33
|
33
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
33
|
33
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
33
|
33
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
34
|
34
09321-06026-000 CUSHION |
09321-06026-000 |
from US $1.60 |
||
|
35
|
35
09100-06088-000 BOLT(6X30) |
09100-06088-000 |
US $22.40 |
||
|
36
|
36
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
36
|
36
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
36
|
36
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
37
|
37
49710-62A82-000
BRACKET,PEDAL
|
49710-62A82-000 |
— | ||
|
38
|
38
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
38
|
38
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
38
|
38
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
