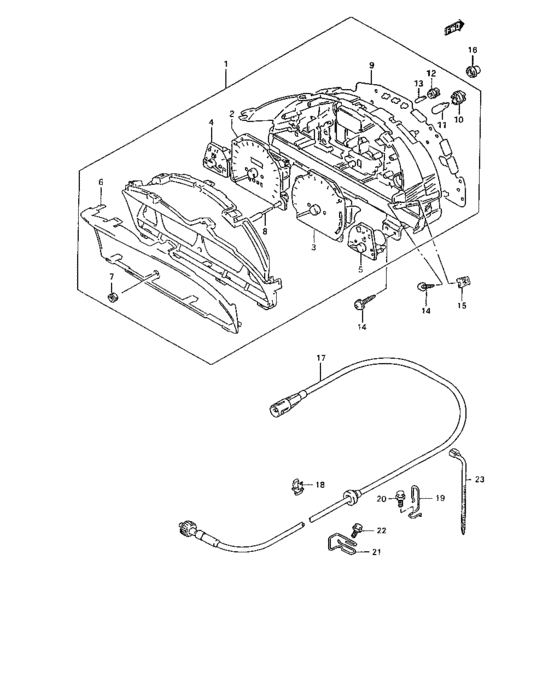

Speedometer (SPEEDOMETER) Diagram Suzuki X90
- Year
- -
- Sales region
- Canada
- drive
- 4WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34101-79EP0-000
Meter assy
|
34101-79EP0-000 |
— | ||
|
1
|
1
34101-79EU0-000
Meter assy
Canada |
34101-79EU0-000 |
— | ||
|
2
|
2
34120-79EF0-000
Body assy,speedometer
|
34120-79EF0-000 |
— | ||
|
2
|
2
34120-79EK0-000
Body assy, speedometer
Canada |
34120-79EK0-000 |
— | ||
|
3
|
3
34220-79EF0-000
Body assy, tachometer
|
34220-79EF0-000 |
— | ||
|
3
|
3
34220-79E00-000
BODY ASSY,TACHOMETER
Canada |
34220-79E00-000 |
— | ||
|
4
|
4
34320-67E20-000
BODY ASSY,FUEL METER
|
34320-67E20-000 |
— | ||
|
5
|
5
34420-67E20-000 BODY ASSY,TEMP METER |
34420-67E20-000 |
US $83.54 |
||
|
6
|
6
34112-67E20-000 GLASS,METER WINDOW |
34112-67E20-000 |
US $33.44 |
||
|
7
|
7
34145-60B00-000 GROMMET |
34145-60B00-000 |
US $2.13 |
||
|
8
|
8
34141-60E10-000 KNOB,TRIP METER |
34141-60E10-000 |
US $6.59 |
||
|
9
|
9
34152-77EG0-000
PLATE,PRINTED
|
34152-77EG0-000 |
— | ||
|
10
|
10
34172-50E10-000 SOCKET |
34172-50E10-000 |
US $1.60 |
||
|
11
|
11
09471-12131-000 BULB(12V3.4W G20) |
09471-12131-000 |
US $40.50 |
||
|
12
|
12
34175-78900-000 SOCKET,Canada:4WD |
34175-78900-000 |
US $1.52 |
||
|
13
|
13
09471-12055-000 BULB(14V1.4W,T5),Canada:4WD |
09471-12055-000 |
from US $2.40 |
||
|
14
|
14
03541-05203-000
Screw
|
03541-05203-000 |
— | ||
| replacement | |||||
|
14
|
14
03541-0520A-000 SCREW |
03541-0520A-000 |
from US $0.76 |
||
|
15
|
15
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
16
|
16
34955-60E00-000 BUSH |
34955-60E00-000 |
US $2.40 |
||
|
17
|
17
34910-79E10-000
Cable assy, speedometer
MT:4WD |
34910-79E10-000 |
— | ||
| replacement | |||||
|
17
|
17
34910-61A50-000
CABLE ASSY,SPEEDOMETER
MT:4WD |
34910-61A50-000 |
— | ||
|
17
|
17
34910-61A50-000
CABLE ASSY,SPEEDOMETER
MT:4WD,JS3LB11S T4102990~ |
34910-61A50-000 |
— | ||
|
18
|
18
09403-07306-000 CLAMPClamp |
09403-07306-000 |
from US $2.56 |
||
|
19
|
19
34926-60A00-000 CLAMP,SPEEDOMETER CABLE,NO.3MT |
34926-60A00-000 |
US $9.12 |
||
|
20
|
20
02162-06163-000
Screw
MT |
02162-06163-000 |
— | ||
| replacement | |||||
|
20
|
20
02162-0616B-000 SCREWBolt, adjust MT |
02162-0616B-000 |
from US $0.80 |
||
|
23
|
23
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
