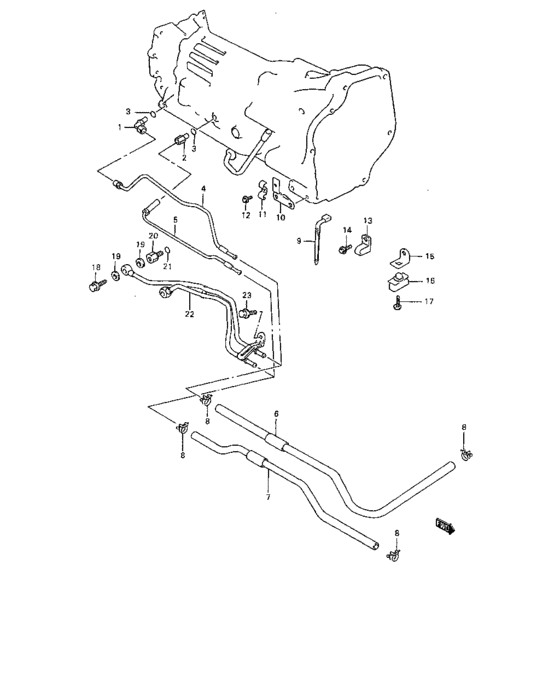

At oil hose (AT:96,97 MODEL) Diagram Suzuki X90
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24744-57B00-000
ELBOW,OIL INLET
|
24744-57B00-000 |
— | ||
|
2
|
2
24743-57B01-000 UNION,OIL OUTLET |
24743-57B01-000 |
US $20.79 |
||
|
3
|
3
29737-57B00-000 O-RING,OIL PIPE |
29737-57B00-000 |
from US $2.28 |
||
|
4
|
4
22910-57B01-000
PIPE,OIL INLET
|
22910-57B01-000 |
— | ||
|
5
|
5
22920-57B01-000 PIPE,OIL OUTLET |
22920-57B01-000 |
US $24.84 |
||
|
6
|
6
24891-56X52-000 HOSE SET96 MODEL,L:1000->890 |
24891-56X52-000 |
US $52.99 |
||
|
6
|
6
22931-57B10-000
Hose,oil inlet
97 MODEL |
22931-57B10-000 |
— | ||
|
7
|
7
24891-56X52-000 HOSE SET96 MODEL,L:1000->630 |
24891-56X52-000 |
US $52.99 |
||
|
7
|
7
22932-57B10-000
Hose,oil outlet
97 MODEL |
22932-57B10-000 |
— | ||
|
8
|
8
09400-15302-000
Clamp
96 MODEL |
09400-15302-000 |
— | ||
| replacement | |||||
|
8
|
8
09400-15311-000 CLAMP96 MODEL |
09400-15311-000 |
US $23.20 |
||
|
8
|
8
09401-13415-000
クランプ
97 MODEL |
09401-13415-000 |
— | ||
| replacement | |||||
|
8
|
8
09401-13419-000 CLIP97 MODEL |
09401-13419-000 |
from US $1.60 |
||
|
9
|
9
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
10
|
10
24895-57B00-000
BRACKET,OIL PIPE CLAMP
96 MODEL |
24895-57B00-000 |
— | ||
|
11
|
11
24899-85500-000
PLATE,OIL PIPE
|
24899-85500-000 |
— | ||
|
12
|
12
01550-06103-000
Bolt, front
96 MODEL |
01550-06103-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0610B-000 BoltBolt 96 MODEL |
01550-0610B-000 |
from US $0.80 |
||
|
12
|
12
01550-0610A-000 BOLT96 MODEL |
01550-0610A-000 |
from US $0.80 |
||
|
13
|
13
09404-10418-000
CLAMP(L:137)
|
09404-10418-000 |
— | ||
|
14
|
14
01550-10163-000
Bolt
|
01550-10163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-1016B-000 BoltPlug, oil gallery |
01550-1016B-000 |
from US $0.96 |
||
|
14
|
14
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $4.96 |
||
|
15
|
15
22935-61A00-000
Bracket,oil hose clamp,no.2
|
22935-61A00-000 |
— | ||
| replacement | |||||
|
15
|
15
22935-61A10-000 BRACKET,OIL HOSE CLAMP,NO.2 |
22935-61A10-000 |
US $3.53 |
||
|
16
|
16
09403-14309-000 CLAMP |
09403-14309-000 |
US $4.32 |
||
|
17
|
17
03542-06253-000
Screw
|
03542-06253-000 |
— | ||
| replacement | |||||
|
17
|
17
03542-0625B-000 SCREW |
03542-0625B-000 |
US $0.80 |
||
|
18
|
18
09360-14012-000 BOLT,14X27Bolt, union (14x27) 97 MODEL |
09360-14012-000 |
from US $6.88 |
||
|
19
|
19
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union 97 MODEL |
09168-14015-000 |
from US $1.17 |
||
|
20
|
20
24743-57B10-000 UNION,OIL97 MODEL |
24743-57B10-000 |
US $46.36 |
||
|
21
|
21
29737-57B00-000 O-RING,OIL PIPE97 MODEL |
29737-57B00-000 |
from US $2.28 |
||
|
22
|
22
22910-77EA0-000
パイプ,オイル
97 MODEL |
22910-77EA0-000 |
— | ||
| replacement | |||||
|
22
|
22
22910-77EA1-000 PIPE,OIL97 MODEL |
22910-77EA1-000 |
US $116 |
||
|
23
|
23
01550-06103-000
Bolt, front
97 MODEL |
01550-06103-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0610B-000 BoltBolt 97 MODEL |
01550-0610B-000 |
from US $0.80 |
||
|
23
|
23
01550-0610A-000 BOLT97 MODEL |
01550-0610A-000 |
from US $0.80 |
||
