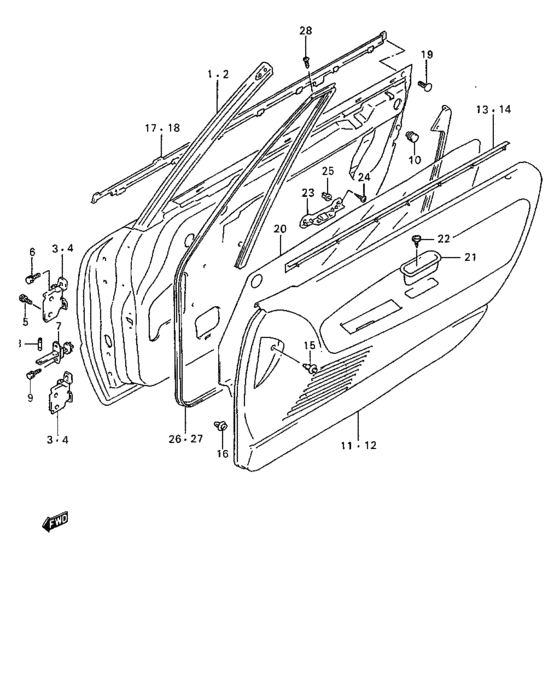

Fr dr panel (FR DR PANEL) Diagram Suzuki X90
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-79810-000
パネルセット,フロントドア,ライト
|
68001-79810-000 |
— | ||
| replacement | |||||
|
1
|
1
68001-79811-000
Panel set,fr door,rh
|
68001-79811-000 |
— | ||
|
2
|
2
68002-79810-000
パネルセット,フロントドア,レフト
|
68002-79810-000 |
— | ||
| replacement | |||||
|
2
|
2
68002-79811-000
PANEL SET,FRONT DOOR,L
|
68002-79811-000 |
— | ||
|
3
|
3
69310-60A10-000 HINGE,FR DOOR,NO.1Upper RH / Lower LH UPPER RH,LOWER LH |
69310-60A10-000 |
from US $36.32 |
||
|
4
|
4
69340-60A11-000 HINGE,FR DOOR,NO.2Upper LH / Lower RH UPPER LH,LOWER RH |
69340-60A11-000 |
from US $43.56 |
||
|
5
|
5
09118-08156-000 BOLT(8X25) |
09118-08156-000 |
US $19.50 |
||
|
6
|
6
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
6
|
6
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
6
|
6
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
7
|
7
81810-56B01-000 STOP,FRONT DOOR OPEN |
81810-56B01-000 |
US $32.02 |
||
|
8
|
8
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
US $1.60 |
||
|
9
|
9
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
10
|
10
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower |
82711-56B00-000 |
US $2.88 |
||
|
11
|
11
83710-79E10-E9K
TRIM,FRONT DOOR,R
96 MODEL,97 MODEL |
83710-79E10-E9K |
— | ||
|
11
|
11
83710-79E10-J4Z
Trim, door rh
98 MODEL |
83710-79E10-J4Z |
— | ||
|
12
|
12
83720-79E10-E9K
トリム,フロントドア,レフト(ブラック/ブルー)
96 MODEL,97 MODEL |
83720-79E10-E9K |
— | ||
|
12
|
12
83720-79E10-J4Z
Trim, door lh
98 MODEL |
83720-79E10-J4Z |
— | ||
|
13
|
13
83719-79E00-000
ウェザストリップ,フロントドアインナ,ライト
|
83719-79E00-000 |
— | ||
|
14
|
14
83729-79E00-000
ウェザストリップ,フロントドアインナ,レフト
|
83729-79E00-000 |
— | ||
|
15
|
15
09409-08308-5ES CLIP(BLACK) |
09409-08308-5ES |
from US $1.15 |
||
|
16
|
16
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
17
|
17
83810-79E00-000
WEATHERSTRIP,FR DR OUT, RH
|
83810-79E00-000 |
— | ||
|
18
|
18
83820-79E00-000
WEATHERSTRIP,FR DR OUT, LH
|
83820-79E00-000 |
— | ||
|
19
|
19
09409-05315-5ES CLIP(BLACK) |
09409-05315-5ES |
US $16.90 |
||
|
20
|
20
83911-60X51-000
Cover, door sealing (600x1200)
CUT AS REQUIRED |
83911-60X51-000 |
— | ||
| replacement | |||||
|
20
|
20
83911-60X52-000 COVER,DR SEALINGCUT AS REQUIRED |
83911-60X52-000 |
US $6.06 |
||
|
21
|
21
84481-68A00-5ES
CASE,DR INS PULL HANDLE
96 MODEL,97 MODEL |
84481-68A00-5ES |
— | ||
|
21
|
21
84481-68A00-T01 CASE,DR INS PULL HANDLE98 MODEL |
84481-68A00-T01 |
US $10.12 |
||
|
22
|
22
03142-04123-000
スクリュ
|
03142-04123-000 |
— | ||
| replacement | |||||
|
22
|
22
03142-0412B-000 SCREW |
03142-0412B-000 |
from US $0.80 |
||
|
23
|
23
84482-77E00-000
BRACKET,DR INSIDE PULL HANDLE
|
84482-77E00-000 |
— | ||
|
24
|
24
03242-06163-000
Screw
|
03242-06163-000 |
— | ||
| replacement | |||||
|
24
|
24
03241-0616C-000 SCREW |
03241-0616C-000 |
from US $0.76 |
||
|
25
|
25
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
26
|
26
84641-79E00-000 WEATHERSTRIP,FR DR OPNG,R |
84641-79E00-000 |
US $275.12 |
||
|
27
|
27
84651-79E00-000
WEATHERSTRIP,FR DR OPNG,L
|
84651-79E00-000 |
— | ||
|
28
|
28
02112-04083-000
Screw
|
02112-04083-000 |
— | ||
| replacement | |||||
|
28
|
28
02112-0408A-000 SCREW |
02112-0408A-000 |
from US $0.80 |
||
