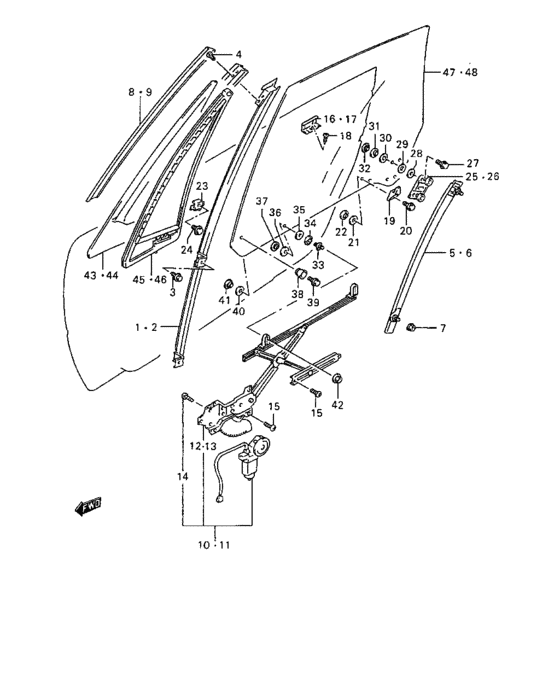

Fr dr regulator (FR DR REGULATOR) Diagram Suzuki X90
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81710-79E00-000
Sash comp,fr door ctr,r
|
81710-79E00-000 |
— | ||
|
2
|
2
81730-79E00-000
SASH,FR DOOR CENTER,L
|
81730-79E00-000 |
— | ||
|
3
|
3
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
3
|
3
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
4
|
4
02122-04103-000
Screw
|
02122-04103-000 |
— | ||
| replacement | |||||
|
4
|
4
02122-0410A-000 SCREWScrew (4x10) |
02122-0410A-000 |
from US $0.80 |
||
|
5
|
5
81720-79E00-000
SASH,FR DOOR REAR,R
|
81720-79E00-000 |
— | ||
|
6
|
6
81740-79E00-000
SASH,FR DOOR REAR,L
|
81740-79E00-000 |
— | ||
|
7
|
7
08361-25083-000
Nut
|
08361-25083-000 |
— | ||
| replacement | |||||
|
7
|
7
08361-2508A-000 NUT |
08361-2508A-000 |
from US $0.80 |
||
|
8
|
8
81791-79E00-0CE
TAPE,FR DOOR SASH,R
|
81791-79E00-0CE |
— | ||
|
9
|
9
81792-79E00-0CE
TAPE,FR DOOR SASH,L
|
81792-79E00-0CE |
— | ||
|
10
|
10
83401-79E00-000
REGULATOR ASSY,FR WINDOW,R
|
83401-79E00-000 |
— | ||
|
11
|
11
83402-79E00-000 REGULATOR ASSY,FR WINDOW,L |
83402-79E00-000 |
US $382.72 |
||
|
12
|
12
83410-79E00-000
Regulator,fr window,r
|
83410-79E00-000 |
— | ||
|
13
|
13
83440-79E00-000
REGULATOR,FR WINDOW,L
|
83440-79E00-000 |
— | ||
|
14
|
14
09139-05063-000 SCREW(5X11) |
09139-05063-000 |
US $11.40 |
||
|
15
|
15
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
16
|
16
83511-80F00-000
SUPPORT,DOOR TRIM,R
|
83511-80F00-000 |
— | ||
|
17
|
17
83521-80F00-000
SUPPORT,DOOR TRIM,L
|
83521-80F00-000 |
— | ||
|
18
|
18
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
18
|
18
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
19
|
19
83512-50D00-000 STABILIZER,DOOR GLASS MALE |
83512-50D00-000 |
US $17.60 |
||
|
20
|
20
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
20
|
20
01570-0612B-000 BOLTBolt, upper |
01570-0612B-000 |
US $0.80 |
||
|
20
|
20
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
|
21
|
21
83517-50D00-000
PACKING
|
83517-50D00-000 |
— | ||
|
22
|
22
83516-50D00-000 NUT,DOOR STABILIZER |
83516-50D00-000 |
US $4.67 |
||
|
23
|
23
83513-80F00-000
Stopper,fr door window up
|
83513-80F00-000 |
— | ||
|
24
|
24
09103-08335-000
Bolt
|
09103-08335-000 |
— | ||
| replacement | |||||
|
24
|
24
09103-08421-000 BOLT(8X9.5) |
09103-08421-000 |
from US $1.85 |
||
|
25
|
25
83515-50D00-000
BRACKET S/ASSY,RR SASH,R
|
83515-50D00-000 |
— | ||
|
26
|
26
83525-50D00-000
BRACKET S/ASSY,RR SASH,L
|
83525-50D00-000 |
— | ||
|
27
|
27
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
27
|
27
01570-0612B-000 BOLTBolt, upper |
01570-0612B-000 |
US $0.80 |
||
|
27
|
27
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
|
28
|
28
83517-50D00-000
PACKING
|
83517-50D00-000 |
— | ||
|
29
|
29
83526-80F00-000
CUSHION,REAR BRACKET
|
83526-80F00-000 |
— | ||
|
30
|
30
83526-80F00-000
CUSHION,REAR BRACKET
|
83526-80F00-000 |
— | ||
|
31
|
31
83517-50D00-000
PACKING
|
83517-50D00-000 |
— | ||
|
32
|
32
83516-50D00-000 NUT,DOOR STABILIZER |
83516-50D00-000 |
US $4.67 |
||
|
33
|
33
83518-50D00-000 BOLT,WINDOW RGLTR BOTTOM |
83518-50D00-000 |
US $5.96 |
||
|
34
|
34
83519-50D00-000
スペーサ,ウィンドレギュレータボトム
|
83519-50D00-000 |
— | ||
|
35
|
35
83517-50D00-000
PACKING
|
83517-50D00-000 |
— | ||
|
36
|
36
83517-50D00-000
PACKING
|
83517-50D00-000 |
— | ||
|
37
|
37
83516-50D00-000 NUT,DOOR STABILIZER |
83516-50D00-000 |
US $4.67 |
||
|
38
|
38
83531-50D00-000
STOPPER,DOOR GLASS MALE
|
83531-50D00-000 |
— | ||
|
39
|
39
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
39
|
39
01570-0612B-000 BOLTBolt, upper |
01570-0612B-000 |
US $0.80 |
||
|
39
|
39
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
|
40
|
40
83517-50D00-000
PACKING
|
83517-50D00-000 |
— | ||
|
41
|
41
83516-50D00-000 NUT,DOOR STABILIZER |
83516-50D00-000 |
US $4.67 |
||
|
42
|
42
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
42
|
42
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
43
|
43
84521-79E30-000
Glass,front door partition,r
|
84521-79E30-000 |
— | ||
|
44
|
44
84526-79E30-000
GLASS,FR DR PARTITION,L
|
84526-79E30-000 |
— | ||
|
45
|
45
84614-79E00-000
Weatherstrip,partition,r
|
84614-79E00-000 |
— | ||
|
46
|
46
84615-79E00-000
WEATHERSTRIP,PARTITION,L
|
84615-79E00-000 |
— | ||
|
47
|
47
84531-79E30-000
GLASS,FR DR WDO,R
|
84531-79E30-000 |
— | ||
|
48
|
48
84536-79E30-000
GLASS,FR DR WDO,L
|
84536-79E30-000 |
— | ||
