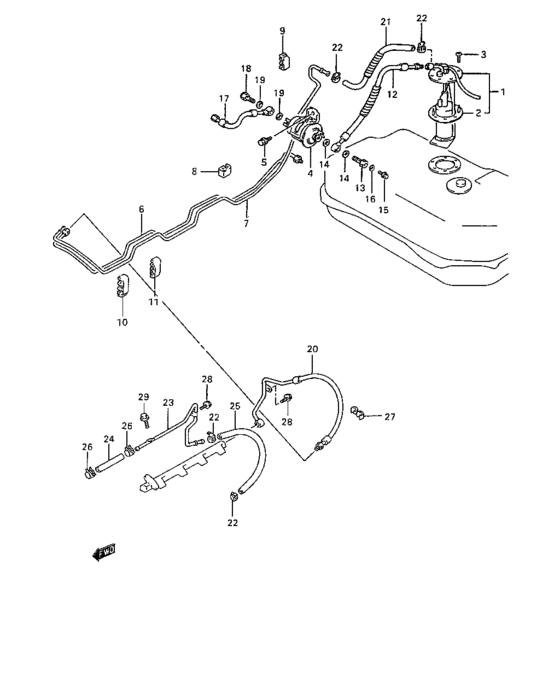

Fuel Pump (FUEL PUMP) Diagram Suzuki X90
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-58B01-000
PUMP ASSY,FUEL
|
15100-58B01-000 |
— | ||
|
2
|
2
15111-56F00-000 GASKET,FUEL PUMP |
15111-56F00-000 |
US $85.33 |
||
|
3
|
3
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
4
|
4
15410-61A00-000 FILTER,FUEL |
15410-61A00-000 |
from US $33.71 |
||
|
5
|
5
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
5
|
5
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
6
|
6
15820-61A22-000 PIPE,FUEL FILTER OUTLET |
15820-61A22-000 |
US $73.97 |
||
|
7
|
7
15861-60A20-000 PIPE,FUEL RTN |
15861-60A20-000 |
US $58.14 |
||
|
8
|
8
15893-67B00-000 CLAMP,FUEL PIPE96 MODEL,97 MODEL |
15893-67B00-000 |
US $1.76 |
||
|
8
|
8
15891-60A11-000 CLAMP,FUEL PIPE98 MODEL |
15891-60A11-000 |
US $2.13 |
||
|
9
|
9
15892-60A11-000 CLAMP,FUEL PIPE |
15892-60A11-000 |
US $1.60 |
||
|
10
|
10
15893-60A11-000 CLAMP,FUEL PIPE |
15893-60A11-000 |
US $2.24 |
||
|
11
|
11
15895-60A11-000 CLAMP,FUEL PIPE |
15895-60A11-000 |
US $2.56 |
||
|
12
|
12
15810-57B00-000 HOSE,FUEL FILTER INLET |
15810-57B00-000 |
US $237.12 |
||
|
13
|
13
13923-85551-000 BOLT,UNION FUEL FILTERBolt |
13923-85551-000 |
US $15.52 |
||
|
14
|
14
13925-85553-000 GASKET,UNION BOLTGasket |
13925-85553-000 |
from US $1.60 |
||
|
15
|
15
17568-50F00-000 UNION BOLT,AIR VENTBolt, thermostat cover |
17568-50F00-000 |
from US $2.08 |
||
|
16
|
16
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.51 |
||
|
17
|
17
15840-61A01-000 HOSE,FUEL FILTER OUTLET |
15840-61A01-000 |
US $209.60 |
||
|
18
|
18
09360-12008-000 UNION |
09360-12008-000 |
from US $5.60 |
||
|
19
|
19
13925-85553-000 GASKET,UNION BOLTGasket |
13925-85553-000 |
from US $1.60 |
||
|
20
|
20
15830-58B00-000 HOSE,FUEL PIPE TO ENG |
15830-58B00-000 |
US $181.79 |
||
|
21
|
21
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600->360 |
09356-55117-600 |
US $69.60 |
||
|
22
|
22
09402-15511-000
New Genuine Part
|
09402-15511-000 |
— | ||
| replacement | |||||
|
22
|
22
09402-17511-000 CLAMP |
09402-17511-000 |
US $52.60 |
||
|
23
|
23
15850-57B01-000 PIPE,FUEL RTN |
15850-57B01-000 |
US $25.76 |
||
|
24
|
24
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) 96 MODEL,97 MODEL,L:600->65 |
09356-55117-600 |
US $69.60 |
||
|
25
|
25
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600->260 |
09356-55117-600 |
US $69.60 |
||
|
26
|
26
09401-11411-000 CLIP |
09401-11411-000 |
from US $6.38 |
||
|
27
|
27
09408-00121-000 CLAMP96 MODEL,97 MODEL |
09408-00121-000 |
US $1.52 |
||
|
27
|
27
09408-00083-000 CLAMP98 MODEL |
09408-00083-000 |
US $17.30 |
||
|
28
|
28
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
28
|
28
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
29
|
29
01550-08123-000
Bolt
98 MODEL |
01550-08123-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0812B-000 BoltPlug, drain 98 MODEL |
01550-0812B-000 |
from US $0.96 |
||
|
29
|
29
01550-0812A-000 BOLT98 MODEL |
01550-0812A-000 |
from US $0.91 |
||
