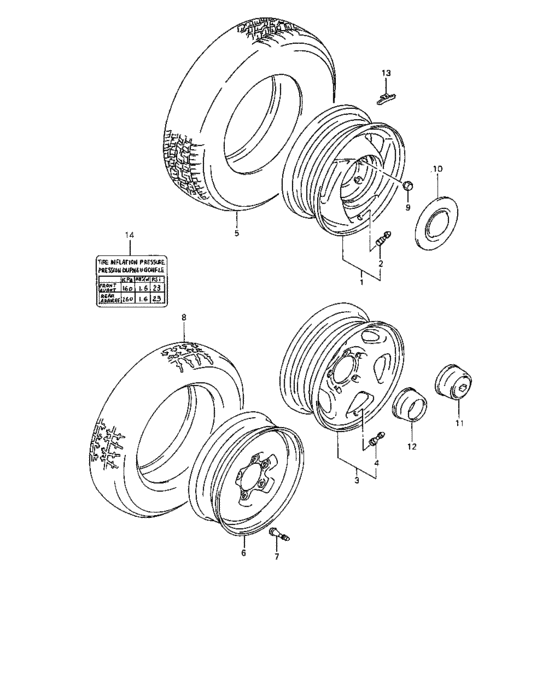

Road wheel (ROAD WHEEL) Diagram Suzuki X90
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43200-79870-27S
Wheel set, al
2WD |
43200-79870-27S |
— | ||
|
2
|
2
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim |
43130-78030-000 |
US $12.50 |
||
|
3
|
3
43200-79880-000
Wheel set,al(15x5 1/2jj)
2WD:98 MODEL |
43200-79880-000 |
— | ||
|
4
|
4
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim |
43130-78030-000 |
US $12.50 |
||
|
5
|
5
43110-79E00-000
Tire
|
43110-79E00-000 |
— | ||
|
6
|
6
43290-79E00-000
WHEEL,SPARE(16X4T)
|
43290-79E00-000 |
— | ||
|
7
|
7
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim |
43130-78030-000 |
US $12.50 |
||
|
8
|
8
43190-79E00-000
タイヤ,スペア,T125/90D16
|
43190-79E00-000 |
— | ||
|
9
|
9
09159-12024-000 NUT |
09159-12024-000 |
from US $2.40 |
||
|
10
|
10
43252-79E01-27S
CAP,WHEEL CENTER
2WD |
43252-79E01-27S |
— | ||
|
13
|
13
43232-60A30-000 WEIGHT,WHEEL BALANCE 10G |
43232-60A30-000 |
US $4.45 |
||
|
13
|
13
43234-60A30-000 WEIGHT,WHEEL BALANCE 20G |
43234-60A30-000 |
US $5.81 |
||
|
13
|
13
43221-60E50-000 WEIGHT,WHEEL BALANCE 30G |
43221-60E50-000 |
US $6.15 |
||
|
13
|
13
43238-60A30-000 WEIGHT,WHEEL BALANCE 40G |
43238-60A30-000 |
US $5.63 |
||
|
14
|
14
79161-79E40-000
Placard, tire information
2WD |
79161-79E40-000 |
— |
