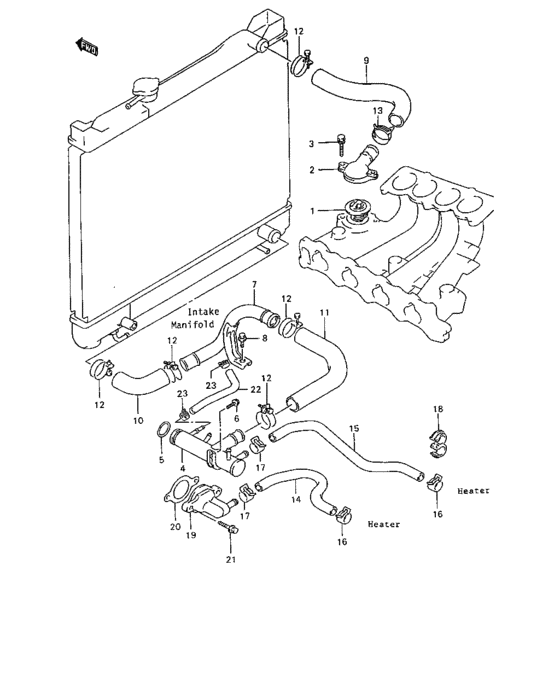

Water hose (WATER HOSE) Diagram Suzuki X90
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17600-60813-000
サーモスタット,ウォータ,82゜C
|
17600-60813-000 |
— | ||
| replacement | |||||
|
1
|
1
17600-60814-000 THERMOSTAT,WATER 82 DEG |
17600-60814-000 |
from US $24.71 |
||
|
2
|
2
17561-58B00-000 CAP,WATER THERMOSTAT |
17561-58B00-000 |
from US $20.25 |
||
|
3
|
3
09103-08341-000 BOLT(8X30) |
09103-08341-000 |
from US $3.24 |
||
|
4
|
4
17550-58B00-000 PIPE,WATER INLET |
17550-58B00-000 |
from US $78.86 |
||
|
5
|
5
09280-28008-000 O RING(D:3.5,ID:27.7) |
09280-28008-000 |
from US $0.63 |
||
|
6
|
6
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
6
|
6
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
7
|
7
17860-60A10-000 PIPE,RDTR OUTLET |
17860-60A10-000 |
from US $35.69 |
||
|
8
|
8
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
8
|
8
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
9
|
9
17841-58B10-000
ホース,ラジエータ,インレット
|
17841-58B10-000 |
— | ||
| replacement | |||||
|
9
|
9
17841-60A00-000 HOSE,RADIATOR INLET |
17841-60A00-000 |
US $32.80 |
||
|
10
|
10
17851-60A00-000 HOSE,RADIATOR OUTLET NO.1 |
17851-60A00-000 |
from US $14.90 |
||
|
11
|
11
17852-60A00-000 HOSE,RADIATOR OUTLET NO.2 |
17852-60A00-000 |
from US $21.53 |
||
|
12
|
12
09400-36312-000 CLAMP |
09400-36312-000 |
from US $1.53 |
||
|
13
|
13
09401-30403-000
クリップ
|
09401-30403-000 |
— | ||
| replacement | |||||
|
13
|
13
09401-30405-000 CLIP |
09401-30405-000 |
from US $3.04 |
||
|
14
|
14
17871-57B03-000 HOSE,HEATER INLET |
17871-57B03-000 |
from US $15.05 |
||
|
15
|
15
17872-60A01-000 HOSE,HEATER OUTLET |
17872-60A01-000 |
from US $19.91 |
||
|
16
|
16
09401-18404-000 CLIP |
09401-18404-000 |
from US $1.33 |
||
|
17
|
17
09401-18403-000 CLIPClip, heater hose |
09401-18403-000 |
US $1.92 |
||
|
18
|
18
09408-00117-000 CLAMP |
09408-00117-000 |
US $20.20 |
||
|
19
|
19
17570-57B00-000 CAP,WATER OUTLET |
17570-57B00-000 |
US $39.52 |
||
|
20
|
20
17699-60B02-000 GASKET,THERMO CASE->17859-58B01,USED WITH 09401-12410(2PCS) |
17699-60B02-000 |
from US $3.94 |
||
|
21
|
21
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
21
|
21
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
22
|
22
17859-58B01-000 HOSE,WATER BYPASS |
17859-58B01-000 |
US $15.04 |
||
|
23
|
23
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
