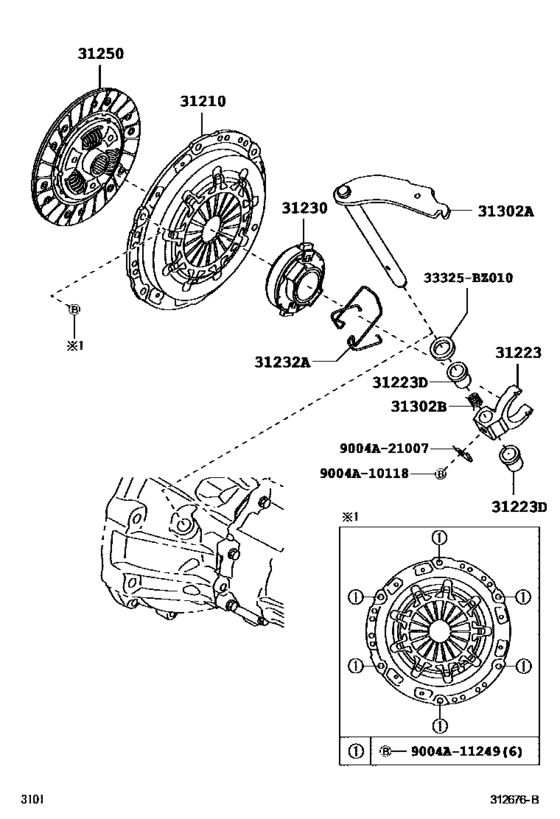

Clutch & Release Fork ([12.2012 - 04.2017] (1212-1704)MTM) Diagram Toyota AGYA/ WIGO
- Year
- 2014 - 2017
- Sales region
- General
- Frame
- B100
- grade
- MID
- ENGINE
- 1KRDE
- TRANSMISSION
- MTM
- Model
- WIGO
- From
- 01.2014
- To
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- WIGO
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31210
|
31210
31210-BZ030
Cover Assy, Clutch
[12.2012 - 05.2014] B100..MTM |
31210-BZ030 |
— | ||
|
31210
|
31210
31210-BZ031
Cover Assy, Clutch
[06.2014 - 04.2017] B100..MTM |
31210-BZ031 |
— | ||
|
31223
|
31223
31223-BZ041
Yoke, Clutch Release Lever
[10.2013 - 04.2017] B100..MTM |
31223-BZ041 |
— | ||
|
31223D
|
31223D
9004A-38072
Bush(For Clutch Release Lever Yoke)
[12.2012 - 04.2017] B100..MTM |
9004A-38072 |
— | ||
|
31230
|
31230
31230-BZ040
Bearing Assy, Clutch Release
[12.2012 - 04.2017] B100..MTM |
31230-BZ040 |
— | ||
|
31232A
|
31232A
31232-BZ070
Clip, Release Bearing Hub
[12.2012 - 04.2017] B100..MTM |
31232-BZ070 |
— | ||
|
31250
|
31250
31250-BZ040
Disc Assy, Clutch
[12.2012 - 05.2014] B100..MTM |
31250-BZ040 |
— | ||
|
31250
|
31250
31250-BZ041
Disc Assy, Clutch
[06.2014 - 04.2017] B100..MTM |
31250-BZ041 |
— | ||
|
31302A
|
31302A
31302-BZ050
Lever Sub-Assy, Clutch Release Fork
[12.2012 - 04.2017] B100..MTM |
31302-BZ050 |
— | ||
|
31302B
|
31302B
9004A-50119
Spring, Torsion(For Clutch Release Fork Lever)
[12.2012 - 04.2017] B100..MTM |
9004A-50119 |
— | ||
|
9004A10118
|
9004A10118
9004A-10118
Bolt, Hexagon(For Clutch Release Lever Yoke)
|
9004A-10118 |
— | ||
|
9004A11249
|
9004A11249
9004A-11249 Bolt (For Transmission Control Cable Bracket) |
9004A-11249 |
US $1.46 |
||
| replacement | |||||
|
9004A11249
|
9004A11249
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9004A21007
|
9004A21007
9004A-21007
New Genuine Part
|
9004A-21007 |
— | ||
|
33325BZ010
|
33325BZ010
33325-BZ010
Dfflector, Dust (for Mtm Output Shaft Companion Flange)
|
33325-BZ010 |
— | ||
