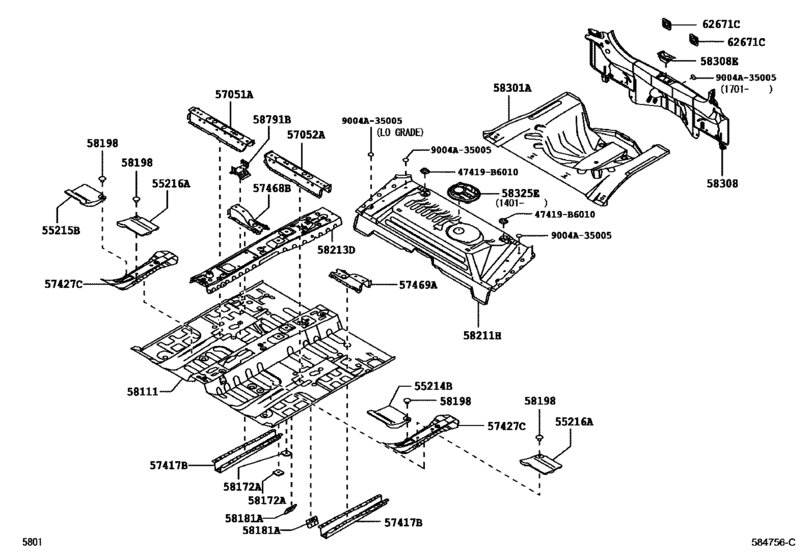

Floor Pan & Lower Back Panel ([12.2012 - 04.2017] (1212-1704)) Diagram Toyota AGYA/ WIGO
- Year
- 2014 - 2017
- Sales region
- General
- Frame
- B100
- grade
- MID
- ENGINE
- 1KRDE
- TRANSMISSION
- MTM
- Model
- WIGO
- From
- 01.2014
- To
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- WIGO
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55214B
|
55214B
55214-BZ060
Pad, Dash Panel Insulator, No.2
[12.2012 - 04.2017] B100 |
55214-BZ060 |
— | ||
|
55215B
|
55215B
58571-BZ020
Pad, Dash Panel Insulator, No.3
[12.2012 - 04.2017] B100 |
58571-BZ020 |
— | ||
|
55216A
|
55216A
58572-BZ020
Pad, Dash Panel Insulator, No.3
[12.2012 - 04.2017] B100 |
58572-BZ020 |
— | ||
|
57051A
|
57051A
57051-BZ060
Member Sub-Assy, Front Floor Cross, Rh
[12.2012 - 04.2017] B100 |
57051-BZ060 |
— | ||
|
57052A
|
57052A
57052-BZ050
Member Sub-Assy, Front Floor Cross, Lh
[12.2012 - 04.2017] B100 |
57052-BZ050 |
— | ||
|
57417B
|
57417B
57417-BZ040
Reinforcement, Front Floor Under
[12.2012 - 04.2017] B100 |
57417-BZ040 |
— | ||
|
57427C
|
57427C
57427-BZ040
Reinforcement, Front Floor, Upper
[12.2012 - 04.2015] B100 |
57427-BZ040 |
— | ||
|
57427C
|
57427C
58103-BZ020
Reinforcement, Front Floor, Upper
[04.2015 - 04.2017] B100 |
58103-BZ020 |
— | ||
|
57468B
|
57468B
57468-BZ030
Bracket, Front Seat, Rear
[12.2012 - 04.2017] B100 |
57468-BZ030 |
— | ||
|
57469A
|
57469A
57468-BZ030
Bracket, Front Seat, Rear
[12.2012 - 04.2017] B100 |
57468-BZ030 |
— | ||
|
58111
|
58111
58111-BZ230
Pan, Front Floor
[12.2012 - 04.2017] B100 |
58111-BZ230 |
— | ||
|
58172A
|
58172A
46521-BZ030
Plate, Parking Brake Mounting
[12.2012 - 04.2017] B100 |
46521-BZ030 |
— | ||
|
58181A
|
58181A
58182-BZ050
Retainer, Seat Rail, Front
[12.2012 - 04.2017] B100 |
58182-BZ050 |
— | ||
|
58198
|
58198
90044-67397 Clip[12.2012 - 08.2016] B100 |
90044-67397 |
US $2.72 |
||
|
58198
|
58198
9004A-46131-B0
Clip
[09.2016 - 04.2017] B100 DK.GRAY |
9004A-46131-B0 |
— | ||
|
58211H
|
58211H
58211-BZ020
Pan, Center Floor
[12.2012 - 08.2016] B100 |
58211-BZ020 |
— | ||
| replacement | |||||
|
58211H
|
58211H
58211-BZ100
Pan, Center Floor
[12.2012 - 08.2016] B100 |
58211-BZ100 |
— | ||
|
58211H
|
58211H
58211-BZ100
Pan, Center Floor
[08.2016 - 04.2017] B100 |
58211-BZ100 |
— | ||
|
58213D
|
58213D
58213-BZ060
Reinforcement, Center Floor Panel
[12.2012 - 04.2017] B100..MTM |
58213-BZ060 |
— | ||
|
58301A
|
58301A
58301-BZ260
Panel Sub-Assy, Rear Floor
[12.2012 - 03.2015] B100 |
58301-BZ260 |
— | ||
|
58301A
|
58301A
58301-BZ270
Panel Sub-Assy, Rear Floor
[04.2015 - 04.2017] B100 |
58301-BZ270 |
— | ||
|
58308
|
58308
58308-BZ150
Panel Sub-Assy, Body Lower Back, Inner
[12.2012 - 04.2017] B100 |
58308-BZ150 |
— | ||
|
58308E
|
58308E
64716-BZ040-B0
Cover, Hole(For Lower Back)
[12.2012 - 04.2017] B100 DK.GRAY,TRIM1# |
64716-BZ040-B0 |
— | ||
|
58325E
|
58325E
58325-BZ050
Cover, Rear Floor Service Hole
[01.2014 - 04.2017] B100 |
58325-BZ050 |
— | ||
|
58791B
|
58791B
58791-BZ040
Carrier, Jack
[12.2012 - 04.2017] B100 |
58791-BZ040 |
— | ||
|
62671C
|
62671C
62671-BZ020 Cover, Lower Back PanelLOWER BACK PANEL [12.2012 - 04.2017] B100 |
62671-BZ020 |
from US $4.27 |
||
|
9004A35005
|
9004A35005
9004A-35005 Plug, Hole(For Floor Pan) |
9004A-35005 |
US $1.92 |
||
|
47419B6010
|
47419B6010
47419-B6010
Plug, Hole(for Front Brake)
|
47419-B6010 |
— | ||
