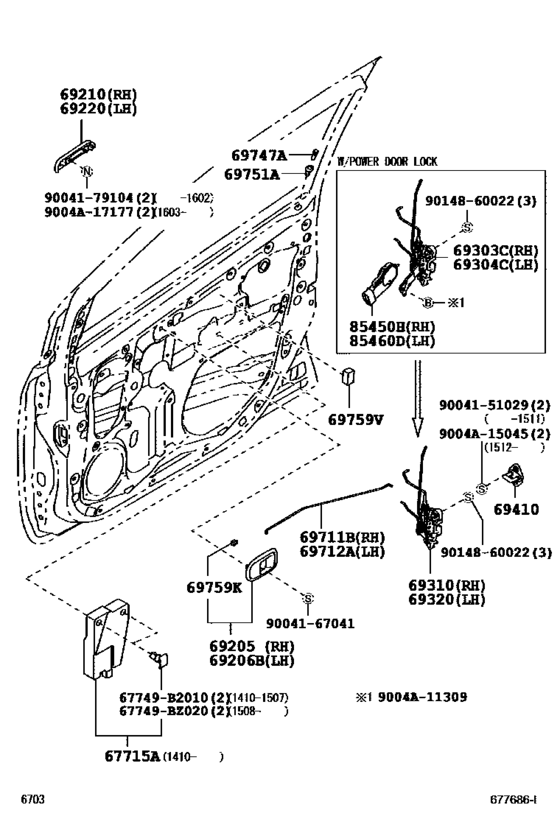

Front Door Lock & Handle ([12.2012 - 04.2017] (1212-1704)) Diagram Toyota AGYA/ WIGO
- Year
- 2014 - 2017
- Sales region
- General
- Frame
- B100
- grade
- MID
- ENGINE
- 1KRDE
- TRANSMISSION
- MTM
- Model
- WIGO
- From
- 01.2014
- To
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- WIGO
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67715A
|
67715A
75787-BZ010
Pad, Front Door Trim
[10.2014 - 04.2017] B100..HI,MID RH |
75787-BZ010 |
— | ||
|
67715A
|
67715A
75788-BZ010
Pad, Front Door Trim
[10.2014 - 04.2017] B100..HI,MID LH |
75788-BZ010 |
— | ||
|
69205
|
69205
69270-BZ012-B0 Handle Sub-Assy, Front Door Inside, Rh[12.2012 - 04.2017] B100..LO,MID DK.GRAY,TRIM1# |
69270-BZ012-B0 |
US $13.54 |
||
|
69206B
|
69206B
69280-BZ012-B0 Handle Sub-Assy, Front Door Inside, Lh[12.2012 - 04.2017] B100..LO,MID DK.GRAY,TRIM1# |
69280-BZ012-B0 |
US $13.54 |
||
|
69210
|
69210
69210-BZ020 Handle Assy, Front Door, Outside Rh[12.2012 - 04.2017] B100..AGYA;B100..MID..WIGO |
69210-BZ020 |
US $28.58 |
||
|
69220
|
69220
69220-BZ020 Handle Assy, Front Door Outside, Lh[12.2012 - 04.2017] B100..AGYA;B100..MID..WIGO |
69220-BZ020 |
US $28.58 |
||
|
69303C
|
69303C
69303-BZ080
Lock Sub-Assy, Front Door, Rh
[01.2014 - 04.2017] B100..WIGO |
69303-BZ080 |
— | ||
|
69304C
|
69304C
69304-BZ060
Lock Sub-Assy, Front Door, Lh
[01.2014 - 04.2017] B100..WIGO |
69304-BZ060 |
— | ||
|
69410
|
69410
69410-BZ010 Plate Assy, Front Door Lock Striker[12.2012 - 04.2017] B100 |
69410-BZ010 |
US $13.21 |
||
|
69711B
|
69711B
69711-BZ050
Link, Front Door Lock Remote Control, Rh
[12.2012 - 04.2017] B100 |
69711-BZ050 |
— | ||
|
69712A
|
69712A
69712-BZ050
Link, Front Door Lock Remote Control, Lh
[12.2012 - 04.2017] B100 |
69712-BZ050 |
— | ||
|
69747A
|
69747A
69743-BZ040-B0
Button, Door Locking(For Front Door)
[12.2012 - 04.2017] B100 GRAY,TRIM1# |
69743-BZ040-B0 |
— | ||
| replacement | |||||
|
69747A
|
69747A
6974787703C0 Button, Door Locking (Black)[12.2012 - 04.2017] B100 GRAY,TRIM1# |
6974787703C0 |
US $4.32 |
||
|
69751A
|
69751A
69751-BZ040-B0
Holder, Door Locking(For Front Door)
[12.2012 - 04.2017] B100..HI,MID DK.GRAY,TRIM1# |
69751-BZ040-B0 |
— | ||
|
69759K
|
69759K
69279-BZ010 Snap, Door Lock Control Link[12.2012 - 04.2017] B100 |
69279-BZ010 |
US $3.52 |
||
|
69759V
|
69759V
69759-87Z02 Silencer, Front Door Lock Link[12.2012 - 04.2017] B100 |
69759-87Z02 |
US $2.88 |
||
|
85450H
|
85450H
85450-BZ090
Motor Assy, Door Control, Front Rh
[01.2014 - 04.2017] B100..WIGO |
85450-BZ090 |
— | ||
|
85460D
|
85460D
85460-BZ070
Motor Assy, Door Control, Front Lh
[01.2014 - 04.2017] B100..MID..WIGO |
85460-BZ070 |
— | ||
|
9004A11309
|
9004A11309
9004A-11309
New Genuine Part
|
9004A-11309 |
— | ||
|
9004A17177
|
9004A17177
9004A-17177 New Genuine Part |
9004A-17177 |
US $1.75 |
||
|
67749B2010
|
67749B2010
67749-B2010 Clip, Front Fender LinerDOOR TRIM MOULDING |
67749-B2010 |
US $2.08 |
||
|
9004151029
|
9004151029
90041-51029 New Genuine Part |
90041-51029 |
US $1.76 |
||
| replacement | |||||
|
9004151029
|
9004151029
90041-59312 New Genuine Part |
90041-59312 |
US $0.87 |
||
|
9004167041
|
9004167041
90041-67041 New Genuine Part |
90041-67041 |
US $1.92 |
||
|
9004179104
|
9004179104
90041-79104 New Genuine Part |
90041-79104 |
US $1.60 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
