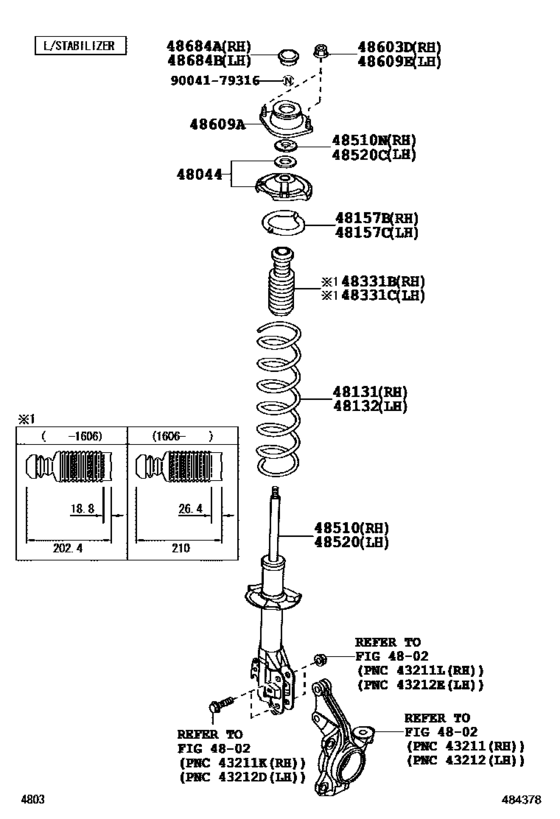

Front Spring & Shock Absorber ([12.2012 - ] L/STABILIZER (1212- )MID..WIGO ; (1212- )HI,LO,MID..AGY A) Diagram Toyota AGYA/ WIGO
- Year
- 2014 - 2017
- Sales region
- General
- Frame
- B100
- grade
- MID
- ENGINE
- 1KRDE
- TRANSMISSION
- MTM
- Model
- WIGO
- From
- 01.2014
- To
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- WIGO
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48044
|
48044
48044-BZ090
Seat Sub- Assy, Front Spring, No.1
[12.2012 -] B100..LO,MID;B100..HI..WIGO; B100..HI..AGYA STABILIZER-WITH FR STABILIZER |
48044-BZ090 |
— | ||
|
48131
|
48131
48131-BZ540
Spring, Front Coil, Rh
[12.2012 -] B100..MTM..(LO,MID) |
48131-BZ540 |
— | ||
|
48132
|
48132
48131-BZ540
Spring, Front Coil, Rh
[12.2012 -] B100..MTM..(LO,MID) |
48131-BZ540 |
— | ||
|
48157B
|
48157B
48157-BZ070
Insulator, Front Coil Spring, Upper Rh
[12.2012 -] B100..LO,MID;B100..HI..WIGO; B100..HI..AGYA STABILIZER-WITH FR STABILIZER |
48157-BZ070 |
— | ||
|
48157C
|
48157C
48157-BZ070
Insulator, Front Coil Spring, Upper Rh
[12.2012 -] B100..LO,MID;B100..HI..WIGO; B100..HI..AGYA STABILIZER-WITH FR STABILIZER |
48157-BZ070 |
— | ||
|
48331B
|
48331B
48331-BZ130
Bumper, Front Spring, Rh
[12.2012 - 06.2016] B100..LO,MID;B100..HI..WIGO; B100..HI..AGYA STABILIZER-WITH FR STABILIZER |
48331-BZ130 |
— | ||
| replacement | |||||
|
48331B
|
48331B
48331-BZ150
Bumper, Front Spring, Rh
[12.2012 - 06.2016] B100..LO,MID;B100..HI..WIGO; B100..HI..AGYA STABILIZER-WITH FR STABILIZER |
48331-BZ150 |
— | ||
|
48331B
|
48331B
48331-BZ150
Bumper, Front Spring, Rh
[06.2016 -] B100..LO,MID;B100..HI..WIGO; B100..HI..AGYA STABILIZER-WITH FR STABILIZER |
48331-BZ150 |
— | ||
|
48331C
|
48331C
48331-BZ130
Bumper, Front Spring, Rh
[12.2012 - 06.2016] B100..LO,MID;B100..HI..WIGO; B100..HI..AGYA STABILIZER-WITH FR STABILIZER |
48331-BZ130 |
— | ||
| replacement | |||||
|
48331C
|
48331C
48331-BZ150
Bumper, Front Spring, Rh
[12.2012 - 06.2016] B100..LO,MID;B100..HI..WIGO; B100..HI..AGYA STABILIZER-WITH FR STABILIZER |
48331-BZ150 |
— | ||
|
48331C
|
48331C
48331-BZ150
Bumper, Front Spring, Rh
[06.2016 -] B100..LO,MID;B100..HI..WIGO; B100..HI..AGYA STABILIZER-WITH FR STABILIZER |
48331-BZ150 |
— | ||
|
48510
|
48510
48510-BZ710
Absorber Assy, Shock, Front Rh
[12.2012 -] B100..LO,MID MARK 48510-BZ710 |
48510-BZ710 |
— | ||
|
48510N
|
48510N
90043-85174 Bearing, Strut Mounting, Rh[12.2012 -] B100..LO,MID;B100..HI..WIGO; B100..HI..AGYA STABILIZER-WITH FR STABILIZER |
90043-85174 |
from US $1.37 |
||
|
48520
|
48520
48510-BZ710
Absorber Assy, Shock, Front Rh
[12.2012 -] B100..LO,MID MARK 48510-BZ710 |
48510-BZ710 |
— | ||
|
48520C
|
48520C
90043-85174 Bearing, Strut Mounting, Rh[12.2012 -] B100..LO,MID;B100..HI..WIGO; B100..HI..AGYA STABILIZER-WITH FR STABILIZER |
90043-85174 |
from US $1.37 |
||
|
48603D
|
48603D
90041-79303 Nut(For Front Support To Front Shock Absorber Rh)[12.2012 - 09.2015] B100..HI,LO,MID |
90041-79303 |
US $2.33 |
||
|
48603D
|
48603D
9004A-17256 Nut(For Front Support To Front Shock Absorber Rh)[10.2015 -] B100..HI,LO,MID |
9004A-17256 |
US $1.60 |
||
|
48609A
|
48609A
48609-BZ090
Support Sub-Assy, Front Suspension
[12.2012 - 04.2017] B100..LO,MID;B100..HI..WIGO; B100..HI..AGYA STABILIZER-WITH FR STABILIZER |
48609-BZ090 |
— | ||
|
48609E
|
48609E
90041-79303 Nut(For Front Support To Front Shock Absorber Rh)[12.2012 - 09.2015] B100..HI,LO,MID |
90041-79303 |
US $2.33 |
||
|
48609E
|
48609E
9004A-17256 Nut(For Front Support To Front Shock Absorber Rh)[10.2015 -] B100..HI,LO,MID |
9004A-17256 |
US $1.60 |
||
|
48684A
|
48684A
48684-BZ050
Cover, Front Suspension Support Dust, Rh
[12.2012 -] B100..LO,MID;B100..HI..WIGO; B100..HI..AGYA STABILIZER-WITH FR STABILIZER |
48684-BZ050 |
— | ||
|
48684B
|
48684B
48684-BZ050
Cover, Front Suspension Support Dust, Rh
[12.2012 -] B100..LO,MID;B100..HI..WIGO; B100..HI..AGYA STABILIZER-WITH FR STABILIZER |
48684-BZ050 |
— | ||
|
9004179316
|
9004179316
90041-79316 Nut, Shock Absorber Piston |
90041-79316 |
from US $2.77 |
||
