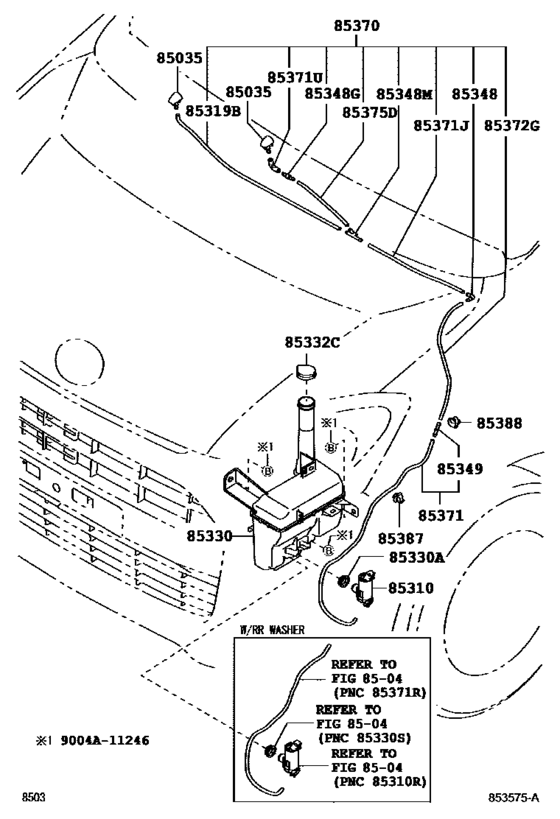

Windshield Washer ([12.2012 - 10.2014] (1212-1410)WIGO) Diagram Toyota AGYA/ WIGO
- Year
- 2014 - 2017
- Sales region
- General
- Frame
- B100
- grade
- MID
- ENGINE
- 1KRDE
- TRANSMISSION
- MTM
- Model
- WIGO
- From
- 01.2014
- To
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- WIGO
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-BZ180
Nozzle Sub-Assy, Washer
[12.2012 - 07.2016] B100 |
85381-BZ180 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-BZ181
Nozzle Sub-Assy, Washer
[12.2012 - 07.2016] B100 |
85381-BZ181 |
— | ||
|
85035
|
85035
85381-BZ181
Nozzle Sub-Assy, Washer
[08.2016 - 04.2017] B100 |
85381-BZ181 |
— | ||
|
85310
|
85310
85330-BZ110
Motor And Pump Assy, Windshield Washer
[12.2012 - 07.2016] B100..HI;B100..MID..WIGO |
85330-BZ110 |
— | ||
|
85319B
|
85319B
85374-BZ540
Hose, Window Washer
[01.2014 - 04.2017] B100..WIGO |
85374-BZ540 |
— | ||
|
85330
|
85330
85315-BZ140
Jar Assy, Windshield Washer
[01.2014 - 04.2017] B100..WIGO |
85315-BZ140 |
— | ||
|
85330A
|
85330A
85336-BZ020
Bush, Windshield Washer Jar
[12.2012 - 04.2017] B100 |
85336-BZ020 |
— | ||
|
85332C
|
85332C
85332-BZ030
Cap, Front Washer Tank
[12.2012 - 04.2017] B100 |
85332-BZ030 |
— | ||
|
85348
|
85348
85317-BZ040
Joint, Windshield Washer Hose, No.1
[12.2012 - 04.2017] B100 |
85317-BZ040 |
— | ||
|
85348G
|
85348G
85317-BZ070
Joint, Windshield Washer Hose, No.2
[01.2014 - 04.2017] B100..WIGO |
85317-BZ070 |
— | ||
|
85348M
|
85348M
85317-BZ050
Joint, Windshield Washer Hose, No.3
[12.2012 - 10.2014] B100 |
85317-BZ050 |
— | ||
|
85349
|
85349
85317-BZ020
Joint, Windshield Washer Hose, No.2
[12.2012 - 07.2016] B100 |
85317-BZ020 |
— | ||
|
85349
|
85349
85317-BZ070
Joint, Windshield Washer Hose, No.2
[07.2016 - 04.2017] B100 |
85317-BZ070 |
— | ||
|
85370
|
85370
85370-BZ650
Hose Assy, Windshield Washer
[01.2014 - 09.2014] B100..WIGO |
85370-BZ650 |
— | ||
| replacement | |||||
|
85370
|
85370
85370-BZ652
Hose Assy, Windshield Washer
[01.2014 - 09.2014] B100..WIGO |
85370-BZ652 |
— | ||
|
85370
|
85370
85370-BZ651
Hose Assy, Windshield Washer
[10.2014 - 01.2016] B100..WIGO |
85370-BZ651 |
— | ||
| replacement | |||||
|
85370
|
85370
85370-BZ652
Hose Assy, Windshield Washer
[10.2014 - 01.2016] B100..WIGO |
85370-BZ652 |
— | ||
|
85370
|
85370
85370-BZ652
Hose Assy, Windshield Washer
[02.2016 - 04.2017] B100..WIGO |
85370-BZ652 |
— | ||
|
85371
|
85371
85370-BZ790
Hose, Windshield Washer (From Motor To Joint)
[12.2012 - 04.2017] B100 H,L=670 |
85370-BZ790 |
— | ||
|
85371J
|
85371J
85374-BZ490
Tube, Rubber
[12.2012 - 10.2014] B100 *H,L=250 |
85374-BZ490 |
— | ||
|
85371U
|
85371U
85317-BZ060
Tube, Rubber
[12.2012 - 04.2017] B100 |
85317-BZ060 |
— | ||
|
85372G
|
85372G
85374-BZ500
Tube, Rubber
[12.2012 - 10.2014] B100 *H,L=260 |
85374-BZ500 |
— | ||
|
85375D
|
85375D
85374-BZ530
Tube,rubber
[01.2014 - 04.2017] B100..WIGO |
85374-BZ530 |
— | ||
|
85387
|
85387
82711-1E340 Clamp, Hood Lock Control Cable[12.2012 - 04.2017] B100 |
82711-1E340 |
from US $1.31 |
||
|
85388
|
85388
82711-BZ100 Clamp, Rear Washer Hose[12.2012 - 04.2017] B100 |
82711-BZ100 |
US $0.96 |
||
|
9004A11246
|
9004A11246
9004A-11246
New Genuine Part
|
9004A-11246 |
— | ||
