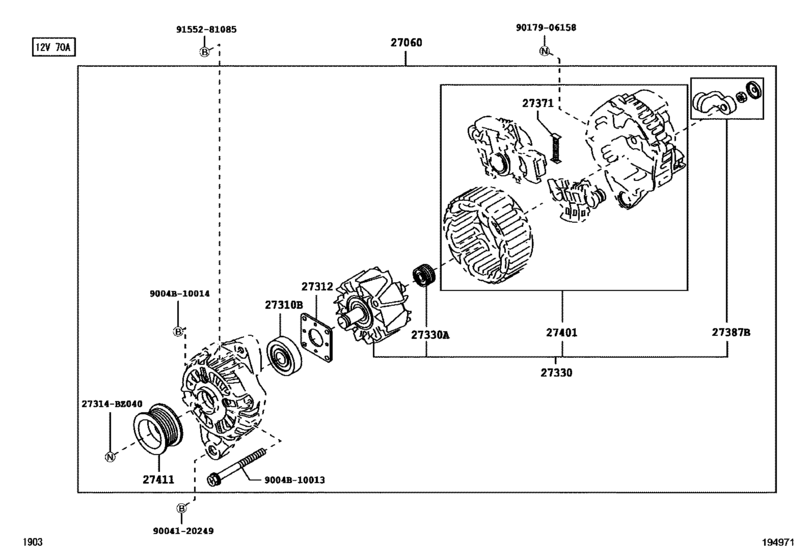

Alternator ([04.2017 - ] (1704- )3NRVE) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27060
|
27060
27060-BZ360
Alternator Assy, W/regulator
[04.2017 -] 3NRVE..B101 |
27060-BZ360 |
— | ||
|
27310B
|
27310B
9004B-37015
Bearing(For Alternator Drive End Frame)
[04.2017 -] 1KRVE,3NRVE..B10# |
9004B-37015 |
— | ||
|
27312
|
27312
27312-BZ040
Plate, Retainer
[04.2017 -] 1KRVE,3NRVE..B10# |
27312-BZ040 |
— | ||
|
27330
|
27330
27330-BZ070
Rotor Assy, Alternator
[04.2017 -] 1KRVE,3NRVE..B10# |
27330-BZ070 |
— | ||
|
27330A
|
27330A
9004B-37014
Bearing(For Alternator Rotor)
[04.2017 -] 1KRVE,3NRVE..B10# |
9004B-37014 |
— | ||
|
27371
|
27371
27371-BZ020
Brush, Alternator
[04.2017 -] 1KRVE,3NRVE..B10# |
27371-BZ020 |
— | ||
|
27387B
|
27387B
27387-BZ060
Insulator, Alternator Terminal
[04.2017 -] 1KRVE,3NRVE..B10# |
27387-BZ060 |
— | ||
|
27401
|
27401
27401-BZ030
Stator Sub-Assy Alternator W/rectifier
[04.2017 -] 3NRVE..B101 |
27401-BZ030 |
— | ||
|
27411
|
27411
27411-BZ110
Pulley, Alternator
[04.2017 -] 3NRVE..B101 |
27411-BZ110 |
— | ||
|
9004B10013
|
9004B10013
9004B-10013
New Genuine Part
|
9004B-10013 |
— | ||
|
9004B10014
|
9004B10014
9004B-10014
New Genuine Part
|
9004B-10014 |
— | ||
|
27314BZ040
|
27314BZ040
27314-BZ040
New Genuine Part
|
27314-BZ040 |
— | ||
|
9004120249
|
9004120249
90041-20249 New Genuine Part |
90041-20249 |
US $3.06 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9155281085
|
9155281085
91552-81085 Bolt(For Alternator) |
91552-81085 |
US $3.76 |
