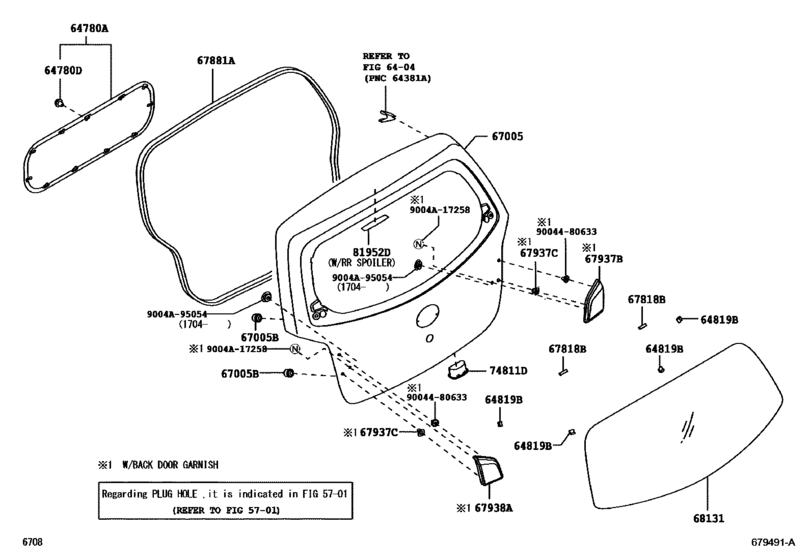

Back Door Panel & Glass ([12.2012 - ] (1212- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64780A
|
64780A
64780-BZ100-B1
Panel Assy, Back Door Trim
[04.2017 -] B10# DK.GRAY,TRIM1# |
64780-BZ100-B1 |
— | ||
|
64780D
|
64780D
67771-BZ060
Clip(For Quarter Trim Front Panel)
[04.2017 -] B10# |
67771-BZ060 |
— | ||
|
64819B
|
64819B
64819-B2010 Spacer, Back Window Glass, No.2[04.2017 -] B10# |
64819-B2010 |
US $4.30 |
||
|
67005
|
67005
67005-BZB30
Panel Sub-Assy, Back Door
[04.2017 -] B101;B100..HIS..WIGO |
67005-BZB30 |
— | ||
|
67005
|
67005
67005-BZC00
Panel Sub-Assy, Back Door
[04.2017 -] B101 GRADE PACKAGE-TRD,W/O RR WIPER |
67005-BZC00 |
— | ||
|
67005B
|
67005B
9004A-54015 Cushion, Back Door Stopper[04.2017 -] B10# |
9004A-54015 |
US $0.91 |
||
|
67818B
|
67818B
64818-BZ050 Spacer, Back Door Glass, No.1[04.2017 -] B10# |
64818-BZ050 |
US $1.24 |
||
|
67881A
|
67881A
67881-BZ150
Weatherstrip, Back Door
[04.2017 -] B10# |
67881-BZ150 |
— | ||
|
67937B
|
67937B
76803-BZ060
Garnish, Back Door Side, Rh
[04.2017 -] B101;B100..HIS..WIGO |
76803-BZ060 |
— | ||
|
67937C
|
67937C
90044-68278 Clip(For Back Door Side Garnish)[04.2017 -] B101;B100..HIS..WIGO |
90044-68278 |
US $3.05 |
||
|
67938A
|
67938A
76804-BZ040
Garnish, Back Door Side, Lh
[04.2017 -] B101;B100..HIS..WIGO |
76804-BZ040 |
— | ||
|
68131
|
68131
68131-BZ280
Glass, Back Door
[04.2017 -] B10#..AGYA W/O DEFOGGER |
68131-BZ280 |
— | ||
|
74811D
|
74811D
74811-BZ030 Handle, Door PullDOOR PULL [04.2017 -] B10# |
74811-BZ030 |
from US $7.73 |
||
|
81952D
|
81952D
81977-BZ090
Cover, Rear Lamp
[04.2017 -] B10#..HIS; B101 GRADE PACKAGE-TRD |
81977-BZ090 |
— | ||
|
9004A95054
|
9004A95054
9004A-95054
New Genuine Part
|
9004A-95054 |
— | ||
|
9004480633
|
9004480633
90044-80633 New Genuine Part |
90044-80633 |
US $3.58 |
