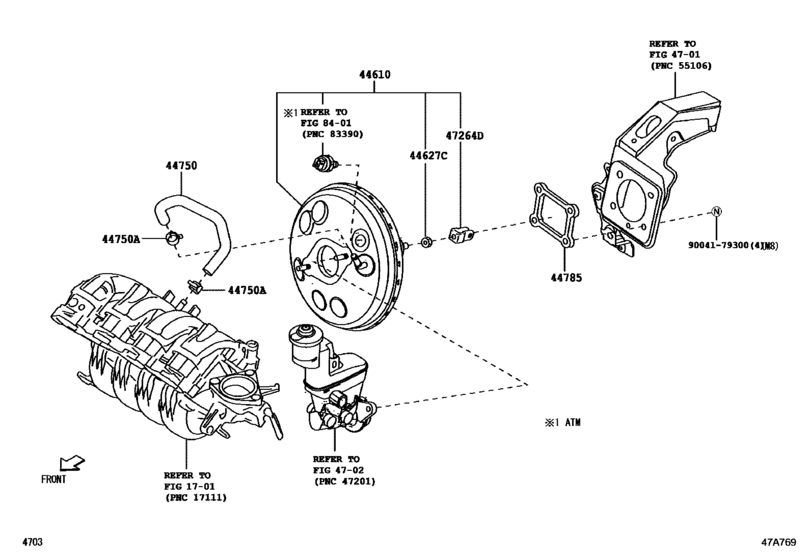

Brake Booster & Vacuum Tube ([04.2017 - ] (1704- )B101) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-BZ760
Booster Assy, Brake
[04.2017 -] B10#..MTM..AGYA |
44610-BZ760 |
— | ||
|
44627C
|
44627C
9004A-17214
Nut, Booster Sleeve Cylinder
[04.2017 -] B10# |
9004A-17214 |
— | ||
|
44750
|
44750
44750-BZ280
Hose Assy, Vacuum
[04.2017 -] B101 |
44750-BZ280 |
— | ||
|
44750A
|
44750A
90044-67161 Clip(For Vacuum Hose)[04.2017 -] B10# |
90044-67161 |
US $2.87 |
||
|
44785
|
44785
47275-BZ010 Gasket, Brake Booster[04.2017 -] B10# |
47275-BZ010 |
from US $1.77 |
||
| replacement | |||||
|
44785
|
44785
47278-87703 Gasket, Brake Booster[04.2017 -] B10# |
47278-87703 |
US $8.96 |
||
|
47264D
|
47264D
47264-BZ110
Clevis, Brake Master Cylinder Push Rod
[04.2017 -] B10# |
47264-BZ110 |
— | ||
|
9004179300
|
9004179300
90041-79300 Nut, Booster |
90041-79300 |
US $2.33 |
||
