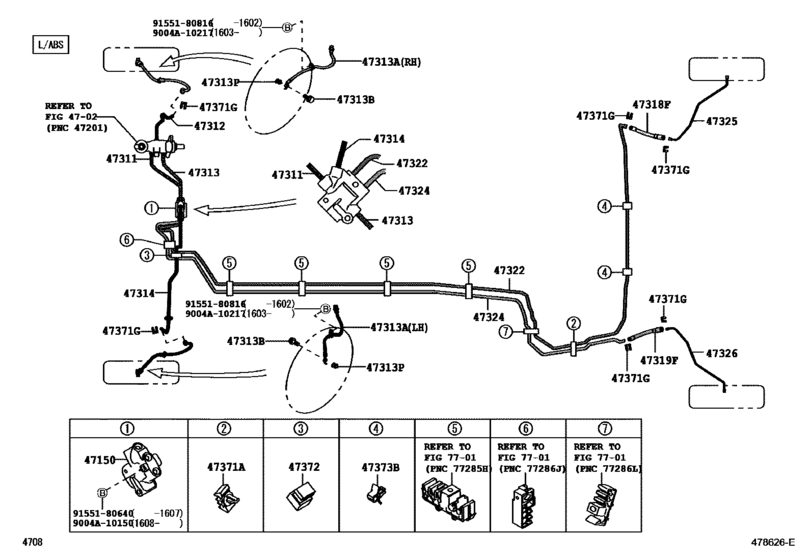

Brake Tube & Clamp ([12.2012 - ] L/ABS (1212- )AGYA) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47150
|
47150
47150-BZ060
Valve Assy, Proportioning
[04.2017 -] B10#..AGYA |
47150-BZ060 |
— | ||
|
47311
|
47311
47311-BZ490
Tube, Front Brake, No.1
[04.2017 -] B10#..AGYA |
47311-BZ490 |
— | ||
|
47311
|
47311
47311-BZ560
Tube, Front Brake, No.1
[04.2017 -] B10#..AGYA W/ABS |
47311-BZ560 |
— | ||
|
47312
|
47312
47312-BZ510
Tube, Front Brake, No.2
[04.2017 -] B10#..AGYA |
47312-BZ510 |
— | ||
|
47312
|
47312
47312-BZ570
Tube, Front Brake, No.2
[04.2017 -] B100..WIGO; B10#..AGYA W/ABS |
47312-BZ570 |
— | ||
|
47313
|
47313
47313-BZ470
Tube, Front Brake, No.3
[04.2017 -] B10#..AGYA |
47313-BZ470 |
— | ||
|
47313
|
47313
47313-BZ520
Tube, Front Brake, No.3
[04.2017 -] B10#..AGYA W/ABS |
47313-BZ520 |
— | ||
|
47313A
|
47313A
9004A-94134
Hose, Flexible, No.1(For Front)
[04.2017 -] B10# RH |
9004A-94134 |
— | ||
|
47313A
|
47313A
9004A-94135
Hose, Flexible, No.1(For Front)
[04.2017 -] B10# LH |
9004A-94135 |
— | ||
|
47313B
|
47313B
90401-10058 Bolt, Union(For Front Flexible Hose)[04.2017 -] B10# |
90401-10058 |
from US $3.94 |
||
|
47313P
|
47313P
47389-50020 Gasket(For Front Flexible Hose)[04.2017 -] B10# |
47389-50020 |
from US $4.83 |
||
|
47314
|
47314
47314-BZ380
Tube, Front Brake, No.4
[04.2017 -] B10#..AGYA |
47314-BZ380 |
— | ||
|
47314
|
47314
47314-BZ580
Tube, Front Brake, No.4
[04.2017 -] B10#..AGYA W/ABS |
47314-BZ580 |
— | ||
|
47318F
|
47318F
9004A-94136
Hose, Flexible(For Rear Rh)
[04.2017 -] B10# |
9004A-94136 |
— | ||
|
47319F
|
47319F
9004A-94136
Hose, Flexible(For Rear Rh)
[04.2017 -] B10# |
9004A-94136 |
— | ||
|
47322
|
47322
47322-BZ360
Tube, Rear Brake, No.2
[04.2017 -] B10#..AGYA |
47322-BZ360 |
— | ||
|
47322
|
47322
47322-BZ370
Tube, Rear Brake, No.2
[04.2017 -] B100..WIGO; B10#..AGYA W/ABS |
47322-BZ370 |
— | ||
|
47324
|
47324
47324-BZ430
Tube, Rear Brake, No.4
[04.2017 -] B10#..AGYA |
47324-BZ430 |
— | ||
|
47324
|
47324
47324-BZ440
Tube, Rear Brake, No.4
[04.2017 -] B100..WIGO; B10#..AGYA W/ABS |
47324-BZ440 |
— | ||
|
47325
|
47325
47325-BZ150
Tube, Rear Brake, No.5
[04.2017 -] B10# |
47325-BZ150 |
— | ||
|
47326
|
47326
47326-BZ170
Tube, Rear Brake, No.6
[04.2017 -] B10# |
47326-BZ170 |
— | ||
|
47371A
|
47371A
90044-64485 Clamp, Front Drive Vacuum Tube, No.1[04.2017 -] B10#..AGYA |
90044-64485 |
US $3.64 |
||
|
47371G
|
47371G
90044-65441 Clamp, Brake Tube, No.6[04.2017 -] B10# |
90044-65441 |
US $2.33 |
||
|
47372
|
47372
9004A-46299 Clamp, Brake Tube, No.1[04.2017 -] B10# |
9004A-46299 |
US $2.77 |
||
|
47373B
|
47373B
90044-64659 Clamp, Brake Tube, No.1[04.2017 -] B10# |
90044-64659 |
US $2.33 |
||
|
9004A10217
|
9004A10217
9004A-10217
Bolt(For Clutch Master Cylinder Setting)
|
9004A-10217 |
— | ||
|
9155180640
|
9155180640
91551-80640 New Genuine Part |
91551-80640 |
US $1.43 |
||
|
9155180816
|
9155180816
91551-80816 Bolt(For Manual Transmission Oil Separator) |
91551-80816 |
from US $0.78 |
