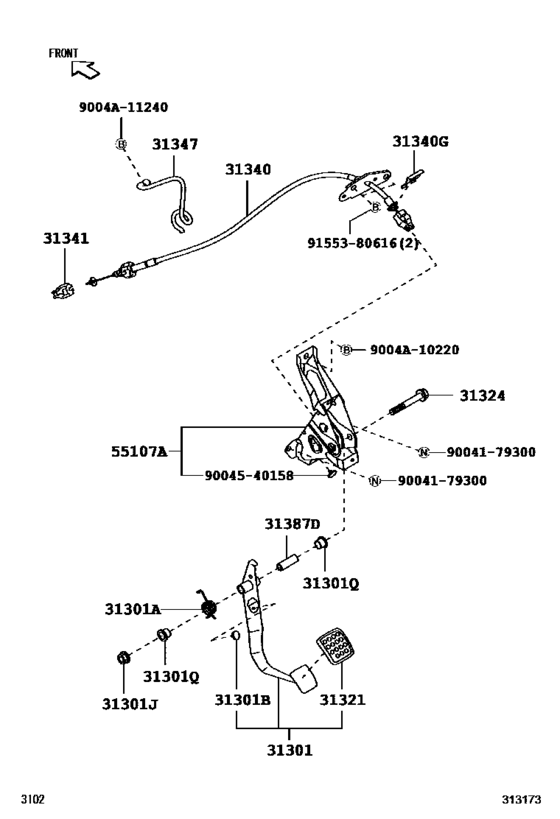

Clutch Pedal & Flexible Hose ([04.2017 - ] (1704- )B101..MTM) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31310-BZ290
Pedal Sub-Assy, Clutch
[04.2017 -] B101..MTM |
31310-BZ290 |
— | ||
|
31301A
|
31301A
31394-BZ130
Spring(For Clutch Pedal)
[04.2017 -] B10#..MTM |
31394-BZ130 |
— | ||
|
31301B
|
31301B
90045-40226 Cushion(For Stop Lamp Switch)[04.2017 -] B101..MTM |
90045-40226 |
US $1.60 |
||
|
31301J
|
31301J
9004A-17260 Nut(For Clutch Pedal Stopper)[04.2017 -] B10#..MTM |
9004A-17260 |
US $1.75 |
||
|
31301Q
|
31301Q
9004A-38021 Bush(For Clutch Pedal Spring)[04.2017 -] B10#..MTM |
9004A-38021 |
US $2.69 |
||
|
31321
|
31321
31321-BZ050
Pad, Clutch Pedal
[04.2017 -] B10#..MTM |
31321-BZ050 |
— | ||
|
31324
|
31324
91551-80865 Shaft, Clutch Pedal[04.2017 -] B10#..MTM |
91551-80865 |
US $1.79 |
||
|
31340
|
31340
31340-BZ200
Cable Assy, Clutch Release
[04.2017 -] B101..MTM |
31340-BZ200 |
— | ||
|
31340G
|
31340G
90044-68143 Clip(For Clutch Release Cable)[04.2017 -] B10#..MTM |
90044-68143 |
US $4.37 |
||
|
31341
|
31341
31341-BZ130
Bracket, Clutch Cable
[04.2017 -] B10#..MTM |
31341-BZ130 |
— | ||
|
31347
|
31347
31347-BZ150
Clamp, Clutch Cable
[04.2017 -] B101..MTM |
31347-BZ150 |
— | ||
|
31387D
|
31387D
90045-60615 Spacer(For Clutch Release Sector)[04.2017 -] B10#..MTM |
90045-60615 |
US $4.51 |
||
|
55107A
|
55107A
55107-BZ230
Support Sub-Assy, Clutch Pedal
[04.2017 -] B101..MTM |
55107-BZ230 |
— | ||
|
9004A11240
|
9004A11240
9004A-11240
New Genuine Part
|
9004A-11240 |
— | ||
|
9004179300
|
9004179300
90041-79300 Nut, Booster |
90041-79300 |
US $2.33 |
||
|
9004540158
|
9004540158
90045-40158 Cushion, No.1(For Clutch Pedal) |
90045-40158 |
US $1.97 |
||
|
9155380616
|
9155380616
91553-80616 New Genuine Part |
91553-80616 |
US $1.25 |
