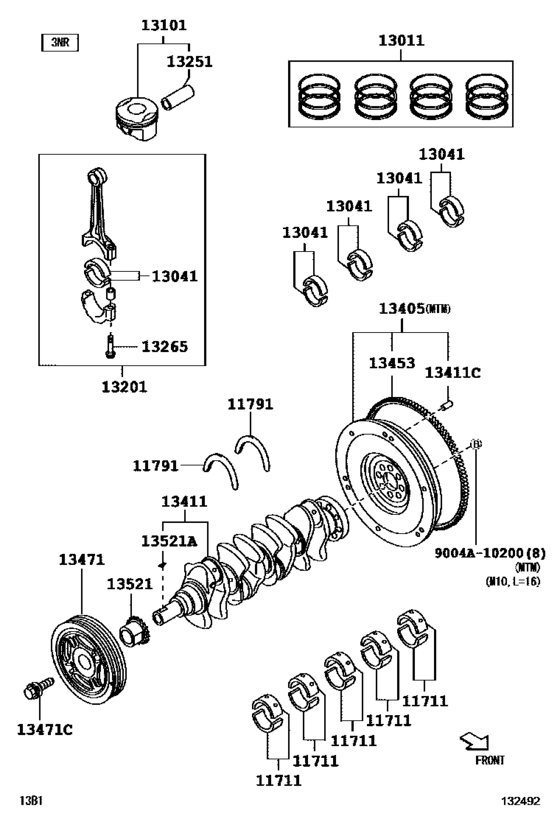

Crankshaft & Piston ([04.2017 - ] (1704- )3NRVE) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11711
|
11711
11701-0Y030-02 Bearing, Crankshaft[04.2017 -] 3NRVE..B101 MARK2 |
11701-0Y030-02 |
from US $15.12 |
||
|
11711
|
11711
11701-0Y030-03 Bearing, Crankshaft[04.2017 -] 3NRVE..B101 MARK3 |
11701-0Y030-03 |
US $15.54 |
||
|
11711
|
11711
11701-0Y030-04
Bearing, Crankshaft
[04.2017 -] 3NRVE..B101 MARK4 |
11701-0Y030-04 |
— | ||
|
11711
|
11711
11701-0Y030-05
Bearing, Crankshaft
[04.2017 -] 3NRVE..B101 MARK5 |
11701-0Y030-05 |
— | ||
|
11791
|
11791
11791-B0010 Washer, Crankshaft Thrust, Upper[04.2017 -] 3NRVE..B101 STD |
11791-B0010 |
from US $15.88 |
||
|
13011
|
13011
13011-0Y030 Ring Set, Piston[04.2017 -] 3NRVE..B101 STD |
13011-0Y030 |
from US $80.20 |
||
|
13041
|
13041
13041-0Y040-01 Bearing, Connecting Rod[04.2017 -] 3NRVE..B101 MARK1 |
13041-0Y040-01 |
US $16.42 |
||
|
13041
|
13041
13041-0Y040-02 Bearing, Connecting Rod[04.2017 -] 3NRVE..B101 MARK2 |
13041-0Y040-02 |
US $10.41 |
||
|
13041
|
13041
13041-0Y040-03 Bearing, Connecting Rod[04.2017 -] 3NRVE..B101 MARK3 |
13041-0Y040-03 |
US $11.55 |
||
|
13101
|
13101
13101-BZ270
Piston Sub-Assy, W/pin
[04.2017 -] 3NRVE..B101 STD |
13101-BZ270 |
— | ||
|
13201
|
13201
13201-B9090
Rod Sub-Assy, Connecting
[04.2017 -] 3NRVE..B101 |
13201-B9090 |
— | ||
|
13251
|
13251
13251-0Y030 Pin, Piston[04.2017 -] 3NRVE..B101 |
13251-0Y030 |
US $6.52 |
||
|
13265
|
13265
13265-21020 Bolt, Connecting Rod[04.2017 -] 3NRVE..B101 |
13265-21020 |
from US $2.83 |
||
|
13405
|
13405
13405-BZ150
Flywheel Sub-Assy
[04.2017 -] 3NRVE..B101..MTM |
13405-BZ150 |
— | ||
|
13411
|
13411
13401-BZ060
Crankshaft
[04.2017 -] 3NRVE..B101 |
13401-BZ060 |
— | ||
|
13411C
|
13411C
9004A-25035
Pin, Straight(For Crankshaft)
[04.2017 -] 3NRVE..B101..MTM |
9004A-25035 |
— | ||
|
13453
|
13453
13453-87Z03 Gear, Flywheel Ring[04.2017 -] 3NRVE..B101..MTM |
13453-87Z03 |
US $48.05 |
||
|
13471
|
13471
13470-0Y020
Pulley, Crankshaft
[04.2017 -] 3NRVE..B101 |
13470-0Y020 |
— | ||
|
13471C
|
13471C
90119-T0444
Bolt(For Crankshaft Pulley Set)
[04.2017 -] 3NRVE..B101 |
90119-T0444 |
— | ||
| replacement | |||||
|
13471C
|
13471C
90119-T0529
Bolt(For Crankshaft Pulley Set)
[04.2017 -] 3NRVE..B101 |
90119-T0529 |
— | ||
|
13521
|
13521
13521-0Y040 Gear Or Sprocket, Crankshaft Timing[04.2017 -] 3NRVE..B101 |
13521-0Y040 |
US $18.39 |
||
|
13521A
|
13521A
90280-04001 Pin, Straight(For Crankshaft)[04.2017 -] 3NRVE..B101 |
90280-04001 |
from US $0.82 |
||
|
9004A10200
|
9004A10200
9004A-10200 Bolt, Hexagon(For Drive Plate Setting) |
9004A-10200 |
from US $0.70 |
||
