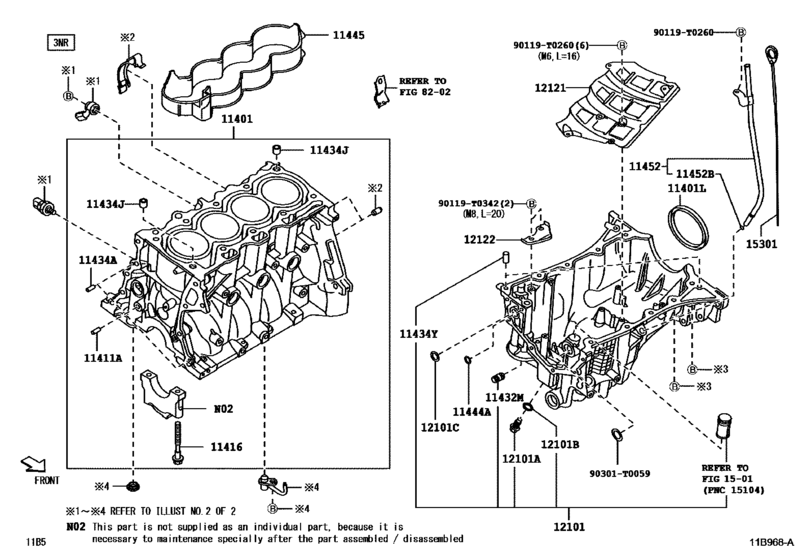

Cylinder Block ([04.2017 - ] (1704- )3NRVE) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11410-B9030
Block Sub-Assy, Cylinder
[04.2017 -] 3NRVE..B101 |
11410-B9030 |
— | ||
|
11401L
|
11401L
90311-T0074 Seal, Engine Rear Oil[04.2017 -] 3NRVE..B101 |
90311-T0074 |
from US $23.35 |
||
|
11411A
|
11411A
90250-10030 Pin, Straight(For Clutch Housing Set)[04.2017 -] 3NRVE..B101 |
90250-10030 |
from US $1.27 |
||
|
11416
|
11416
90910-T2013
Bolt(For Crankshaft Bearing Cap Set)
[04.2017 -] 3NRVE..B101 |
90910-T2013 |
— | ||
|
11432M
|
11432M
90404-19011 Union(For Oil Filter)[04.2017 -] 3NRVE..B101 |
90404-19011 |
US $4.54 |
||
|
11434A
|
11434A
90250-04097 Pin, Straight(For Camshaft Housing Rh)[04.2017 -] 3NRVE..B101 L=12,OD=4.0 |
90250-04097 |
US $0.90 |
||
|
11434J
|
11434J
90253-13017 Pin, Ring W/head[04.2017 -] 3NRVE..B101 |
90253-13017 |
from US $1.31 |
||
|
11434Y
|
11434Y
90250-08120 Pin, Straight, No.1[04.2017 -] 3NRVE..B101 |
90250-08120 |
from US $0.99 |
||
|
11444A
|
11444A
90301-T0055
Ring, O
[04.2017 -] 3NRVE..B101 |
90301-T0055 |
— | ||
|
11445
|
11445
11445-0Y020 Spacer, Cylinder Block Water Jacket[04.2017 -] 3NRVE..B101 |
11445-0Y020 |
US $15.56 |
||
|
11452
|
11452
11409-BZ130
Guide, Oil Level Gage
[04.2017 -] 3NRVE..B101 |
11409-BZ130 |
— | ||
|
11452B
|
11452B
9004A-30058
Ring, O(For Oil Level Gage Guide)
[04.2017 -] 1KRVE,3NRVE..B10# |
9004A-30058 |
— | ||
|
12101
|
12101
12101-BZ110
Pan Sub-Assy, Oil
[04.2017 -] 3NRVE..B101 |
12101-BZ110 |
— | ||
|
12101A
|
12101A
9004A-34015 Plug(For Oil Pan Drain)[04.2017 -] 3NRVE..B101 |
9004A-34015 |
from US $2.34 |
||
|
12101B
|
12101B
9004A-43022 Gasket(For Oil Pan Drain Plug)[04.2017 -] 3NRVE..B101 |
9004A-43022 |
from US $0.59 |
||
|
12101C
|
12101C
90301-T0057
Ring, O(For Oil Pan)
[04.2017 -] 3NRVE..B101 |
90301-T0057 |
— | ||
|
12121
|
12121
12121-0Y030
Plate, Oil Pan Baffle, No.1
[04.2017 -] 3NRVE..B101 |
12121-0Y030 |
— | ||
|
12122
|
12122
12122-0Y010
Plate, Oil Pan Baffle, No.2
[04.2017 -] 3NRVE..B101 |
12122-0Y010 |
— | ||
|
15301
|
15301
15301-BZ110
Gage Sub-Assy, Oil Level
[04.2017 -] 3NRVE..B101 |
15301-BZ110 |
— | ||
|
90119T0260
|
90119T0260
90119-T0260
New Genuine Part
|
90119-T0260 |
— | ||
|
90119T0342
|
90119T0342
90119-T0342
Bolt (For Transmission Control Cable Bracket)
|
90119-T0342 |
— | ||
|
90301T0059
|
90301T0059
90301-T0059
Ring, O(For Oil Pump)
|
90301-T0059 |
— |
