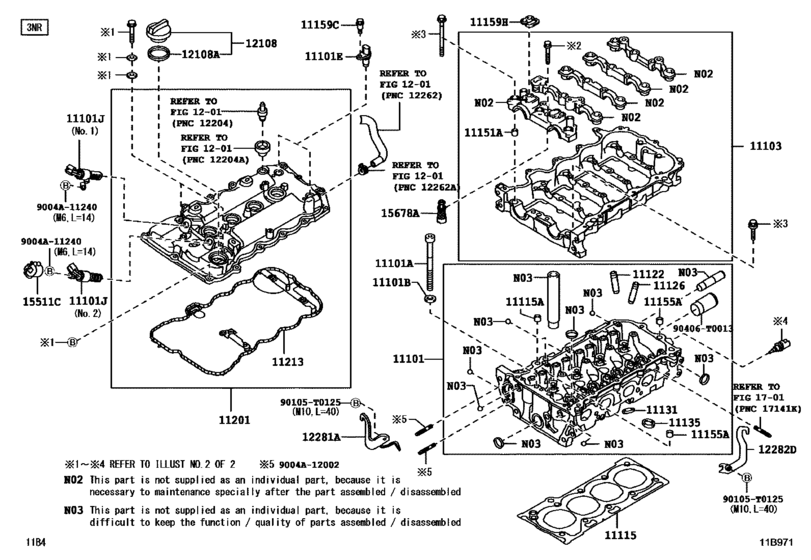

Cylinder Head ([04.2017 - ] (1704- )3NRVE) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-B9630
Head Sub-Assy, Cylinder
[04.2017 -] 3NRVE..B101 |
11101-B9630 |
— | ||
|
11101A
|
11101A
90910-T2012
Bolt(For Cylinder Head Set)
[04.2017 -] 3NRVE..B101 |
90910-T2012 |
— | ||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[04.2017 -] 3NRVE..B101 |
90201-10344 |
from US $0.97 |
||
|
11101E
|
11101E
90919-T5002
Sensor, Cam Position
[04.2017 -] 3NRVE..B101 |
90919-T5002 |
— | ||
|
11101J
|
11101J
15330-0Y050 Valve Assy, Camshaft Timing Oil Control[04.2017 -] 3NRVE..B101 NO.1 |
15330-0Y050 |
US $65.57 |
||
|
11101J
|
11101J
15330-0Y060 Valve Assy, Camshaft Timing Oil Control[04.2017 -] 3NRVE..B101 NO.2 |
15330-0Y060 |
US $66.63 |
||
|
11103
|
11103
11103-0Y040 Housing Sub-Assy, Camshaft[04.2017 -] 3NRVE..B101 |
11103-0Y040 |
US $163.53 |
||
|
11115
|
11115
11115-0Y030 Gasket, Cylinder Head[04.2017 -] 3NRVE..B101 |
11115-0Y030 |
US $27.93 |
||
|
11115A
|
11115A
90253-12002 Pin, Ring[04.2017 -] 3NRVE..B101 |
90253-12002 |
from US $0.63 |
||
|
11122
|
11122
11122-31041 Bush, Intake Valve Guide[04.2017 -] 3NRVE..B101 STD |
11122-31041 |
US $7.02 |
||
|
11122
|
11122
11123-31041 Bush, Intake Valve Guide[04.2017 -] 3NRVE..B101 O/S 0.05 |
11123-31041 |
US $7.02 |
||
|
11126
|
11126
11122-31041 Bush, Intake Valve Guide[04.2017 -] 3NRVE..B101 STD |
11122-31041 |
US $7.02 |
||
|
11126
|
11126
11123-31041 Bush, Intake Valve Guide[04.2017 -] 3NRVE..B101 O/S 0.05 |
11123-31041 |
US $7.02 |
||
|
11131
|
11131
11132-47010 Seat, Intake ValveINTAKE VALVE [04.2017 -] 3NRVE..B101 O/S 0.03 |
11132-47010 |
US $9.46 |
||
|
11135
|
11135
11136-47010 Seat, Exhaust ValveEXHAUST VALVE [04.2017 -] 3NRVE..B101 O/S 0.03 |
11136-47010 |
US $4.51 |
||
|
11151A
|
11151A
90253-13005 Pin, Ring(For Camshaft Bearing Cap Setting)[04.2017 -] 3NRVE..B101 L=12.5,OD=8 |
90253-13005 |
from US $0.53 |
||
|
11155A
|
11155A
90253-11005 Pin, Ring(For Camshaft Bearing Cap Setting)[04.2017 -] 3NRVE..B101 |
90253-11005 |
US $1.08 |
||
|
11159C
|
11159C
90105-T0347 Bolt(For Head To Camshaft Bearing Cap)[04.2017 -] 3NRVE..B101 |
90105-T0347 |
US $0.73 |
||
|
11159H
|
11159H
11159-0Y020 Gasket, Camshaft Bearing Cap Oil Hole[04.2017 -] 3NRVE..B101 |
11159-0Y020 |
US $6.09 |
||
|
11201
|
11201
11201-BZ110
Cover Sub-Assy, Cylinder Head
[04.2017 -] 3NRVE..B101 |
11201-BZ110 |
— | ||
|
11213
|
11213
11213-BZ090
Gasket, Cylinder Head Cover
[04.2017 -] 3NRVE..B101 |
11213-BZ090 |
— | ||
|
12108
|
12108
12180-0H020 Cap Sub-Assy, Oil Filler[04.2017 -] 3NRVE..B101 |
12180-0H020 |
US $9.10 |
||
|
12108A
|
12108A
90080-43027 Gasket(For Oil Filler Cap)[04.2017 -] 3NRVE..B101 |
90080-43027 |
US $1.52 |
||
|
12281A
|
12281A
12281-0Y070
Hanger, Engine, No.1
[04.2017 -] 3NRVE..B101 |
12281-0Y070 |
— | ||
|
12282D
|
12282D
12282-BZ140
Hanger, Engine, No.2
[04.2017 -] 3NRVE..B101 |
12282-BZ140 |
— | ||
|
15511C
|
15511C
15511-BZ010
Cover, Oil Control Valve
[04.2017 -] 3NRVE..B101 |
15511-BZ010 |
— | ||
|
15678A
|
15678A
15678-0Y010
Filter, Oil Control Valve
[04.2017 -] 3NRVE..B101 |
15678-0Y010 |
— | ||
|
9004A11240
|
9004A11240
9004A-11240
New Genuine Part
|
9004A-11240 |
— | ||
|
90105T0125
|
90105T0125
90105-T0125
Bolt(For Alternator)
|
90105-T0125 |
— |
