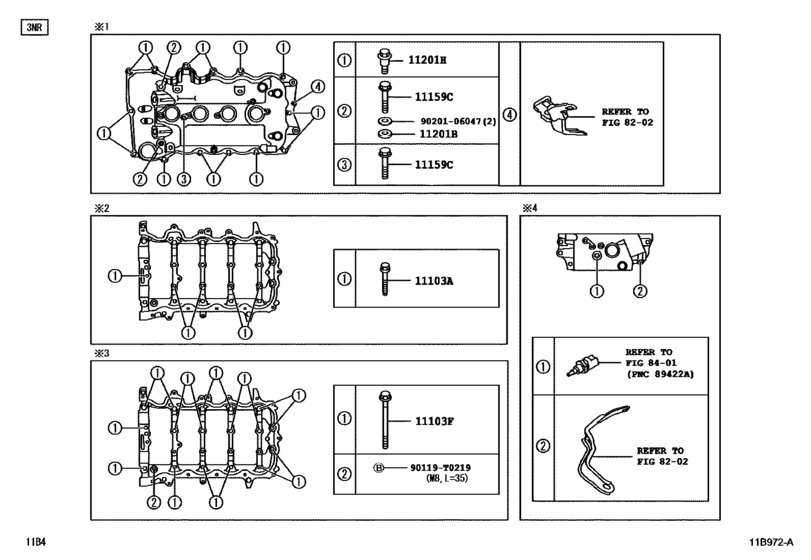

Cylinder Head ([04.2017 - ] (1704- )3NRVE) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11103A
|
11103A
90119-T0443
Bolt(For Camshaft Housing Set)
[04.2017 -] 3NRVE..B101 |
90119-T0443 |
— | ||
|
11103F
|
11103F
90105-T0271
Bolt(For Camshaft Housing Set)
[04.2017 -] 3NRVE..B101 |
90105-T0271 |
— | ||
|
11159C
|
11159C
90105-T0347 Bolt(For Head To Camshaft Bearing Cap)[04.2017 -] 3NRVE..B101 |
90105-T0347 |
US $0.73 |
||
|
11201B
|
11201B
90210-T0002
Washer, Seal(For Cylinder Head Cover)
[04.2017 -] 3NRVE..B101 |
90210-T0002 |
— | ||
|
11201H
|
11201H
90109-T0055
Bolt(For Cylinder Head Cover)
[04.2017 -] 3NRVE..B101 |
90109-T0055 |
— | ||
|
90119T0219
|
90119T0219
90119-T0219
New Genuine Part
|
90119-T0219 |
— | ||
|
9020106047
|
9020106047
90201-06047 New Genuine Part |
90201-06047 |
US $1.43 |
