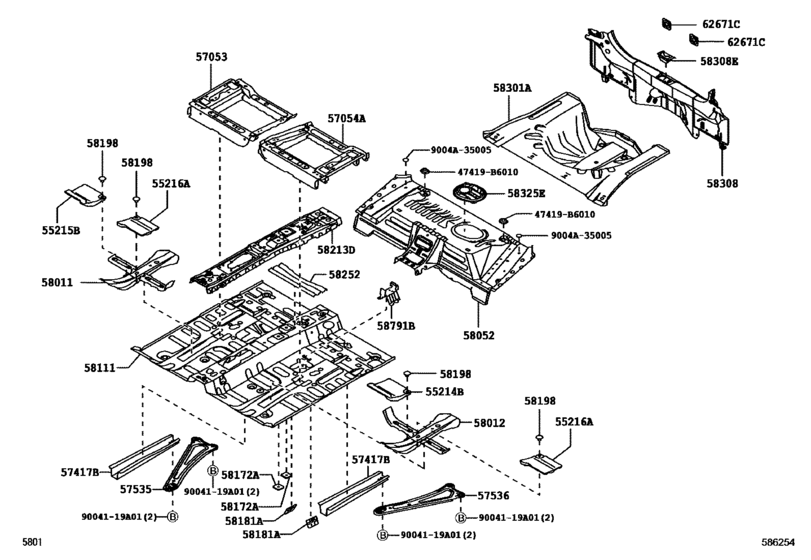

Floor Pan & Lower Back Panel ([04.2017 - ] (1704- )) Diagram Toyota AGYA/ WIGO
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- B101
- grade
- HIS
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- Model
- AGYA
- From
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- AGYA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55214B
|
55214B
55214-BZ060
Pad, Dash Panel Insulator, No.2
[04.2017 -] B10# |
55214-BZ060 |
— | ||
|
55215B
|
55215B
58571-BZ020
Pad, Dash Panel Insulator, No.3
[04.2017 -] B10# |
58571-BZ020 |
— | ||
|
55216A
|
55216A
58572-BZ020
Pad, Dash Panel Insulator, No.3
[04.2017 -] B10# |
58572-BZ020 |
— | ||
|
57053
|
57053
57053-BZ040
Reinforcement Sub-Assy, Front Floor Cross Member, Rh
[04.2017 -] B10# |
57053-BZ040 |
— | ||
|
57054A
|
57054A
57054-BZ070
Reinforcement Sub-Assy, Front Floor Cross Member, Lh
[04.2017 -] B10# |
57054-BZ070 |
— | ||
|
57417B
|
57417B
57417-BZ070
Reinforcement, Front Floor Under
[04.2017 -] B10# |
57417-BZ070 |
— | ||
|
57535
|
57535
57535-BZ040
Brace, Front Floor, Rh
[04.2017 -] B10# |
57535-BZ040 |
— | ||
|
57536
|
57536
57536-BZ040
Brace, Front Floor, Lh
[04.2017 -] B10# |
57536-BZ040 |
— | ||
|
58011
|
58011
58025-BZ030
Panel Sub-Assy, Front Floor Side, Rh
[04.2017 -] B10#..AGYA |
58025-BZ030 |
— | ||
|
58012
|
58012
58026-BZ030
Panel Sub-Assy, Front Floor Side, Lh
[04.2017 -] B10#..AGYA |
58026-BZ030 |
— | ||
|
58052
|
58052
58201-BZ050
Pan Sub-Assy, Center Floor
[04.2017 -] B10# |
58201-BZ050 |
— | ||
|
58111
|
58111
58111-BZ320
Pan, Front Floor
[04.2017 -] B10# |
58111-BZ320 |
— | ||
|
58172A
|
58172A
46521-BZ030
Plate, Parking Brake Mounting
[04.2017 -] B10# |
46521-BZ030 |
— | ||
|
58181A
|
58181A
58182-BZ050
Retainer, Seat Rail, Front
[04.2017 -] B10# |
58182-BZ050 |
— | ||
|
58198
|
58198
9004A-46131-B0
Clip
[04.2017 -] B10# DK.GRAY |
9004A-46131-B0 |
— | ||
|
58213D
|
58213D
58213-BZ150
Reinforcement, Center Floor Panel
[04.2017 -] B10#..MTM |
58213-BZ150 |
— | ||
|
58252
|
58252
58252-BZ010
Brace, Floor Panel, Rear
[04.2017 -] B10# |
58252-BZ010 |
— | ||
|
58301A
|
58301A
58301-BZ270
Panel Sub-Assy, Rear Floor
[04.2017 -] B10# |
58301-BZ270 |
— | ||
|
58308
|
58308
58308-BZ150
Panel Sub-Assy, Body Lower Back, Inner
[04.2017 -] B10# |
58308-BZ150 |
— | ||
|
58308E
|
58308E
64716-BZ040-B0
Cover, Hole(For Lower Back)
[04.2017 -] B10# DK.GRAY,TRIM1# |
64716-BZ040-B0 |
— | ||
|
58325E
|
58325E
58325-BZ050
Cover, Rear Floor Service Hole
[04.2017 -] B10# |
58325-BZ050 |
— | ||
|
58791B
|
58791B
58791-BZ050
Carrier, Jack
[04.2017 -] B10# |
58791-BZ050 |
— | ||
|
62671C
|
62671C
62671-BZ020 Cover, Lower Back PanelLOWER BACK PANEL [04.2017 -] B10# |
62671-BZ020 |
US $5.56 |
||
|
9004A35005
|
9004A35005
9004A-35005 Plug, Hole(For Floor Pan) |
9004A-35005 |
US $2.15 |
||
|
47419B6010
|
47419B6010
47419-B6010
Plug, Hole(for Front Brake)
|
47419-B6010 |
— | ||
|
9004119A01
|
9004119A01
90041-19A01 Bolt, Instrument Panel |
90041-19A01 |
US $2.18 |
